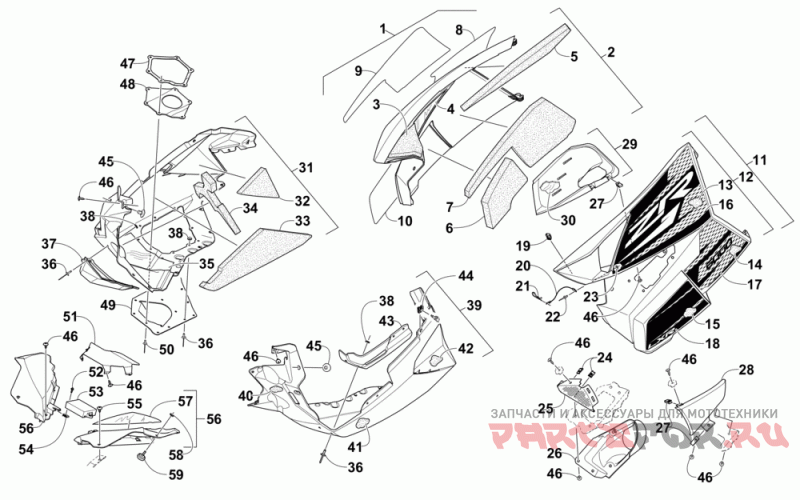

Поддон и обтекатели

Arctic Cat ZR 6000 LXR ES GREEN

Arctic Cat
#oem кодцена
1
4718-430
Panel, Side-rh W/decals (zr 6000 Lxr) (inc. 2-10)
2
3718-180
Panel, Side-rh With Foam-blk (2 Stroke) (inc. 3-7)
3
0617-626
Foam, Upper Side Panel-frt-rh
4
6606-414
Foil, Protective-middle Side Panel-rh
5
0617-628
Foam, Upper Side Panel-rear-rh
6
0617-632
Foam, Lwr Side Panel-frt-rh
7
0617-634
Foam, Lwr Side Panel-rear-rh
8
1621-572
Decal, Side Panel-upr "zr" Rh
9
1621-578
Decal, Side Panel-lwr "6000" Rh
10
1621-586
Decal, Side Panel-fwd "lxr" Rh
11
4718-431
Panel, Side-lh W/decals (zr 6000 Lxr) (inc. 12-18)
12
4718-553
Panel, Side-lh-w/foam-blk (inc. 13-15)
13
0617-629
Foam, Upper Side Panel-rear-lh
14
0617-635
Foam, Lwr Side Panel-rear-lh
15
0617-681
Foam, Lwr Side Panel-frt-lh
16
1621-573
Decal, Side Panel-upr "zr" Lh
17
1621-579
Decal, Side Panel-lwr "6000" Lh
18
1621-587
Decal, Side Panel-fwd "lxr" Lh
19
1623-637
Clip, U-nut (m5) (4 Per Pack)
20
0607-447
Трос шпильки
21
0605-283
Hairpin, Cotter (5 Per Pack)
22
8060-486
Rivet, Blind-dh Ss54 Zinc (20 Per Pack)
23
8050-127
Washer, Flat- #8 X .375 X .049 Z&y (20 Per Pack)
24
1623-052
Nut, U (2 Per Pack)
25
6606-925
Решетка заборная
26
2602-794
Duct, Intake-inner
27
1623-030
Гайка (6 шт в упаковке)
28
2602-793
Duct, Intake-outer-blk
29
1702-369
Duct, Air-clutch W/foil (inc. 30)
30
6606-694
Foil, Clutch Duct-2 Stroke
31
4718-158
Plate, Skid-blk-rh W/foam (dsi) (inc. 32-38)
32
0617-640
Foam, Skid Plate-rear-rh
33
0617-638
Foam, Skid Plate-middle-rh
34
0617-636
Foam, Skid Plate-frt-rh
35
2612-970
Foil, Skid Plate-rh
36
8061-708
Заклепка -черная (отпуск по 10 шт )
37
2612-754
Shield, Resonator-skid Plate
38
0123-802
Шайба (отпускается по 4 шт)
39
3718-789
Plate, Skid-rear Lh W/foam (inc. 40-43)
40
0617-637
Foam, Skid Plate-frt-lh
41
0617-639
Foam, Skid Plate-middle-lh
42
0617-641
Foam, Skid Plate-rear-lh
43
6606-613
Retainer, Tab-side Panel
44
2623-005
Clip, Receptacle-1/4 Turn Stud
45
6606-592
Pin, Retainer-body Plastic (2 Per Pack)
46
1623-129
Винт, 10-12x5/8 (5 шт в упаковке)
47
2612-972
Plate, Exhaust Outlet
48
2612-971
Seal, Exhaust Outlet-cwi
49
1712-963
Deflector, Exhaust Outlet-ptd Blk
50
8061-710
Rivet, Blind-lf Ss68 Black (20 Per Pack)
51
6606-940
Shield, Heat-ecu
52
8408-620
Винт M6x1.0x20 (4 шт в упаковке)
53
0730-238
Ecu, Programmed-2 Strk-9t/2.86p
54
0423-031
Nut, Speed M6 X 1.0 U-type (5 Per Pack)
55
0623-784
Винт 10-12x3/4 (отпускается по 5 шт)
56
3718-303
Panel, Filler W/foil-lh (inc. 57)
56
6606-342
Panel, Filler-rh-blk
57
6606-405
Foil, Protective-filler Panel-lh
58
2623-001
Retainer, Pushnut-3/16" Stud Optional (4 Per Pack)
59
1623-999
Screw, 1" Rnd Knob-m5x0.8x20mm Lg Optional (4 Per Pack)
