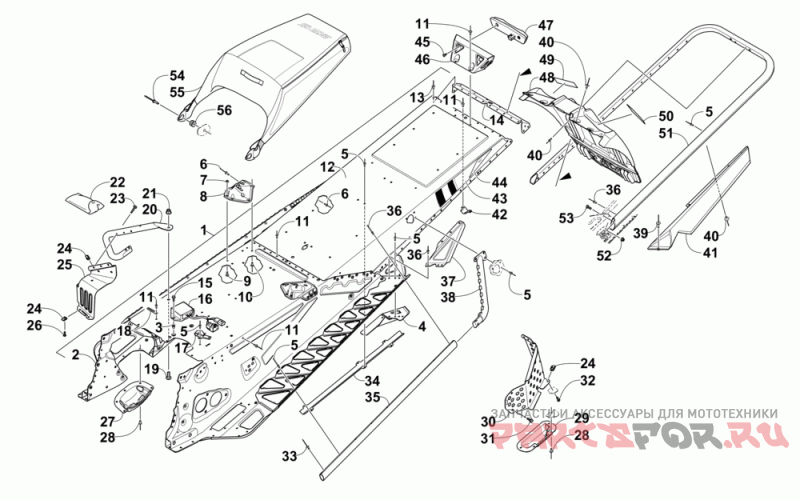

Тунель и брызговик

Arctic Cat XF 9000 SNO PRO LTD 137 ORANGE EARLY BUILD

Arctic Cat
#oem кодцена
-
2707-240
Chassis, 137 4 Strk-s/p Assy-ptd Blk
1
2707-239
Tunnel, Xf-137-s/p Assy-ptd Blk (inc. 2-14)
2
2707-238
Tunnel, Front-xf137-s/p Assy-ptd Blk (inc. 3-5)
3
1623-797
Insert, M5x0.8-al Series Als4-580-3.3 (2 Per Pack)
4
2707-244
Brkt, Rear Susp-outer-rh-ptd Blk
4
2707-245
Brkt, Rear Susp-outer-lh-ptd Blk
5
8060-706
Rivet, Blind-dh Ss64 Blk (10 Per Pack)
6
1623-206
Rivet, 3/16 Huck-m9 (5 Per Pack)
7
8422-502
Nut, M5 X 1 Nyl Z&y (8 Per Pack)
8
1707-692
Brkt, Spar Support-rh-ptd Blk
8
1707-693
Brkt, Spar Support-lh-ptd Blk
9
8476-512
Screw, Mach-tstrh M5x0.8x12 Z&y (6 Per Pack)
10
1623-257
Rivet, 3/16 Huck-m5 (10 Per Pack)
11
8060-702
Rivet, Blind-dh Ss62 Blk (25 Per Pack)
12
1707-838
Tunnel, Rear-141-ptd Blk
13
8060-504
Заклепка (цена за шт.(20шт в упаковке)
14
1707-725
End Cap, Tunnel-ptd Blk
15
8408-516
Винт M5x0.8x16 (4 шт в упаковке)
16
0630-288
Регулятор ,3-фазный-40а
17
0645-709
Clip, Battery Cable (2 Per Pack)
18
1623-984
Зажим (2 шт в упаковке)
19
8476-820
Винт M8x1.25x20
20
1707-454
Hook, Toe-rh Ptd Blk
20
1707-455
Hook, Toe-lh Ptd Blk
21
8427-802
Гайка M8x1.25
22
0744-064
Kit, Tool Bag-4 Stroke-assy
23
8468-535
Screw, Mach-tspnh M5x0.8x35 Cl8.8 Blk (4 Per Pack)
24
1623-637
Clip, U-nut (m5) (4 Per Pack)
25
1707-556
Toe Stop, Rh - Formed-ptd Blk
25
1707-557
Toe Stop, Lh - Formed-ptd Blk
26
8470-516
Screw, Mach-tspnh M5x1.0x16 Cl8.8 Z&y (2 Per Pack)
27
1607-109
Protector, Chain Case
28
8061-708
Заклепка -черная (отпуск по 10 шт )
29
0607-351
Protector, Brake Disc-bottom
30
2707-044
Cover, Shield-brake Disc-ptd Blk
31
8408-613
Screw, Cap-hfh M6x1.0x12 Cl8.8 Z&y W/2353 (2 Per Pack)
32
8470-520
Screw, Mach-tspnh M5x0.8x20 Cl8.8 Z&y (4 Per Pack)
33
1623-130
Rivet, 3/16 Huck-m4 (6 Per Pack)
34
0630-309
Protector, Taillight Harness-141"
35
1707-697
Edge, Running Board-ptd Blk
36
1623-241
Rivet, 3/16 Huck-m6 (5 Per Pack)
37
1707-698
Gusset, Running Board-rh-ptd Blk
37
1707-699
Gusset, Running Board-lh-ptd Blk
38
1707-700
Gusset, Tunnel-rh-ptd Blk
38
1707-701
Gusset, Tunnel-lh-ptd Blk
39
8060-710
Rivet, Blind-dh Ss68 Blk (10 Per Pack)
40
8061-706
Rivet, Blind-lf Ss64 Black (10 Per Pack)
41
6606-870
Flare, Tunnel-rh Blk
41
6606-871
Flare, Tunnel-lh Blk
42
0630-292
Protector, Taillight Harness-26.5mm
43
1621-638
Decal, Tunnel-137/141"-orn-rh (ltd)
43
1621-639
Decal, Tunnel-137/141"-orn-lh (ltd)
44
0621-990
Decal, Reflector-red
45
8470-510
Винт M5x1.0x10 (отпуск.по 5 шт)
46
0730-227
Housing, Taillight-ptd Blk
47
0609-898
Taillight, Red
48
6606-394
Flap, Snow-mtn-blk
49
5611-852
Наклейка предупреждения
50
5611-853
Наклейка предупреждения (английский)
51
2707-439
Bumper, Rear-137"/141" Ptd Blk
52
8427-602
Гайка M6x1.0 (отпуск.по 5 шт)
53
8476-620
Винт M6x1.0x2 (отпуск по 5 шт )
54
8060-630
Rivet, Blind-dh Aa68 Blk (10 Per Pack)
55
6606-600
Saddlebag, Rear
56
1623-940
Grommet, Seat Bag (4 Per Pack)
