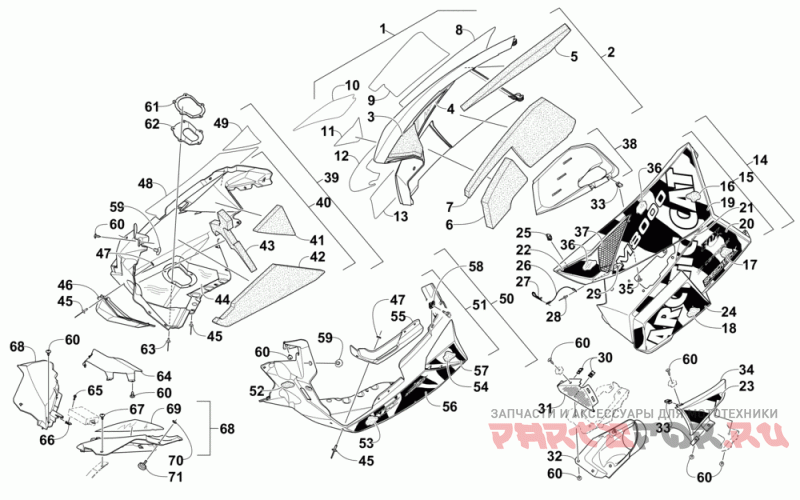

Поддон и обтекатели

Arctic Cat M 8000 KINCAID LTD 153 ORANGE

Arctic Cat
#oem кодцена
1
4718-548
Panel, Side-rh-blk W/decal (kincaid) (inc. 2-13)
2
3718-180
Panel, Side-rh With Foam-blk (2 Stroke) (inc. 3-7)
3
0617-626
Foam, Upper Side Panel-frt-rh
4
6606-414
Foil, Protective-middle Side Panel-rh
5
0617-628
Foam, Upper Side Panel-rear-rh
6
0617-632
Foam, Lwr Side Panel-frt-rh
7
0617-634
Foam, Lwr Side Panel-rear-rh
8
2621-256
Decal, Side Panel Upper-rh-rk
9
2621-264
Decal, Side Panel Lower-rh-rk
10
2621-260
Decal, Side Panel Mid Upper-rh-rk
11
2621-258
Decal, Side Panel Upper Fwd-rh-rk
12
2621-262
Decal, Side Panel Mid Lower-rh-rk
13
2621-266
Decal, Side Panel Fwd-rh-rk
14
4718-549
Panel, Side-lh-blk W/decal (kincaid) (inc. 15-24)
15
4718-553
Panel, Side-lh-w/foam-blk (inc. 16-18)
16
0617-629
Foam, Upper Side Panel-rear-lh
17
0617-635
Foam, Lwr Side Panel-rear-lh
18
0617-681
Foam, Lwr Side Panel-frt-lh
19
2621-257
Decal, Side Panel Upper-lh-rk
20
2621-265
Decal, Side Panel Lower-lh-rk
21
2621-261
Decal, Side Panel Mid-rear-lh-rk
22
2621-259
Decal, Side Panel Upper Fwd-lh-rk
23
2621-313
Decal, Side-panel-mid-vent-lh (m Rk)
24
2621-267
Decal, Side Panel Fwd-lh-rk
25
1623-637
Clip, U-nut (m5) (4 Per Pack)
26
0607-447
Трос шпильки
27
0605-283
Hairpin, Cotter (5 Per Pack)
28
8060-486
Rivet, Blind-dh Ss54 Zinc (20 Per Pack)
29
8050-127
Washer, Flat- #8 X .375 X .049 Z&y (20 Per Pack)
30
1623-052
Nut, U (2 Per Pack)
31
6606-925
Решетка заборная
32
2602-794
Duct, Intake-inner
33
1623-030
Гайка (6 шт в упаковке)
34
2602-793
Duct, Intake-outer-blk
35
0619-206
Теплозащитная фольга
36
5706-531
Screen, Side Panel-upr Lh-ptd Blk
37
1702-369
Duct, Air-clutch W/foil (inc. 38)
38
6606-694
Foil, Clutch Duct-2 Stroke
39
4718-550
Plate, Skid-blk-rh W/decals (kincaid) (inc. 40-49)
40
3718-422
Plate, Skid-rh-w/foam (inc. 41-47)
41
0617-640
Foam, Skid Plate-rear-rh
42
0617-638
Foam, Skid Plate-middle-rh
43
0617-636
Foam, Skid Plate-frt-rh
44
2612-850
Foil, Skid Plate-resonator
45
8061-708
Заклепка -черная (отпуск по 10 шт )
46
2612-754
Shield, Resonator-skid Plate
47
0123-802
Шайба (отпускается по 4 шт)
48
2621-270
Decal, Skid Fwd-rh-rk
49
2621-268
Decal, Skid Rear-rh-rk
50
4718-551
Plate, Skid-blk-lh W/decals (kincaid) (inc. 51-57)
51
3718-789
Plate, Skid-rear Lh W/foam (inc. 52-55)
52
0617-637
Foam, Skid Plate-frt-lh
53
0617-639
Foam, Skid Plate-middle-lh
54
0617-641
Foam, Skid Plate-rear-lh
55
6606-613
Retainer, Tab-side Panel
56
2621-271
Decal, Skid Fwd-lh-rk
57
2621-269
Decal, Skid Rear-lh-rk
58
2623-005
Clip, Receptacle-1/4 Turn Stud
59
6606-592
Pin, Retainer-body Plastic (2 Per Pack)
60
1623-129
Винт, 10-12x5/8 (5 шт в упаковке)
61
2612-796
Plate, Exhaust Outlet
62
2612-795
Seal, Exhaut Outlet-2 Strk
63
8061-710
Rivet, Blind-lf Ss68 Black (20 Per Pack)
64
6606-295
Shield, Heat-ecu
65
8408-620
Винт M6x1.0x20 (4 шт в упаковке)
66
0423-031
Nut, Speed M6 X 1.0 U-type (5 Per Pack)
67
0623-784
Винт 10-12x3/4 (отпускается по 5 шт)
68
6606-342
Panel, Filler-rh-blk
68
3718-303
Panel, Filler W/foil-lh (inc. 69)
69
6606-405
Foil, Protective-filler Panel-lh
70
2623-001
Retainer, Pushnut-3/16" Stud (4 Per Pack)
71
1623-999
Screw, 1" Rnd Knob-m5x0.8x20mm Lg (4 Per Pack)
