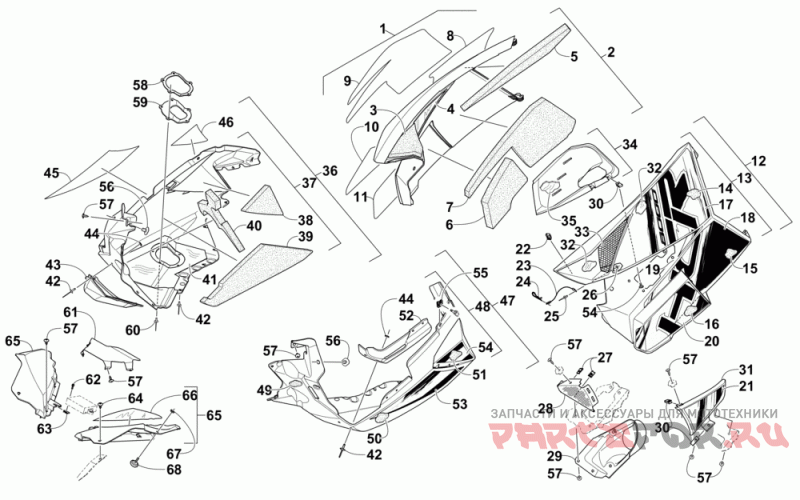

Поддон и обтекатели

Arctic Cat M 8000 HCR 153 GREEN

Arctic Cat
#oem кодцена
1
4718-196
Panel, Side-rh W/decals (m8 Hcr) (inc. 2-11)
2
3718-858
Panel, Side-rh W/foam-ta Grn(2 Stroke) (inc. 3-7)
3
0617-626
Foam, Upper Side Panel-frt-rh
4
6606-414
Foil, Protective-middle Side Panel-rh
5
0617-628
Foam, Upper Side Panel-rear-rh
6
0617-632
Foam, Lwr Side Panel-frt-rh
7
0617-634
Foam, Lwr Side Panel-rear-rh
8
1621-534
Decal, Side Panel-upper-rh (8000 Hcr)
9
1621-542
Decal, Side Panel-lwr-rh (hcr)
10
1621-540
Decal, Side Panel-mid-rh (hcr)
11
1621-538
Decal, Side Panel-fwd-rh (hcr)
12
4718-197
Panel, Side-lh W/decals (m8 Hcr) (inc. 13-21)
13
4718-577
Panel, Side-lh W/foam-ta Grn (inc. 14-16)
14
0617-629
Foam, Upper Side Panel-rear-lh
15
0617-635
Foam, Lwr Side Panel-rear-lh
16
0617-681
Foam, Lwr Side Panel-frt-lh
17
1621-535
Decal, Side Panel-upper-lh (8000 Hcr)
18
1621-543
Decal, Side Panel-lwr-lh (hcr)
19
1621-539
Decal, Side Panel-fwd-lh (hcr)
20
1621-541
Decal, Side Panel-mid-rear-lh (hcr)
21
2621-307
Decal, Side-panel-mid-vent-lh (hcr)
22
1623-637
Clip, U-nut (m5) (4 Per Pack)
23
0607-447
Трос шпильки
24
0605-283
Hairpin, Cotter (5 Per Pack)
25
8060-486
Rivet, Blind-dh Ss54 Zinc (20 Per Pack)
26
8050-127
Washer, Flat- #8 X .375 X .049 Z&y (20 Per Pack)
27
1623-052
Nut, U (2 Per Pack)
28
6606-925
Решетка заборная
29
2602-794
Duct, Intake-inner
30
1623-030
Гайка (6 шт в упаковке)
31
2602-801
Duct, Intake-outer-ta Grn
32
0619-206
Теплозащитная фольга
33
5706-531
Screen, Side Panel-upr Lh-ptd Blk
34
1702-369
Duct, Air-clutch W/foil (inc. 35)
35
6606-694
Foil, Clutch Duct-2 Stroke
36
4718-198
Plate, Skid-rh-w/decal (hcr) (inc. 37-46)
37
3718-422
Plate, Skid-rh-w/foam (inc. 38-44)
38
0617-640
Foam, Skid Plate-rear-rh
39
0617-638
Foam, Skid Plate-middle-rh
40
0617-636
Foam, Skid Plate-frt-rh
41
2612-850
Foil, Skid Plate-resonator
42
8061-708
Заклепка -черная (отпуск по 10 шт )
43
2612-754
Shield, Resonator-skid Plate
44
0123-802
Шайба (отпускается по 4 шт)
45
1621-544
Decal, Skid Plate-fwd-rh (hcr)
46
1621-546
Decal, Skid Plate-rear-rh (hcr)
47
4718-199
Plate, Skid-lh-w/decal (hcr) (inc. 48-54)
48
3718-789
Plate, Skid-rear Lh W/foam (inc. 49-52)
49
0617-637
Foam, Skid Plate-frt-lh
50
0617-639
Foam, Skid Plate-middle-lh
51
0617-641
Foam, Skid Plate-rear-lh
52
6606-613
Retainer, Tab-side Panel
53
1621-545
Decal, Skid Plate-fwd-lh (hcr)
54
1621-547
Decal, Skid Plate-rear-lh (hcr)
55
2623-005
Clip, Receptacle-1/4 Turn Stud
56
6606-592
Pin, Retainer-body Plastic (2 Per Pack)
57
1623-129
Винт, 10-12x5/8 (5 шт в упаковке)
58
2612-796
Plate, Exhaust Outlet
59
2612-795
Seal, Exhaut Outlet-2 Strk
60
8061-710
Rivet, Blind-lf Ss68 Black (20 Per Pack)
61
6606-295
Shield, Heat-ecu
62
8408-620
Винт M6x1.0x20 (4 шт в упаковке)
63
0423-031
Nut, Speed M6 X 1.0 U-type (5 Per Pack)
64
0623-784
Винт 10-12x3/4 (отпускается по 5 шт)
65
6606-342
Panel, Filler-rh-blk
65
3718-303
Panel, Filler W/foil-lh (inc. 66)
66
6606-405
Foil, Protective-filler Panel-lh
67
2623-001
Retainer, Pushnut-3/16" Stud (4 Per Pack)
68
1623-999
Screw, 1" Rnd Knob-m5x0.8x20mm Lg (4 Per Pack)
