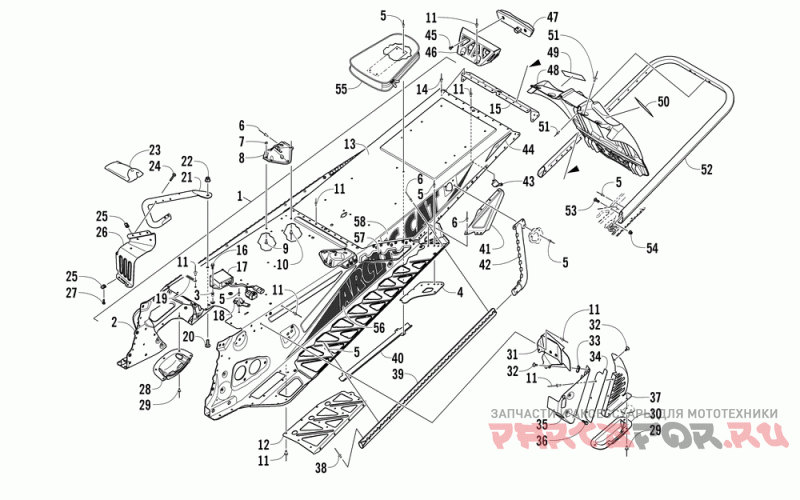

Тунель ,задний бампер и брызговик

Arctic Cat ZR 9000 SP RR

Arctic Cat
#oem кодцена
-
2707-313
Chassis, 128 4strk-rr S/p Assy-ptd Ta Grn
1
2707-312
Tunnel, Hp-s/p Assy-ptd Ta Grn (inc. 2-15)
2
2707-311
Tunnnel, Front-assy-ptd Ta Grn (inc. 3-5)
3
1623-797
Insert, M5x0.8-al Series Als4-580-3.3 (2 Per Pack)
4
2707-318
Brkt, Rear Susp-outer-rh-ptd Ta Grn
4
2707-319
Brkt, Rear Susp-outer-lh-ptd Ta Grn
5
8060-686
Заклепка (10 шт в упак.)
6
1623-241
Rivet, 3/16 Huck-m6 (5 Per Pack)
7
8422-502
Nut, M5 X 1 Nyl Z&y (8 Per Pack)
8
2707-124
Brkt, Spar Support-rh-ptd Team Arc Grn
8
2707-125
Brkt, Spar Support-lh-ptd Team Arc Grn
9
8476-512
Screw, Mach-tstrh M5x0.8x12 Z&y (6 Per Pack)
10
1623-257
Rivet, 3/16 Huck-m5 (10 Per Pack)
11
8060-682
Заклепка (20 шт в упаковке)
12
2707-316
Support, Running Board-rh-ptd Ta Grn
12
2707-317
Support, Running Board-lh-ptd Ta Grn
13
2707-314
Tunnel, Rear-128-ptd Ta Grn
14
8060-484
Rivet, Blind-dh Ss53 Zinc (10 Per Pack)
15
2707-315
End Cap, Tunnel-ptd Ta Grn
16
8408-516
Винт M5x0.8x16 (4 шт в упаковке)
17
0630-288
Регулятор ,3-фазный-40а
18
0645-709
Clip, Battery Cable (2 Per Pack)
19
1623-984
Зажим (2 шт в упаковке)
20
8476-820
Винт M8x1.25x20
21
1707-454
Hook, Toe-rh Ptd Blk
21
1707-455
Hook, Toe-lh Ptd Blk
22
8427-802
Гайка M8x1.25
23
0744-079
Kit, Tool Bag-4 Strk Rr-assy
24
8468-536
Screw, Mach-tspnh M5x0.8x35 Cl8.8 W/2353 (3 Per Pack)
25
1623-637
Clip, U-nut (m5) (4 Per Pack)
26
2707-004
Toe Stop, Rh-formed-ptd Team Arctic Grn
26
2707-005
Toe Stop, Lh-formed-ptd Team Arctic Grn
27
8470-516
Screw, Mach-tspnh M5x1.0x16 Cl8.8 Z&y (2 Per Pack)
28
1607-109
Protector, Chain Case
29
8061-708
Заклепка -черная (отпуск по 10 шт )
30
0607-351
Protector, Brake Disc-bottom
31
1702-278
Mount, Clutch Guard-assy
32
1623-129
Винт, 10-12x5/8 (5 шт в упаковке)
33
1623-052
Nut, U (2 Per Pack)
34
2707-007
Guard, Toe-ptd Team Arctic Green
35
1607-118
Cover, Shield-brake Caliper
36
8408-613
Screw, Cap-hfh M6x1.0x12 Cl8.8 Z&y W/2353 (2 Per Pack)
37
2707-006
Cover, Shield-brake Disc-ptd Ta Grn
38
1623-130
Rivet, 3/16 Huck-m4 (6 Per Pack)
39
2707-132
Edge, Running Board-rh Ptd Team Arc Grn
39
2707-133
Edge, Running Board-lh Ptd Team Arc Grn
40
0630-308
Protector, Taillight Harness-128"
41
2707-320
Gusset, Running Board-rh-ptd Ta Grn
41
2707-321
Gusset, Running Board-lh-ptd Ta Grn
42
2707-338
Gusset, Tunnel-rh-ptd Ta Grn
42
2707-339
Gusset, Tunnel-lh-ptd Ta Grn
43
0630-292
Protector, Taillight Harness-26.5mm
44
0621-990
Decal, Reflector-red
45
8470-512
Screw, Mach-tspnh M5x.8x12 Cl8.8 Z&y (2 Per Pack)
46
0730-198
Housing, Taillight-ptd Team Arctic Grn
47
0609-898
Taillight, Red
48
6606-394
Flap, Snow-mtn-blk
49
5611-852
Decal, Warning-towing/track-french (french)
50
5611-853
Decal, Warning-towing/track-english (english)
51
8061-706
Rivet, Blind-lf Ss64 Black (10 Per Pack)
52
1707-814
Bumper, Rear-128"-ptd Blk
53
8476-620
Винт M6x1.0x2 (отпуск по 5 шт )
54
8427-602
Гайка M6x1.0 (отпуск.по 5 шт)
55
6606-615
Bag, Belt
56
0621-660
Decal, Tunnel-"arctic Cat" Rh 3
56
0621-661
Decal, Tunnel-"arctic Cat" Lh 3
57
0621-658
Decal, Tunnel-"arctic Cat" Rh 2
57
0621-659
Decal, Tunnel-"arctic Cat" Lh 2
58
0621-656
Decal, Tunnel-"arctic Cat" Rh 1
58
0621-657
Decal, Tunnel-"arctic Cat" Lh 1
