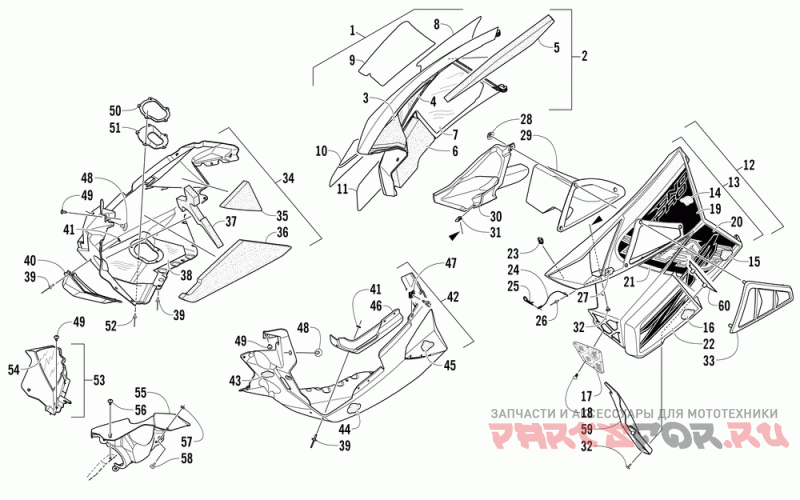

Поддон и обтекатели

Arctic Cat ZR 9000 SP

Arctic Cat
#oem кодцена
1
3718-854
Panel, Side-rh Orn-w/decals(zr Sp Orn) (inc. 2-11) (tpuso)
1
3718-868
Panel, Side-rh Grn W/decal(zr9 Sp Grn) (inc. 2-11) (tpusg)
2
3718-856
Panel, Side-rh W/foam-orn-assy (4 Strk) (inc. 3-7) (tpuso)
2
3718-860
Panel, Side-rh W/foam-ta Grn (4 Stroke) (inc. 3-7) (tpusg)
3
0617-626
Foam, Upper Side Panel-frt-rh
4
6606-414
Foil, Protective-middle Side Panel-rh
5
0617-628
Foam, Upper Side Panel-rear-rh
6
0617-632
Foam, Lwr Side Panel-frt-rh
7
6606-416
Foil, Protective-lwr Side Panel-rear-rh
8
0621-696
Decal, Side Panel-upr Rh (sp Orn) (tpuso)
8
0621-678
Decal, Side Panel-upr Rh (sp Grn) (tpusg)
9
0621-702
Decal, Side Panel-lwr Rh "zr" (sp Orn) (tpuso)
9
0621-682
Decal, Side Panel-lwr-rh "zr" (sp Grn) (tpusg)
10
0621-698
Decal, Side Panel-mid Rh (sp Orn) (tpuso)
10
0621-680
Decal, Side Panel-mid Rh (sp Grn) (tpusg)
11
0621-700
Decal, Side Panel-fwd Rh-"zr" (sp Orn) (tpuso)
11
0621-684
Decal, Side Panel-fwd Rh-"zr" (sp Grn) (tpusg)
12
3718-337
Panel, Side-lh Orn W/decal(zr9 Sp Orn) (inc. 13-22) (tpuso)
12
3718-869
Panel, Side-lh Grn W/decal(zr9 Sp Grn)
13
3718-867
Panel, Side-lh Orn-w/foam (turbo) (inc. 14-18) (tpuso)
13
3718-861
Panel, Side-lh W/foam-ta Grn (turbo) (inc. 14-18) (tpusg)
14
0617-669
Foam, Upper Side Panel-rear Lh-4 Strk
15
0617-635
Foam, Lwr Side Panel-rear-lh
16
0617-681
Foam, Lwr Side Panel-frt-lh
17
2602-704
Screen, Air Deflector
18
0623-269
Клипса - елочка (отпускается по 5 шт)
19
0621-693
Decal, Side Panel-upr Lh (turbo Sp Orn) (tpuso)
19
0621-201
Decal, Side Panel-upr Lh (turbo Sp Grn) (tpusg)
20
0621-703
Decal, Side Panel-lwr Lh "zr" (sp Orn) (tpuso)
20
0621-683
Decal, Side Panel-lwr-lh "zr"(sp Grn) (tpusg)
21
0621-699
Decal, Side Panel-mid Lh (sp Orn) (tpuso)
21
0621-681
Decal, Side Panel-mid Lh (sp Grn) (tpusg)
22
0621-701
Decal, Side Panel-fwd Lh-"zr" (sp Orn) (tpuso)
22
0621-685
Decal, Side Panel-fwd Lh-"zr" (sp Grn) (tpusg)
23
1623-637
Clip, U-nut (m5) (4 Per Pack)
24
0607-447
Трос шпильки
25
0605-283
Hairpin, Cotter (5 Per Pack)
26
8060-486
Rivet, Blind-dh Ss54 Zinc (20 Per Pack)
27
8050-127
Washer, Flat- #8 X .375 X .049 Z&y (20 Per Pack)
28
1623-469
Гайка (отпуск.по 4 шт)
29
0708-596
Duct, Heat-turbo-routed
30
2602-457
Duct, Belt Cooling-4 Strk
31
1623-030
Гайка (6 шт в упаковке)
32
0623-797
Винт 10-12x1/2 (10 шт в упаковке)
33
0608-648
Cover, Duct-heat-turbo
34
3718-422
Plate, Skid-rh-w/foam (inc. 35-41)
35
0617-640
Foam, Skid Plate-rear-rh
36
0617-638
Foam, Skid Plate-middle-rh
37
0617-636
Foam, Skid Plate-frt-rh
38
2612-850
Foil, Skid Plate-resonator
39
8061-708
Заклепка -черная (отпуск по 10 шт )
40
2612-754
Shield, Resonator-skid Plate
41
0123-802
Шайба (отпускается по 4 шт)
42
3718-789
Plate, Skid-rear Lh W/foam
43
0617-637
Foam, Skid Plate-frt-lh
44
0617-639
Foam, Skid Plate-middle-lh
45
0617-641
Foam, Skid Plate-rear-lh
46
6606-613
Retainer, Tab-side Panel
47
1623-748
Clip, Receptacle-1/4 Turn Stud
48
6606-592
Pin, Retainer-body Plastic (2 Per Pack)
49
1623-129
Винт, 10-12x5/8 (5 шт в упаковке)
50
2612-796
Plate, Exhaust Outlet
51
2612-799
Seal, Exhaust Outlet-4 Strk
52
8061-710
Rivet, Blind-lf Ss68 Black (20 Per Pack)
53
3718-302
Panel, Filler W/foil-rh (inc. 54)
54
6606-404
Foil, Protective-filler Panel-rh
55
6606-351
Panel, Filler-lh-turbo-blk
56
0623-784
Винт 10-12x3/4 (отпускается по 5 шт)
57
2623-001
Retainer, Pushnut-3/16" Stud (4 Per Pack)
58
1623-999
Screw, 1" Rnd Knob-m5x0.8x20mm Lg (4 Per Pack)
59
2602-711
Deflector, Air
60
2602-703
Retainer, Air Deflector
