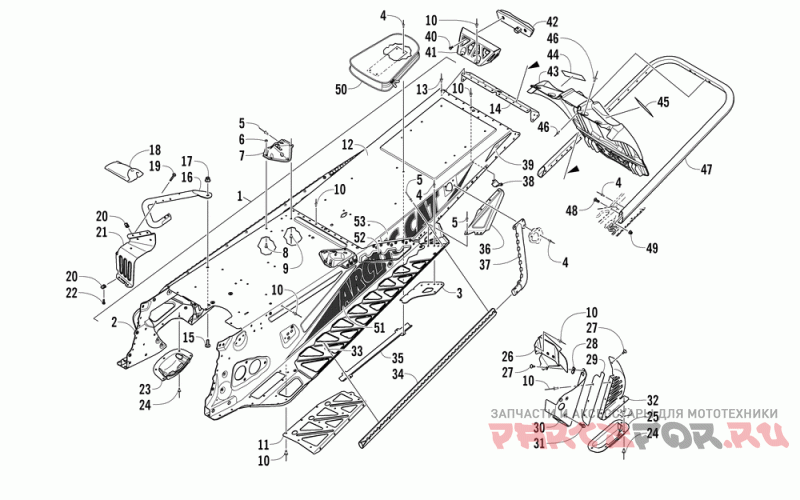

Тунель ,задний бампер и брызговик

Arctic Cat ZR 8000 SP RR NE OS

Arctic Cat
#oem кодцена
-
2707-018
Chassis, 128" 2 Strk-ptd Team Arc Grn
1
2707-312
Tunnel, Hp-s/p Assy-ptd Ta Grn (inc. 2-14)
2
2707-311
Tunnnel, Front-assy-ptd Ta Grn (inc. 3-4)
3
2707-318
Brkt, Rear Susp-outer-rh-ptd Ta Grn
3
2707-319
Brkt, Rear Susp-outer-lh-ptd Ta Grn
4
8060-706
Rivet, Blind-dh Ss64 Blk (10 Per Pack)
5
1623-241
Rivet, 3/16 Huck-m6 (5 Per Pack)
6
8422-502
Nut, M5 X 1 Nyl Z&y (8 Per Pack)
7
2707-340
Brkt, Spar Support-rh-ptd Ta Grn
7
2707-341
Brkt, Spar Support-lh-ptd Ta Grn
8
8476-512
Screw, Mach-tstrh M5x0.8x12 Z&y (6 Per Pack)
9
1623-257
Rivet, 3/16 Huck-m5 (10 Per Pack)
10
8060-702
Rivet, Blind-dh Ss62 Blk (25 Per Pack)
11
2707-316
Support, Running Board-rh-ptd Ta Grn
11
2707-317
Support, Running Board-lh-ptd Ta Grn
12
2707-314
Tunnel, Rear-128-ptd Ta Grn
13
8060-504
Заклепка (цена за шт.(20шт в упаковке)
14
2707-315
End Cap, Tunnel-ptd Ta Grn
15
8476-820
Винт M8x1.25x20
16
1707-454
Hook, Toe-rh Ptd Blk
16
1707-455
Hook, Toe-lh Ptd Blk
17
8427-802
Гайка M8x1.25
18
0744-078
Kit, Tool Bag-2 Strk Rr-assy
19
8468-536
Screw, Mach-tspnh M5x0.8x35 Cl8.8 W/2353 (3 Per Pack)
20
1623-637
Clip, U-nut (m5) (4 Per Pack)
21
2707-004
Toe Stop, Rh-formed-ptd Team Arctic Grn
21
2707-005
Toe Stop, Lh-formed-ptd Team Arctic Grn
22
8470-516
Screw, Mach-tspnh M5x1.0x16 Cl8.8 Z&y (2 Per Pack)
23
1607-109
Protector, Chain Case
24
8061-708
Заклепка -черная (отпуск по 10 шт )
25
0607-351
Protector, Brake Disc-bottom
26
1702-278
Mount, Clutch Guard-assy
27
1623-129
Винт, 10-12x5/8 (5 шт в упаковке)
28
1623-052
Nut, U (2 Per Pack)
29
2707-007
Guard, Toe-ptd Team Arctic Green
30
1607-118
Cover, Shield-brake Caliper
31
8408-613
Screw, Cap-hfh M6x1.0x12 Cl8.8 Z&y W/2353 (2 Per Pack)
32
2707-006
Cover, Shield-brake Disc-ptd Ta Grn
33
1623-130
Rivet, 3/16 Huck-m4 (6 Per Pack)
34
2707-132
Edge, Running Board-rh Ptd Team Arc Grn
34
2707-133
Edge, Running Board-lh Ptd Team Arc Grn
35
0630-308
Protector, Taillight Harness-128"
36
2707-320
Gusset, Running Board-rh-ptd Ta Grn
36
2707-321
Gusset, Running Board-lh-ptd Ta Grn
37
2707-338
Gusset, Tunnel-rh-ptd Ta Grn
37
2707-339
Gusset, Tunnel-lh-ptd Ta Grn
38
0630-292
Protector, Taillight Harness-26.5mm
39
0621-990
Decal, Reflector-red
40
8470-512
Screw, Mach-tspnh M5x.8x12 Cl8.8 Z&y (2 Per Pack)
41
0730-198
Housing, Taillight-ptd Team Arctic Grn
42
0609-898
Taillight, Red
43
6606-394
Flap, Snow-mtn-blk
44
5611-852
Decal, Warning-towing/track-french (french)
45
5611-853
Decal, Warning-towing/track-english (english)
46
8061-706
Rivet, Blind-lf Ss64 Black (10 Per Pack)
47
1707-814
Bumper, Rear-128"-ptd Blk
48
8476-620
Винт M6x1.0x2 (отпуск по 5 шт )
49
8427-602
Гайка M6x1.0 (отпуск.по 5 шт)
50
6606-615
Bag, Belt
51
0621-660
Decal, Tunnel-"arctic Cat" Rh 3
51
0621-661
Decal, Tunnel-"arctic Cat" Lh 3
52
0621-656
Decal, Tunnel-"arctic Cat" Rh 1
52
0621-657
Decal, Tunnel-"arctic Cat" Lh 1
53
0621-658
Decal, Tunnel-"arctic Cat" Rh 2
53
0621-659
Decal, Tunnel-"arctic Cat" Lh 2
