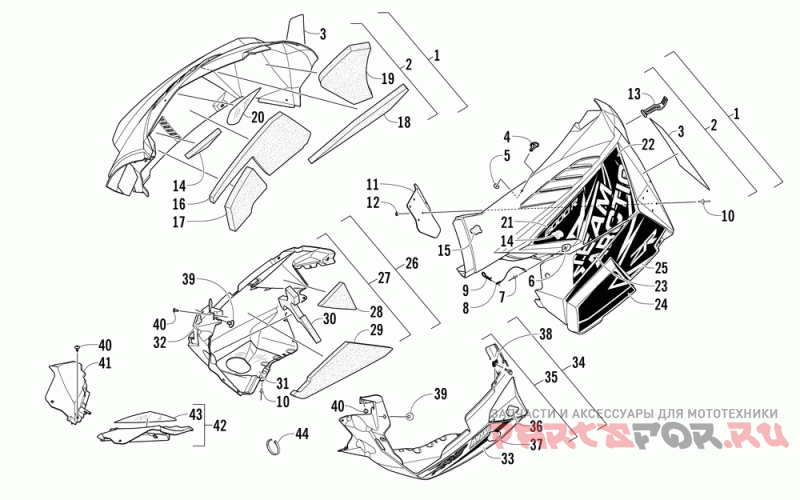

Поддон и обтекатели

Arctic Cat ZR 6000 SC SP R - CC SP R

Arctic Cat
#oem кодцена
1
4718-122
Panel, Side-rh Race-w/decals (inc. 2-25)
1
4718-123
Panel, Side-lh Race-w/decals (inc. 2-19 And 21-25)
2
4718-124
Panel, Side-rh Race-w/foam (inc. 3-20)
2
4718-125
Panel, Side-lh Race-w/foam (inc. 3-19)
3
9611-499
Decal, Warning-english
3
9611-498
Decal, Warning-french
4
2623-003
Stud, 1/4 Turn-16mm
5
2623-056
Retainer, 1/4 Turn (2 Per Pack)
6
8050-127
Washer, Flat- #8 X .375 X .049 Z&y (20 Per Pack)
7
8060-486
Rivet, Blind-dh Ss54 Zinc (20 Per Pack)
8
0607-447
Трос шпильки
9
0605-283
Hairpin, Cotter (5 Per Pack)
10
8061-708
Заклепка -черная (отпуск по 10 шт )
11
6606-660
Panel, Reinforcement
12
0123-802
Шайба (отпускается по 4 шт)
13
0607-659
Strap, Holdown-guard
14
0617-674
Foam, Upper Side Panel-frt Rh
14
6606-466
Foil, Protective-side Panel
15
0617-736
Foam, Side Panel-top-rh
15
0617-737
Foam, Side Panel-top-lh
16
0617-634
Foam, Lwr Side Panel-rear-rh
16
0617-635
Foam, Lwr Side Panel-rear-lh
17
0617-632
Foam, Lwr Side Panel-frt-rh
17
0617-633
Foam, Lwr Side Panel-frt-lh
18
0617-696
Foam, Side Panel-rh
18
0617-697
Foam, Side Panel-lh
19
0617-700
Foam, Side Panel-vent-rh
19
0617-735
Foam, Side Panel-vent-lh
20
6606-414
Foil, Protective-middle Side Panel-rh
21
1621-302
Decal, Side Panel-upr Fwd-rh "6000r"
21
1621-303
Decal, Side Panel-upr Fwd-lh "6000r"
22
1621-304
Decal, Side Panel-upr Rh
22
1621-305
Decal, Side Panel-upr Lh
23
1621-308
Decal, Side Panel-mid Rh
23
1621-309
Decal, Side Panel-mid Lh
24
1621-310
Decal, Side Panel-fwd Rh
24
1621-311
Decal, Side Panel-fwd Lh
25
1621-306
Decal, Side Panel-lwr Rh
25
1621-307
Decal, Side Panel-lwr Lh
26
4718-120
Plate, Skid-rh Race-w/decals (inc. 27-33)
27
4718-118
Plate, Skid-rh Race-w/foam (inc. 28-32)
28
0617-640
Foam, Skid Plate-rear-rh
29
0617-638
Foam, Skid Plate-middle-rh
30
0617-636
Foam, Skid Plate-frt-rh
31
6606-352
Foil, Protective-lwr Skid-rh
32
6606-354
Foil, Protective-upr Skid-rh
33
1621-314
Decal, Skid Plate-rh "sponser"
33
1621-315
Decal, Skid Plate-lh "sponser"
34
4718-121
Plate, Skid-lh Race-w/decals (inc. 35-37 And 33)
35
4718-119
Plate, Skid-lh Race-w/foam (inc. 36-37)
36
0617-639
Foam, Skid Plate-middle-lh
37
0617-641
Foam, Skid Plate-rear-lh
38
2623-005
Clip, Receptacle-1/4 Turn Stud
39
6606-592
Pin, Retainer-body Plastic (2 Per Pack)
40
1623-129
Винт, 10-12x5/8 (5 шт в упаковке)
41
6606-342
Panel, Filler-rh-blk
42
3718-303
Panel, Filler W/foil-lh (inc. 43)
43
6606-405
Foil, Protective-filler Panel-lh
44
0123-903
Держатель кабеля 11,5 (отпуск.по 10 шт)
