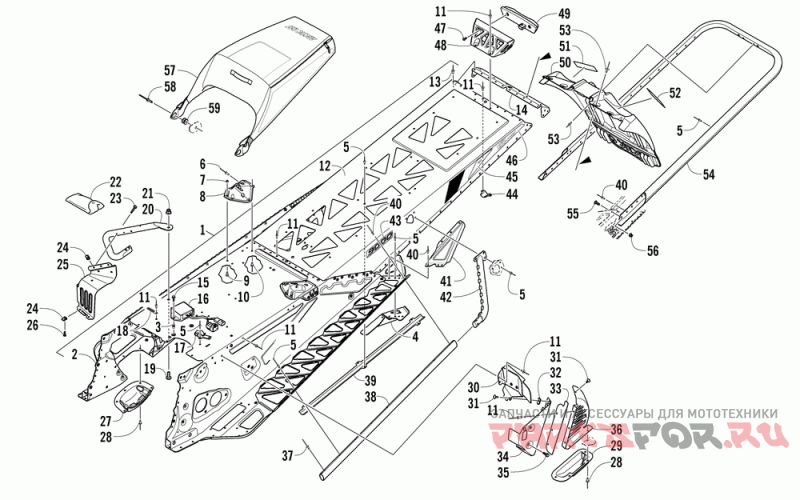

Тунель ,задний бампер и брызговик

Arctic Cat XF 9000 HC SP LTD

Arctic Cat
#oem кодцена
-
2707-296
Chassis, 153 4 Strk-s/p Assy-ptd Blk (hcuso/hcoso)
-
2707-299
Chassis, 153 4 Strk-s/p Assy-ptd Wht (hcusw/hcosw)
1
2707-295
Tunnel, Mt-153-s/p Assy-ptd Blk (inc. 2-14) (hcuso/hcoso)
1
2707-298
Tunnel, Mt-153-s/p Assy-ptd Wht (inc. 2-14) (hcusw/hcosw)
2
2707-294
Tunnel, Front-assy-ptd Blk (inc. 3-5) (hcuso/hcoso)
2
2707-297
Tunnel, Front-assy-ptd Wht (inc. 3-5) (hcusw/hcosw)
3
1623-797
Insert, M5x0.8-al Series Als4-580-3.3 (2 Per Pack)
4
2707-286
Brkt, Rear Susp-outer-rh-ptd Blk (hcuso/hcoso)
4
2707-287
Brkt, Rear Susp-outer-lh-ptd Blk (hcuso/hcoso)
4
2707-290
Brkt, Rear Susp-outer-rh-ptd Wht (hcusw/hcosw)
4
2707-291
Brkt, Rear Susp-outer-lh-ptd Wht (hcusw/hcosw)
5
8060-706
Rivet, Blind-dh Ss64 Blk (hcuso/hcoso) (10 Per Pack)
5
8060-686
Rivet, Blind-dh Ss64 Zinc (hcusw/hcosw) (10 Per Pack)
6
1623-206
Rivet, 3/16 Huck-m9 (5 Per Pack)
7
8422-502
Nut, M5 X 1 Nyl Z&y (8 Per Pack)
8
1707-692
Brkt, Spar Support-rh-ptd Blk (hcuso/hcoso)
8
1707-693
Brkt, Spar Support-lh-ptd Blk (hcuso/hcoso)
8
1707-904
Brkt, Spar Support-rh-ptd Wht (hcusw/hcosw)
8
1707-905
Brkt, Spar Support-lh-ptd Wht (hcusw/hcosw)
9
8476-512
Screw, Mach-tstrh M5x0.8x12 Z&y (6 Per Pack)
10
1623-257
Rivet, 3/16 Huck-m5 (10 Per Pack)
11
8060-702
Rivet, Blind-dh Ss62 Blk (hcuso/hcoso) (25 Per Pack)
11
8060-682
Rivet, Blind-dh Ss62 Zinc (hcusw/hcosw) (20 Per Pack)
12
1707-724
Tunnel, Rear-153-ptd Blk (hcuso/hcoso)
12
1707-993
Tunnel, Rear-153-ptd Wht (hcusw/hcosw)
13
8060-504
Rivet, Blind-dh Ss53 Blk (hcuso/hcoso) (20 Per Pack)
13
8060-484
Rivet, Blind-dh Ss53 Zinc (hcusw/hcosw) (10 Per Pack)
14
1707-725
End Cap, Tunnel-ptd Blk (hcuso/hcoso)
14
1707-834
End Cap, Tunnel-ptd Wht (hcusw/hcosw)
15
8408-516
Винт M5x0.8x16 (4 шт в упаковке)
16
0630-288
Регулятор ,3-фазный-40а
17
0645-709
Clip, Battery Cable (2 Per Pack)
18
1623-984
Зажим (2 шт в упаковке)
19
8476-820
Винт M8x1.25x20
20
1707-454
Hook, Toe-rh Ptd Blk
20
1707-455
Hook, Toe-lh Ptd Blk
21
8427-802
Гайка M8x1.25
22
0744-064
Kit, Tool Bag-4 Stroke-assy
23
8468-536
Screw, Mach-tspnh M5x0.8x35 Cl8.8 W/2353 (3 Per Pack)
24
1623-637
Clip, U-nut (m5) (4 Per Pack)
25
1707-556
Toe Stop, Rh - Formed-ptd Blk (hcuso/hcoso)
25
1707-557
Toe Stop, Lh - Formed-ptd Blk (hcuso/hcoso)
25
1707-802
Toe Stop, Rh - Formed-ptd Wht (hcusw/hcosw)
25
1707-803
Toe Stop, Lh - Formed-ptd Wht (hcusw/hcosw)
26
8470-516
Screw, Mach-tspnh M5x1.0x16 Cl8.8 Z&y (2 Per Pack)
27
1607-109
Protector, Chain Case
28
8061-708
Заклепка -черная (отпуск по 10 шт )
29
0607-351
Protector, Brake Disc-bottom
30
1702-278
Mount, Clutch Guard-assy
31
1623-129
Винт, 10-12x5/8 (5 шт в упаковке)
32
1623-052
Nut, U (2 Per Pack)
33
1707-639
Guard, Toe-ptd Blk (hcuso/hcoso)
33
1707-805
Guard, Toe-ptd Wht (hcusw/hcosw)
34
1607-118
Cover, Shield-brake Caliper
35
8408-613
Screw, Cap-hfh M6x1.0x12 Cl8.8 Z&y W/2353 (2 Per Pack)
36
1707-563
Cover, Shield-brake Disc-ptd Blk (hcuso/hcoso)
36
1707-804
Cover, Shield-brake Disc-ptd Wht (hcusw/hcosw)
37
1623-130
Rivet, 3/16 Huck-m4 (6 Per Pack)
38
1707-697
Edge, Running Board-ptd Blk (hcuso/hcoso)
38
1707-899
Edge, Running Board-ptd Wht (hcusw/hcosw)
39
0630-307
Protector, Taillgiht Harness-153/162"
40
1623-241
Rivet, 3/16 Huck-m6 (5 Per Pack)
41
2707-288
Gusset, Running Board-rh-ptd Blk (hcuso/hcoso)
41
2707-289
Gusset, Running Board-lh-ptd Blk (hcuso/hcoso)
41
2707-292
Gusset, Running Board-rh-ptd Wht (hcusw/hcosw)
41
2707-293
Gusset, Running Board-lh-ptd Wht (hcusw/hcosw)
42
1707-700
Gusset, Tunnel-rh-ptd Blk (hcuso/hcoso)
42
1707-701
Gusset, Tunnel-lh-ptd Blk (hcuso/hcoso)
42
1707-908
Gusset, Tunnel-rh-ptd Wht (hcusw/hcosw)
42
1707-909
Gusset, Tunnel-lh-ptd Wht (hcusw/hcosw)
43
0621-832
Decal, Tunnel-"9000" (ltd Orn) (hcuso/hcoso)
43
0621-866
Decal, Tunnel-"9000" (ltd Wht) (hcusw/hcosw)
44
0630-292
Protector, Taillight Harness-26.5mm
45
0621-990
Decal, Reflector-red
46
0621-850
Decal, Tunnel-"hi Cty"-rear-rh (ltd Orn) (hcuso/hcoso)
46
0621-851
Decal, Tunnel-"hi Cty"-rear-lh (ltd Orn) (hcuso/hcoso)
46
0621-884
Decal, Tunnel-rear-"hi Cty"-rh (wht Ltd) (hcusw/hcosw)
46
0621-885
Decal, Tunnel-rear-"hi Cty"-lh (wht Ltd) (hcusw/hcosw)
47
8470-512
Screw, Mach-tspnh M5x.8x12 Cl8.8 Z&y (2 Per Pack)
48
0730-164
Housing, Taillight-ptd Blk (hcuso/hcoso)
48
0730-185
Housing, Taillight-mc Ptd Wht (hcusw/hcosw)
49
0609-898
Taillight, Red
50
6606-394
Flap, Snow-mtn-blk
51
5611-852
Decal, Warning-towing/track-french (french)
52
5611-853
Decal, Warning-towing/track-english (english)
53
8061-706
Rivet, Blind-lf Ss64 Black (10 Per Pack)
54
2707-093
Bumper, Rear-153"-ptd-orn (hcuso/hcoso)
54
1707-971
Bumper, Rear-153"-ptd-blk (hcusw/hcosw)
55
8476-620
Винт M6x1.0x2 (отпуск по 5 шт )
56
8427-602
Гайка M6x1.0 (отпуск.по 5 шт)
57
6606-600
Saddlebag, Rear
58
8060-630
Rivet, Blind-dh Aa68 Blk (10 Per Pack)
59
1623-940
Grommet, Seat Bag (4 Per Pack)
