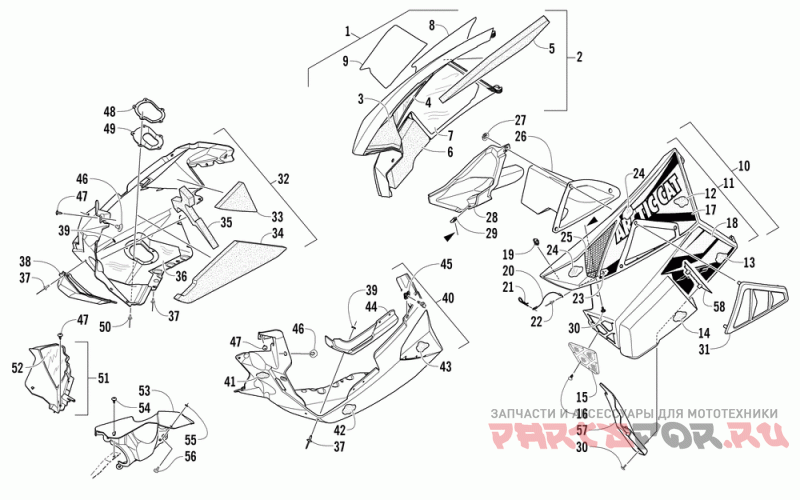

Поддон и обтекатели

Arctic Cat XF 9000 CT

Arctic Cat
#oem кодцена
1
3718-902
Panel, Side-rh Blk-w/decal (xf 9000 Blk) (inc. 2-9) (ctusb/ctosb)
1
3718-942
Panel, Side-rh Blk/orn W/decals(xf Z1 Ct) (inc. 2-9) (ctuso/ctoso)
2
3718-312
Panel, Side-rh With Foam-blk (4 Stroke) (inc. 3-7)
3
0617-626
Foam, Upper Side Panel-frt-rh
4
6606-414
Foil, Protective-middle Side Panel-rh
5
0617-628
Foam, Upper Side Panel-rear-rh
6
0617-632
Foam, Lwr Side Panel-frt-rh
7
6606-416
Foil, Protective-lwr Side Panel-rear-rh
8
0621-636
Decal, Side Panel-upr Rh (lxr Blk) (ctusb/ctosb)
8
0621-716
Decal, Side Panel-upper-rh (xf Ct Orn) (ctuso/ctoso)
9
0621-646
Decal, Side Panel-lwr Rh (xf Lxr Blk) (ctusb/ctosb)
9
0621-720
Decal, Side Panel-lwr Rh (xf Ct Orn) (ctuso/ctoso)
10
3718-903
Panel, Side-lh Blk-w/decal (xf 9000 Blk)
10
3718-943
Panel, Side-rh Blk/orn W/decals(xf Trb Ct
11
4718-105
Panel, Side-lh-w/foam-blk (turbo) (inc. 12-16)
12
0617-669
Foam, Upper Side Panel-rear Lh-4 Strk
13
0617-635
Foam, Lwr Side Panel-rear-lh
14
0617-681
Foam, Lwr Side Panel-frt-lh
15
2602-704
Screen, Air Deflector
16
0623-269
Клипса - елочка (отпускается по 5 шт)
17
0621-167
Decal, Side Panel-upr Lh (trb Lxr Blk) (ctusb/ctosb)
17
0621-719
Decal, Side Panel-upper-lh (xf Trb Orn) (ctuso/ctoso)
18
0621-647
Decal, Side Panel-lwr Lh (xf Lxr Blk) (ctusb/ctosb)
18
0621-721
Decal, Side Panel-lwr Lh (xf Ct Orn) (ctuso/ctoso)
19
1623-637
Clip, U-nut (m5) (4 Per Pack)
20
0607-447
Трос шпильки
21
0605-283
Hairpin, Cotter (5 Per Pack)
22
8060-486
Rivet, Blind-dh Ss54 Zinc (20 Per Pack)
23
8050-127
Washer, Flat- #8 X .375 X .049 Z&y (20 Per Pack)
24
0619-206
Теплозащитная фольга
25
5706-531
Screen, Side Panel-upr Lh-ptd Blk
26
0708-596
Duct, Heat-turbo-routed
27
1623-469
Гайка (отпуск.по 4 шт)
28
2602-457
Duct, Belt Cooling-4 Strk
29
1623-030
Гайка (6 шт в упаковке)
30
0623-797
Винт 10-12x1/2 (10 шт в упаковке)
31
0608-648
Cover, Duct-heat-turbo
32
3718-422
Plate, Skid-rh-w/foam (inc. 33-39)
33
0617-640
Foam, Skid Plate-rear-rh
34
0617-638
Foam, Skid Plate-middle-rh
35
0617-636
Foam, Skid Plate-frt-rh
36
2612-850
Foil, Skid Plate-resonator
37
8061-708
Заклепка -черная (отпуск по 10 шт )
38
2612-754
Shield, Resonator-skid Plate
39
0123-802
Шайба (отпускается по 4 шт)
40
3718-789
Plate, Skid-rear Lh W/foam
41
0617-637
Foam, Skid Plate-frt-lh
42
0617-639
Foam, Skid Plate-middle-lh
43
0617-641
Foam, Skid Plate-rear-lh
44
6606-613
Retainer, Tab-side Panel
45
1623-748
Clip, Receptacle-1/4 Turn Stud
46
6606-592
Pin, Retainer-body Plastic (2 Per Pack)
47
1623-129
Винт, 10-12x5/8 (5 шт в упаковке)
48
2612-796
Plate, Exhaust Outlet
49
2612-799
Seal, Exhaust Outlet-4 Strk
50
8061-710
Rivet, Blind-lf Ss68 Black (20 Per Pack)
51
3718-302
Panel, Filler W/foil-rh (inc. 52)
52
6606-404
Foil, Protective-filler Panel-rh
53
6606-351
Panel, Filler-lh-turbo-blk
54
0623-784
Винт 10-12x3/4 (отпускается по 5 шт)
55
2623-001
Retainer, Pushnut-3/16" Stud (4 Per Pack)
56
1623-999
Screw, 1" Rnd Knob-m5x0.8x20mm Lg (4 Per Pack)
57
2602-711
Deflector, Air
58
2602-703
Retainer, Air Deflector
