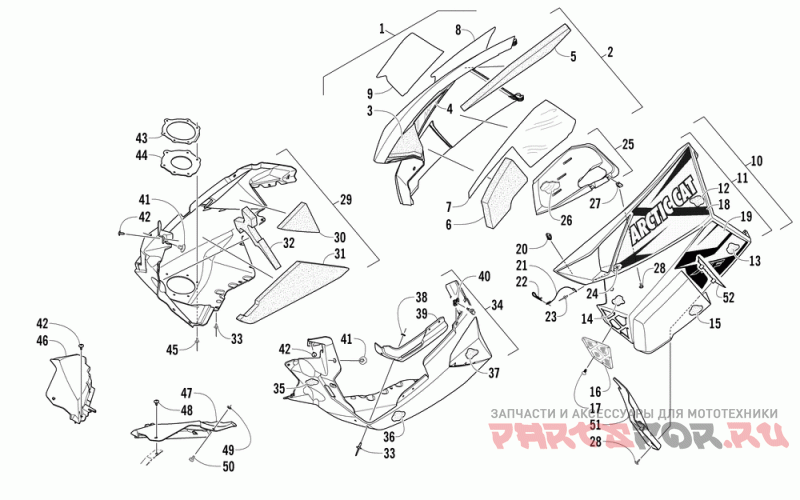

Поддон и обтекатели

Arctic Cat XF 7000 LXR

Arctic Cat
#oem кодцена
1
3718-916
Panel, Side-rh W/decals(xf Lxr Blk) (inc. 2-9)
2
3718-312
Panel, Side-rh With Foam-blk (4 Stroke) (inc. 3-7)
3
0617-626
Foam, Upper Side Panel-frt-rh
4
6606-414
Foil, Protective-middle Side Panel-rh
5
0617-628
Foam, Upper Side Panel-rear-rh
6
0617-632
Foam, Lwr Side Panel-frt-rh
7
6606-416
Foil, Protective-lwr Side Panel-rear-rh
8
0621-636
Decal, Side Panel-upr Rh (lxr Blk)
9
0621-646
Decal, Side Panel-lwr Rh (xf Lxr Blk)
10
3718-897
Panel, Side-lh Blk-w/decal (xf 800 Blk) (inc. 11-19)
11
4718-101
Panel, Side-lh-w/foam-blk (inc. 12-17)
12
0617-629
Foam, Upper Side Panel-rear-lh
13
0617-681
Foam, Lwr Side Panel-frt-lh
14
0617-631
Foam, Middle Side Panel-lh
15
0617-635
Foam, Lwr Side Panel-rear-lh
16
2602-704
Screen, Air Deflector
17
0623-269
Клипса - елочка (отпускается по 5 шт)
18
0621-637
Decal, Side Panel-upr Lh (lxr Blk)
19
0621-647
Decal, Side Panel-lwr Lh (xf Lxr Blk)
20
1623-637
Clip, U-nut (m5) (4 Per Pack)
21
0607-447
Трос шпильки
22
0605-283
Hairpin, Cotter (5 Per Pack)
23
8060-486
Rivet, Blind-dh Ss54 Zinc (20 Per Pack)
24
8050-127
Washer, Flat- #8 X .375 X .049 Z&y (20 Per Pack)
25
1702-369
Duct, Air-clutch W/foil (inc. 26)
26
6606-694
Foil, Clutch Duct-2 Stroke
27
1623-030
Гайка (6 шт в упаковке)
28
0623-797
Винт 10-12x1/2 (10 шт в упаковке)
29
3718-788
Plate, Skid-rear Rh W/foam (inc. 30-32)
30
0617-640
Foam, Skid Plate-rear-rh
31
0617-638
Foam, Skid Plate-middle-rh
32
0617-636
Foam, Skid Plate-frt-rh
33
8061-708
Заклепка -черная (отпуск по 10 шт )
34
3718-789
Plate, Skid-rear Lh W/foam (inc. 35-39)
35
0617-637
Foam, Skid Plate-frt-lh
36
0617-639
Foam, Skid Plate-middle-lh
37
0617-641
Foam, Skid Plate-rear-lh
38
0123-802
Шайба (отпускается по 4 шт)
39
6606-613
Retainer, Tab-side Panel
40
2623-005
Clip, Receptacle-1/4 Turn Stud
41
6606-592
Pin, Retainer-body Plastic (2 Per Pack)
42
1623-129
Винт, 10-12x5/8 (5 шт в упаковке)
43
2612-685
Plate, Exhaust-outlet
44
2612-964
Seal, Exhaust Outlet-7000
45
8061-510
Rivet, Blind-lf Ss58 Black (10 Per Pack)
46
6606-342
Panel, Filler-rh-blk
47
6606-579
Panel, Filler-lh Bk-z3
48
0623-784
Винт 10-12x3/4 (отпускается по 5 шт)
49
2623-001
Retainer, Pushnut-3/16" Stud (4 Per Pack)
50
1623-999
Screw, 1" Rnd Knob-m5x0.8x20mm Lg (4 Per Pack)
51
2602-711
Deflector, Air
52
2602-703
Retainer, Air Deflector
