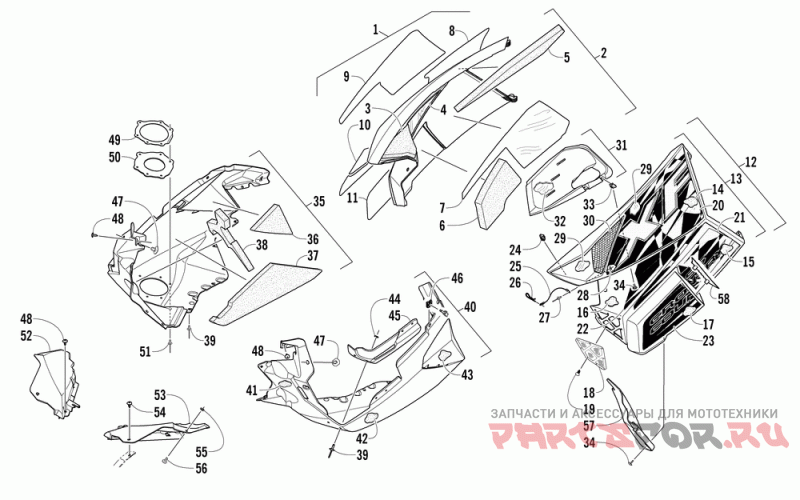

Поддон и обтекатели

Arctic Cat XF 7000 CC SP

Arctic Cat
#oem кодцена
1
3718-946
Panel, Side-rh Blk/wht W/decal(xf Trb Cc) (inc. 2-11)
2
3718-312
Panel, Side-rh With Foam-blk (4 Stroke) (inc. 3-7)
3
0617-626
Foam, Upper Side Panel-frt-rh
4
6606-414
Foil, Protective-middle Side Panel-rh
5
0617-628
Foam, Upper Side Panel-rear-rh
6
0617-632
Foam, Lwr Side Panel-frt-rh
7
6606-416
Foil, Protective-lwr Side Panel-rear-rh
8
0621-730
Decal, Side Panel-upper-rh (xf Hc/cc Blk)
9
0621-742
Decal, Side Panel-lwr-rh (xf Cc)
10
0621-734
Decal, Side Panel-mid-rh(hc/cc/m Std)
11
0621-740
Decal, Side Panel-fwd-rh (xf Cc)
12
3718-877
Panel, Side-lh Blk W/decals (xf 800 Cc) (inc. 13-23)
13
4718-101
Panel, Side-lh-w/foam-blk (inc. 14-19)
14
0617-629
Foam, Upper Side Panel-rear-lh
15
0617-635
Foam, Lwr Side Panel-rear-lh
16
0617-631
Foam, Middle Side Panel-lh
17
0617-681
Foam, Lwr Side Panel-frt-lh
18
2602-704
Screen, Air Deflector
19
0623-269
Клипса - елочка (отпускается по 5 шт)
20
0621-731
Decal, Side Panel-upper-lh (xf Hc/cc Blk)
21
0621-743
Decal, Side Panel-lwr-lh (xf Cc)
22
0621-735
Decal, Side Panel-mid-lh (hc/cc/m Std)
23
0621-741
Decal, Side Panel-fwd-lh (xf Cc)
24
1623-637
Clip, U-nut (m5) (4 Per Pack)
25
0607-447
Трос шпильки
26
0605-283
Hairpin, Cotter (5 Per Pack)
27
8060-486
Rivet, Blind-dh Ss54 Zinc (20 Per Pack)
28
8050-127
Washer, Flat- #8 X .375 X .049 Z&y (20 Per Pack)
29
0619-206
Теплозащитная фольга
30
5706-531
Screen, Side Panel-upr Lh-ptd Blk
31
1702-369
Duct, Air-clutch W/foil (inc. 32)
32
6606-694
Foil, Clutch Duct-2 Stroke
33
1623-030
Гайка (6 шт в упаковке)
34
0623-797
Винт 10-12x1/2 (10 шт в упаковке)
35
3718-788
Plate, Skid-rear Rh W/foam (inc. 36-38)
36
0617-640
Foam, Skid Plate-rear-rh
37
0617-638
Foam, Skid Plate-middle-rh
38
0617-636
Foam, Skid Plate-frt-rh
39
8061-708
Заклепка -черная (отпуск по 10 шт )
40
3718-789
Plate, Skid-rear Lh W/foam (inc. 41-45)
41
0617-637
Foam, Skid Plate-frt-lh
42
0617-639
Foam, Skid Plate-middle-lh
43
0617-641
Foam, Skid Plate-rear-lh
44
0123-802
Шайба (отпускается по 4 шт)
45
6606-613
Retainer, Tab-side Panel
46
2623-005
Clip, Receptacle-1/4 Turn Stud
47
6606-592
Pin, Retainer-body Plastic (2 Per Pack)
48
1623-129
Винт, 10-12x5/8 (5 шт в упаковке)
49
2612-685
Plate, Exhaust-outlet
50
2612-964
Seal, Exhaust Outlet-7000
51
8061-510
Rivet, Blind-lf Ss58 Black (10 Per Pack)
52
6606-342
Panel, Filler-rh-blk
53
6606-579
Panel, Filler-lh Bk-z3
54
0623-784
Винт 10-12x3/4 (отпускается по 5 шт)
55
2623-001
Retainer, Pushnut-3/16" Stud (4 Per Pack)
56
1623-999
Screw, 1" Rnd Knob-m5x0.8x20mm Lg (4 Per Pack)
57
2602-711
Deflector, Air
58
2602-703
Retainer, Air Deflector
