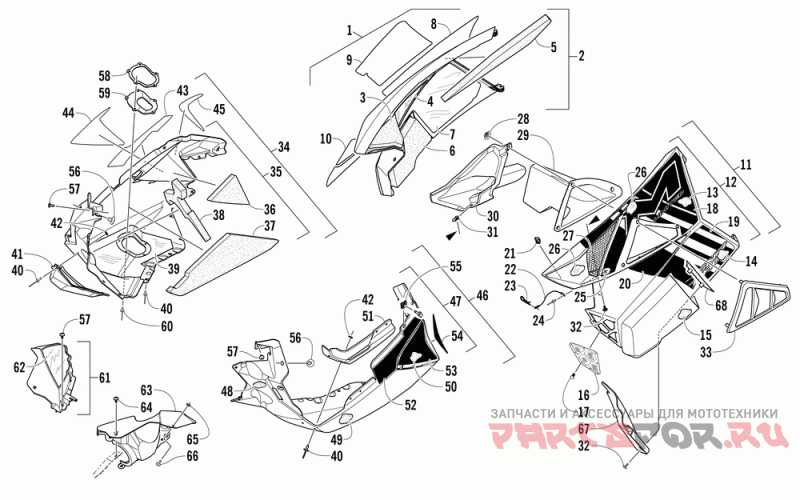

Поддон и обтекатели

Arctic Cat M 9000 SP LTD

Arctic Cat
#oem кодцена
1
4718-054
Panel, Side-rh W/decals(m Trb Ltd Orn) (inc. 2-10) (leuso/leoso)
1
4718-058
Panel, Side-rh W/decals(m Trb Ltd Blk) (inc. 2-10) (leusw/leosw)
2
4718-004
Panel, Side-rh W/foam-orn/clr (4 Strk) (inc. 3-7) (leuso/leoso)
2
3718-660
Panel, Side-rh W/foam-blk/clr (4 Strk) (inc. 3-7) (leusw/leosw)
3
0617-626
Foam, Upper Side Panel-frt-rh
4
6606-414
Foil, Protective-middle Side Panel-rh
5
0617-628
Foam, Upper Side Panel-rear-rh
6
0617-632
Foam, Lwr Side Panel-frt-rh
7
6606-416
Foil, Protective-lwr Side Panel-rear-rh
8
0621-830
Decal, Side Panel-upper-rh (m Ltd Orn) (leuso/leoso)
8
0621-864
Decal, Side Panel-upper-rh (m Ltd Wht) (leusw/leosw)
9
0621-840
Decal, Side Panel-lwr-rh (ltd Orn) (leuso/leoso)
9
0621-874
Decal, Side Panel-lwr-rh (ltd Wht) (leusw/leosw)
10
0621-838
Decal, Side Panel-mid-rh (ltd Orn) (leuso/leoso)
10
0621-872
Decal, Side Panel-mid-rh (ltd Wht) (leusw/leosw)
11
4718-055
Panel, Side-rh W/decals(m Trb Ltd Orn) (inc. 12-20) (leuso/leoso)
11
4718-059
Panel, Side-lh W/decals(m Trb Ltd Blk) (inc. 12-20) (leusw/leosw)
12
4718-005
Panel, Side-lh W/foam-orn/clr (turbo) (inc. 13-17) (leuso/leoso)
12
4718-113
Panel, Side-lh-w/foam-blk/clr-assy (inc. 13-17) (leusw/leosw)
13
0617-669
Foam, Upper Side Panel-rear Lh-4 Strk
14
0617-635
Foam, Lwr Side Panel-rear-lh
15
0617-681
Foam, Lwr Side Panel-frt-lh
16
2602-704
Screen, Air Deflector
17
0623-269
Клипса - елочка (отпускается по 5 шт)
18
0621-833
Decal, Side Panel-upper-lh(m Trb Ltd Orn) (leuso/leoso)
18
0621-867
Decal, Side Panel-upper-lh (m Trb Ltd Wht (leusw/leosw)
19
0621-841
Decal, Side Panel-lwr-lh (ltd Orn) (leuso/leoso)
19
0621-875
Decal, Side Panel-lwr-lh (ltd Wht) (leusw/leosw)
20
0621-839
Decal, Side Panel-mid-lh (ltd Orn) (leuso/leoso)
20
0621-873
Decal, Side Panel-mid-lh (ltd Wht) (leusw/leosw)
21
1623-637
Clip, U-nut (m5) (4 Per Pack)
22
0607-447
Трос шпильки
23
0605-283
Hairpin, Cotter (5 Per Pack)
24
8060-486
Rivet, Blind-dh Ss54 Zinc (20 Per Pack)
25
8050-127
Washer, Flat- #8 X .375 X .049 Z&y (20 Per Pack)
26
0619-206
Теплозащитная фольга
27
5706-531
Screen, Side Panel-upr Lh-ptd Blk
28
1623-469
Гайка (отпуск.по 4 шт)
29
0708-596
Duct, Heat-turbo-routed
30
2602-457
Duct, Belt Cooling-4 Strk
31
1623-030
Гайка (6 шт в упаковке)
32
0623-797
Винт 10-12x1/2 (10 шт в упаковке)
33
0608-648
Cover, Duct-heat-turbo
34
4718-008
Plate, Skid-orn W/clr-rh W/decal (inc. 35-45) (leuso/leoso)
34
4718-032
Plate, Skid-blk/clr-rh W/decal (inc. 35-45) (leusw/leosw)
35
4718-006
Plate, Skid-orn W/clr-rh W/foam (inc. 36-42) (leuso/leoso)
35
3718-744
Plate, Skid-blk/clr-rh W/foam (inc. 36-42) (leusw/leosw
36
0617-640
Foam, Skid Plate-rear-rh
37
0617-638
Foam, Skid Plate-middle-rh
38
0617-636
Foam, Skid Plate-frt-rh
39
2612-850
Foil, Skid Plate-resonator
40
8061-708
Заклепка -черная (отпуск по 10 шт )
41
2612-754
Shield, Resonator-skid Plate
42
0123-802
Шайба (отпускается по 4 шт)
43
0621-842
Decal, Skid Plate-upper-rh (ltd Orn) (leuso/leoso)
43
0621-876
Decal, Skid Plate-upper-rh (wht Ltd) (leusw/leosw)
44
0621-844
Decal, Skid Plate-lower-rh (ltd Orn) (leuso/leoso)
44
0621-878
Decal, Skid Plate-lwr-rh (wht Ltd) (leusw/leosw)
45
0621-846
Decal, Skid Plate-rear-rh (ltd Orn) (leuso/leoso)
45
0621-880
Decal, Skid Plate-rear-rh (wht Ltd) (leusw/leosw)
46
4718-009
Plate, Skid-orn W/clr-lh W/decal (inc. 47-54) (leuso/leoso)
46
4718-033
Plate, Skid-blk/clr-lh W/decal (inc. 47-54) (leusw/leosw)
47
4718-007
Plate, Skid-orn W/clr-lh W/foam (inc. 48-51) (leuso/leoso)
47
3718-745
Plate, Skid-blk/clr-lh W/foam (inc. 48-51) (leusw/leosw)
48
0617-637
Foam, Skid Plate-frt-lh
49
0617-639
Foam, Skid Plate-middle-lh
50
0617-641
Foam, Skid Plate-rear-lh
51
6606-613
Retainer, Tab-side Panel
52
0621-843
Decal, Skid Plate-upper-lh (ltd Orn) (leuso/leoso)
52
0621-877
Decal, Skid Plate-upper-lh (wht Ltd) (leusw/leosw)
53
0621-845
Decal, Skid Plate-lower-lh (ltd Orn) (leuso/leoso)
53
0621-879
Decal, Skid Plate-lwr-lh (wht Ltd) (leusw/leosw)
54
0621-847
Decal, Skid Plate-rear-lh (ltd Orn) (leuso/leoso)
54
0621-881
Decal, Skid Plate-rear-lh (wht Ltd) (leusw/leosw)
55
1623-748
Clip, Receptacle-1/4 Turn Stud
56
6606-592
Pin, Retainer-body Plastic (2 Per Pack)
57
1623-129
Винт, 10-12x5/8 (5 шт в упаковке)
58
2612-796
Plate, Exhaust Outlet
59
2612-799
Seal, Exhaust Outlet-4 Strk
60
8061-710
Rivet, Blind-lf Ss68 Black (20 Per Pack)
61
3718-302
Panel, Filler W/foil-rh (inc. 62)
62
6606-404
Foil, Protective-filler Panel-rh
63
6606-351
Panel, Filler-lh-turbo-blk
64
0623-784
Винт 10-12x3/4 (отпускается по 5 шт)
65
2623-001
Retainer, Pushnut-3/16" Stud (4 Per Pack)
66
1623-999
Screw, 1" Rnd Knob-m5x0.8x20mm Lg (4 Per Pack)
67
2602-711
Deflector, Air
68
2602-703
Retainer, Air Deflector
