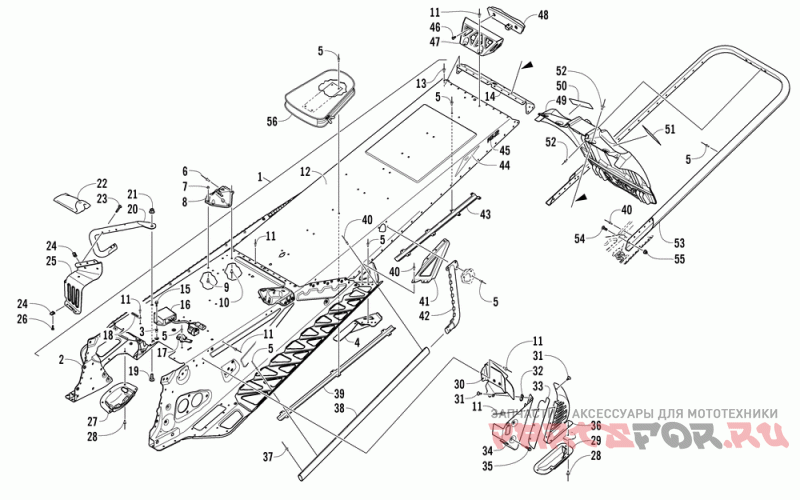

Тунель ,задний бампер и брызговик

Arctic Cat M 9000 HCR

Arctic Cat
#oem кодцена
-
2707-360
Chassis, 162hcr 4strk-s/p Assy Ptd Ta Grn
1
2707-357
Tunnel, Mt-162 Hcr-s/p Assy-ptd Ta Grn (inc. 2-14)
2
2707-345
Tunnel, Front-assy-ptd Ta Grn (inc. 3-5)
3
1623-797
Insert, M5x0.8-al Series Als4-580-3.3 (2 Per Pack)
4
2707-342
Brkt, Rear Susp-outer-rh-ptd Ta Grn
4
2707-343
Brkt, Rear Susp-outer-lh-ptd Ta Grn
5
8060-686
Заклепка (10 шт в упак.)
6
1623-206
Rivet, 3/16 Huck-m9 (5 Per Pack)
7
8422-502
Nut, M5 X 1 Nyl Z&y (8 Per Pack)
8
2707-340
Brkt, Spar Support-rh-ptd Ta Grn
8
2707-341
Brkt, Spar Support-lh-ptd Ta Grn
9
8476-512
Screw, Mach-tstrh M5x0.8x12 Z&y (6 Per Pack)
10
1623-257
Rivet, 3/16 Huck-m5 (10 Per Pack)
11
8060-682
Заклепка (20 шт в упаковке)
12
2707-355
Tunnel, Rear-162 Hcr-ptd Ta Grn
13
8060-484
Rivet, Blind-dh Ss53 Zinc (10 Per Pack)
14
2707-315
End Cap, Tunnel-ptd Ta Grn
15
8408-516
Винт M5x0.8x16 (4 шт в упаковке)
16
0630-288
Регулятор ,3-фазный-40а
17
0645-709
Clip, Battery Cable (2 Per Pack)
18
1623-984
Зажим (2 шт в упаковке)
19
8476-820
Винт M8x1.25x20
20
1707-454
Hook, Toe-rh Ptd Blk
20
1707-455
Hook, Toe-lh Ptd Blk
21
8427-802
Гайка M8x1.25
22
0744-064
Kit, Tool Bag-4 Stroke-assy
23
8468-536
Screw, Mach-tspnh M5x0.8x35 Cl8.8 W/2353 (3 Per Pack)
24
1623-637
Clip, U-nut (m5) (4 Per Pack)
25
2707-004
Toe Stop, Rh-formed-ptd Team Arctic Grn
25
2707-005
Toe Stop, Lh-formed-ptd Team Arctic Grn
26
8470-516
Screw, Mach-tspnh M5x1.0x16 Cl8.8 Z&y (2 Per Pack)
27
1607-109
Protector, Chain Case
28
8061-708
Заклепка -черная (отпуск по 10 шт )
29
0607-351
Protector, Brake Disc-bottom
30
1702-278
Mount, Clutch Guard-assy
31
1623-129
Винт, 10-12x5/8 (5 шт в упаковке)
32
1623-052
Nut, U (2 Per Pack)
33
2707-007
Guard, Toe-ptd Team Arctic Green
34
1607-118
Cover, Shield-brake Caliper
35
8408-613
Screw, Cap-hfh M6x1.0x12 Cl8.8 Z&y W/2353 (2 Per Pack)
36
2707-006
Cover, Shield-brake Disc-ptd Ta Grn
37
1623-130
Rivet, 3/16 Huck-m4 (6 Per Pack)
38
2707-346
Edge, Running Board-ptd Ta Grn
39
0630-307
Protector, Taillgiht Harness-153/162"
40
1623-241
Rivet, 3/16 Huck-m6 (5 Per Pack)
41
2707-336
Gusset, Running Board-rh-ptd Ta Grn
41
2707-337
Gusset, Running Board-lh-ptd Ta Grn
42
2707-338
Gusset, Tunnel-rh-ptd Ta Grn
42
2707-339
Gusset, Tunnel-lh-ptd Ta Grn
43
0630-280
Protector, Taillight Harness-448.5mm
44
0621-990
Decal, Reflector-red
45
0621-753
Decal, Tunnel-"162"
46
8470-512
Screw, Mach-tspnh M5x.8x12 Cl8.8 Z&y (2 Per Pack)
47
0730-198
Housing, Taillight-ptd Team Arctic Grn
48
0609-898
Taillight, Red
49
6606-394
Flap, Snow-mtn-blk
50
5611-852
Decal, Warning-towing/track-french (french)
51
5611-853
Decal, Warning-towing/track-english (english)
52
8061-706
Rivet, Blind-lf Ss64 Black (10 Per Pack)
53
2707-011
Bumper, Rear-162"-ptd Wht
54
8476-620
Винт M6x1.0x2 (отпуск по 5 шт )
55
8427-602
Гайка M6x1.0 (отпуск.по 5 шт)
56
6606-615
Bag, Belt
