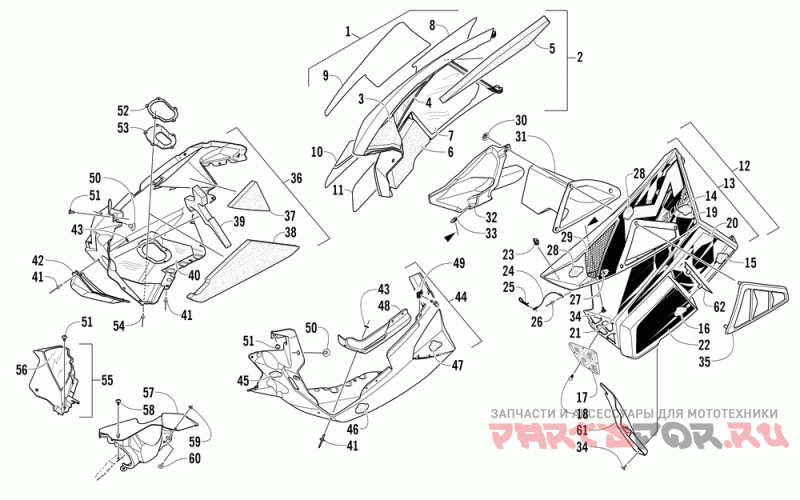

Поддон и обтекатели

Arctic Cat M 9000

Arctic Cat
#oem кодцена
1
3718-950
Panel, Side-rh Blk/grn W/decal(m Trb Std) (inc. 2-11)
2
3718-312
Panel, Side-rh With Foam-blk (4 Stroke) (inc. 3-7)
3
0617-626
Foam, Upper Side Panel-frt-rh
4
6606-414
Foil, Protective-middle Side Panel-rh
5
0617-628
Foam, Upper Side Panel-rear-rh
6
0617-632
Foam, Lwr Side Panel-frt-rh
7
6606-416
Foil, Protective-lwr Side Panel-rear-rh
8
0621-746
Decal, Side Panel-upper-rh (m 9000 Std)
9
0621-750
Decal, Side Panel-lwr-rh (m Std)
10
0621-734
Decal, Side Panel-mid-rh(hc/cc/m Std)
11
0621-748
Decal, Side Panel-fwd-rh (m Std)
12
3718-951
Panel, Side-lh Blk/grn W/decal(m Trb Std) (inc. 13-22)
13
4718-105
Panel, Side-lh-w/foam-blk (turbo) (inc. 14-18)
14
0617-669
Foam, Upper Side Panel-rear Lh-4 Strk
15
0617-635
Foam, Lwr Side Panel-rear-lh
16
0617-681
Foam, Lwr Side Panel-frt-lh
17
2602-704
Screen, Air Deflector
18
0623-269
Клипса - елочка (отпускается по 5 шт)
19
0621-747
Decal, Side Panel-upper-lh (m 9000 Std)
20
0621-751
Decal, Side Panel-lwr-lh (m Std)
21
0621-735
Decal, Side Panel-mid-lh (hc/cc/m Std)
22
0621-749
Decal, Side Panel-fwd-lh (m Std)
23
1623-637
Clip, U-nut (m5) (4 Per Pack)
24
0607-447
Трос шпильки
25
0605-283
Hairpin, Cotter (5 Per Pack)
26
8060-486
Rivet, Blind-dh Ss54 Zinc (20 Per Pack)
27
8050-127
Washer, Flat- #8 X .375 X .049 Z&y (20 Per Pack)
28
0619-206
Теплозащитная фольга
29
5706-531
Screen, Side Panel-upr Lh-ptd Blk
30
1623-469
Гайка (отпуск.по 4 шт)
31
0708-596
Duct, Heat-turbo-routed
32
2602-457
Duct, Belt Cooling-4 Strk
33
1623-030
Гайка (6 шт в упаковке)
34
0623-797
Винт 10-12x1/2 (10 шт в упаковке)
35
0608-648
Cover, Duct-heat-turbo
36
3718-422
Plate, Skid-rh-w/foam (inc. 37-43)
37
0617-640
Foam, Skid Plate-rear-rh
38
0617-638
Foam, Skid Plate-middle-rh
39
0617-636
Foam, Skid Plate-frt-rh
40
2612-850
Foil, Skid Plate-resonator
41
8061-708
Заклепка -черная (отпуск по 10 шт )
42
2612-754
Shield, Resonator-skid Plate
43
0123-802
Шайба (отпускается по 4 шт)
44
3718-789
Plate, Skid-rear Lh W/foam (inc. 45-48)
45
0617-637
Foam, Skid Plate-frt-lh
46
0617-639
Foam, Skid Plate-middle-lh
47
0617-641
Foam, Skid Plate-rear-lh
48
6606-613
Retainer, Tab-side Panel
49
1623-748
Clip, Receptacle-1/4 Turn Stud
50
6606-592
Pin, Retainer-body Plastic (2 Per Pack)
51
1623-129
Винт, 10-12x5/8 (5 шт в упаковке)
52
2612-796
Plate, Exhaust Outlet
53
2612-799
Seal, Exhaust Outlet-4 Strk
54
8061-710
Rivet, Blind-lf Ss68 Black (20 Per Pack)
55
3718-302
Panel, Filler W/foil-rh (inc. 56)
56
6606-404
Foil, Protective-filler Panel-rh
57
6606-351
Panel, Filler-lh-turbo-blk
58
0623-784
Винт 10-12x3/4 (отпускается по 5 шт)
59
2623-001
Retainer, Pushnut-3/16" Stud (4 Per Pack)
60
1623-999
Screw, 1" Rnd Knob-m5x0.8x20mm Lg (4 Per Pack)
61
2602-711
Deflector, Air
62
2602-703
Retainer, Air Deflector
