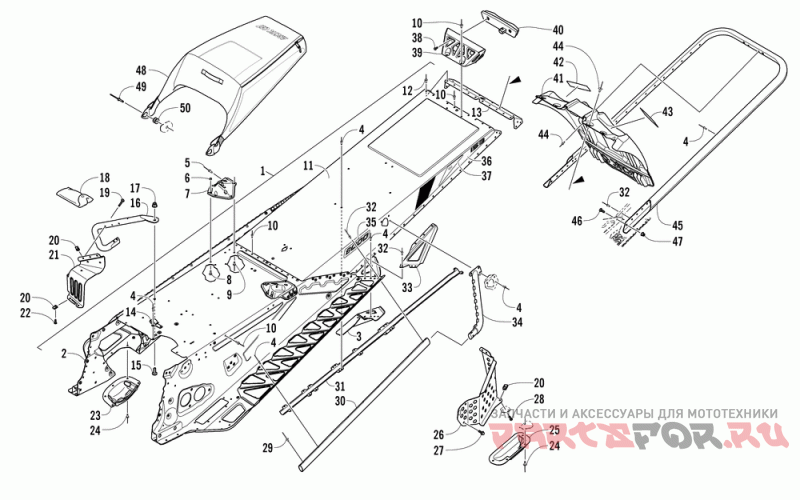

Туннель, задний бампер, и снег узел закрылка (leuso / leusw)

Arctic Cat M 8000 SP LTD ES

Arctic Cat
#oem кодцена
-
2707-092
Chassis, 153" Hcr-2 Strk-ptd Blk (leuso)
-
2707-107
Chassis, 153" Hcr-2 Strk-ptd Wht (leusw)
1
2707-302
Tunnel, Mt-153 Hcr-s/p Assy-ptd Blk (inc. 2-13) (leuso)
1
2707-303
Tunnel, Mt-153 Hcr-s/p Assy-ptd Wht (inc. 2-13) (leusw)
2
2707-294
Tunnel, Front-assy-ptd Blk (inc. 3-4) (leuso)
2
2707-297
Tunnel, Front-assy-ptd Wht (inc. 3-4) (leusw)
3
2707-286
Brkt, Rear Susp-outer-rh-ptd Blk (leuso)
3
2707-287
Brkt, Rear Susp-outer-lh-ptd Blk (leuso)
3
2707-290
Brkt, Rear Susp-outer-rh-ptd Wht (leusw)
3
2707-291
Brkt, Rear Susp-outer-lh-ptd Wht (leusw)
4
8060-706
Rivet, Blind-dh Ss64 Blk (leuso) (10 Per Pack)
4
8060-686
Rivet, Blind-dh Ss64 Zinc (leusw) (10 Per Pack)
5
1623-206
Rivet, 3/16 Huck-m9 (5 Per Pack)
6
8422-502
Nut, M5 X 1 Nyl Z&y (8 Per Pack)
7
1707-692
Brkt, Spar Support-rh-ptd Blk (leuso)
7
1707-693
Brkt, Spar Support-lh-ptd Blk (leuso)
7
1707-904
Brkt, Spar Support-rh-ptd Wht (leusw)
7
1707-905
Brkt, Spar Support-lh-ptd Wht (leusw)
8
8476-512
Screw, Mach-tstrh M5x0.8x12 Z&y (6 Per Pack)
9
1623-257
Rivet, 3/16 Huck-m5 (10 Per Pack)
10
8060-702
Rivet, Blind-dh Ss62 Blk (leuso) (25 Per Pack)
10
8060-682
Rivet, Blind-dh Ss62 Zinc (leusw) (20 Per Pack)
11
2707-300
Tunnel, Rear-153-ptd Blk (leuso)
11
2707-301
Tunnel, Rear-153-ptd Wht (leusw)
12
8060-504
Rivet, Blind-dh Ss53 Blk (leuso) (20 Per Pack)
12
8060-484
Rivet, Blind-dh Ss53 Zinc (leusw) (10 Per Pack)
13
1707-725
End Cap, Tunnel-ptd Blk (leuso)
13
1707-834
End Cap, Tunnel-ptd Wht (leusw)
14
0645-709
Clip, Battery Cable (2 Per Pack)
15
8476-820
Винт M8x1.25x20
16
1707-454
Hook, Toe-rh Ptd Blk
16
1707-455
Hook, Toe-lh Ptd Blk
17
8427-802
Гайка M8x1.25
18
0744-081
Kit, Tool Bag-2 Stroke-assy
19
8468-536
Screw, Mach-tspnh M5x0.8x35 Cl8.8 W/2353 (3 Per Pack)
20
1623-637
Clip, U-nut (m5) (4 Per Pack)
21
1707-556
Toe Stop, Rh - Formed-ptd Blk (leuso)
21
1707-557
Toe Stop, Lh - Formed-ptd Blk (leuso)
21
1707-802
Toe Stop, Rh - Formed-ptd Wht (leusw)
21
1707-803
Toe Stop, Lh - Formed-ptd Wht (leusw)
22
8470-516
Screw, Mach-tspnh M5x1.0x16 Cl8.8 Z&y (2 Per Pack)
23
1607-109
Protector, Chain Case
24
8061-708
Заклепка -черная (отпуск по 10 шт )
25
0607-351
Protector, Brake Disc-bottom
26
2707-044
Cover, Shield-brake Disc-ptd Blk (leuso)
26
2707-084
Cover, Shield-brk Disc-ptd Wht (leusw)
27
8408-613
Screw, Cap-hfh M6x1.0x12 Cl8.8 Z&y W/2353 (2 Per Pack)
28
8470-520
Screw, Mach-tspnh M5x0.8x20 Cl8.8 Z&y (4 Per Pack)
29
1623-130
Rivet, 3/16 Huck-m4 (6 Per Pack)
30
1707-697
Edge, Running Board-ptd Blk (leuso)
30
1707-899
Edge, Running Board-ptd Wht (leusw)
31
0630-317
Protector, Taillight Harness-153"
32
1623-241
Rivet, 3/16 Huck-m6 (5 Per Pack)
33
2707-288
Gusset, Running Board-rh-ptd Blk (leuso)
33
2707-289
Gusset, Running Board-lh-ptd Blk (leuso)
33
2707-292
Gusset, Running Board-rh-ptd Wht (leusw)
33
2707-293
Gusset, Running Board-lh-ptd Wht (leusw)
34
1707-700
Gusset, Tunnel-rh-ptd Blk (leuso)
34
1707-701
Gusset, Tunnel-lh-ptd Blk (leuso)
34
1707-908
Gusset, Tunnel-rh-ptd Wht (leusw)
34
1707-909
Gusset, Tunnel-lh-ptd Wht (leusw)
35
0621-828
Decal, Tunnel-"8000" (ltd Orn) (leuso)
35
0621-862
Decal, Tunnel-"8000" (ltd Wht) (leusw)
36
0621-852
Decal, Tunnel-"153"-rear-rh (ltd Orn) (leuso)
36
0621-853
Decal, Tunnel-"153"-rear-lh (ltd Orn) (leuso)
36
0621-886
Decal, Tunnel-rear-"153"-rh (wht Ltd) (leusw)
36
0621-887
Decal, Tunnel-rear-"153"-lh (wht Ltd) (leusw)
37
0621-990
Decal, Reflector-red
38
8470-512
Screw, Mach-tspnh M5x.8x12 Cl8.8 Z&y (2 Per Pack)
39
0730-164
Housing, Taillight-ptd Blk (leuso)
39
0730-185
Housing, Taillight-mc Ptd Wht (leusw)
40
0609-898
Taillight, Red
41
6606-394
Flap, Snow-mtn-blk
42
5611-852
Decal, Warning-towing/track-french (french)
43
5611-853
Decal, Warning-towing/track-english (english)
44
8061-706
Rivet, Blind-lf Ss64 Black (10 Per Pack)
45
2707-093
Bumper, Rear-153"-ptd-orn (leuso)
45
1707-971
Bumper, Rear-153"-ptd-blk (leusw)
46
8476-620
Винт M6x1.0x2 (отпуск по 5 шт )
47
8427-602
Гайка M6x1.0 (отпуск.по 5 шт)
48
6606-600
Saddlebag, Rear
49
8060-630
Rivet, Blind-dh Aa68 Blk (10 Per Pack)
50
1623-940
Grommet, Seat Bag (4 Per Pack)
