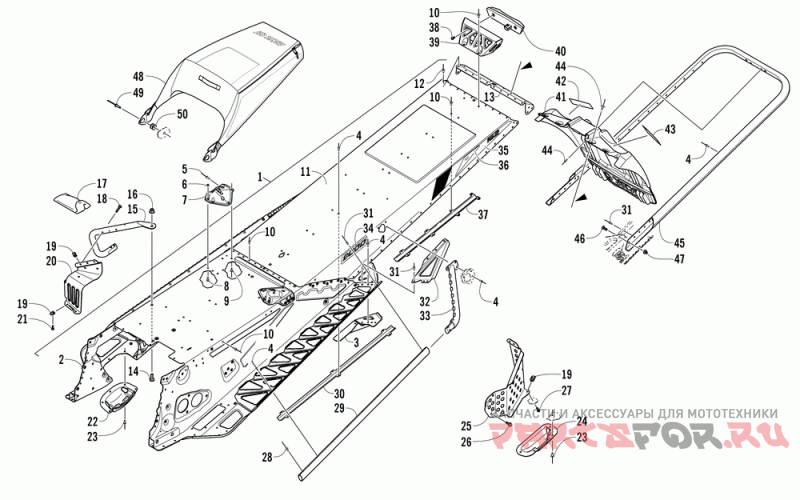

Туннель, задний бампер, и снег узел закрылка (peuso / peoso / peusw)

Arctic Cat M 8000 SP LTD

Arctic Cat
#oem кодцена
-
2707-094
Chassis, 162" Hcr-2 Strk-ptd Blk (peuso/peoso)
-
2707-116
Chassis, 162" Hcr-2 Strk-ptd Wht (peusw)
1
2707-307
Tunnel, Mt-162 Hcr-s/p Assy-ptd Blk (inc. 2-13) (peuso/peoso)
1
2707-308
Tunnel, Mt-162 Hcr-s/p Assy-ptd Wht (inc. 2-13) (peusw)
2
2707-294
Tunnel, Front-assy-ptd Blk (inc. 3-4) (peuso/peoso)
2
2707-297
Tunnel, Front-assy-ptd Wht (inc. 3-4) (peusw)
3
2707-286
Brkt, Rear Susp-outer-rh-ptd Blk (peuso/peoso)
3
2707-287
Brkt, Rear Susp-outer-lh-ptd Blk (peuso/peoso)
3
2707-290
Brkt, Rear Susp-outer-rh-ptd Wht (peusw)
3
2707-291
Brkt, Rear Susp-outer-lh-ptd Wht (peusw)
4
8060-706
Rivet, Blind-dh Ss64 Blk (peuso/peoso) (10 Per Pack)
4
8060-686
Rivet, Blind-dh Ss64 Zinc (peusw) (10 Per Pack)
5
1623-206
Rivet, 3/16 Huck-m9 (5 Per Pack)
6
8422-502
Nut, M5 X 1 Nyl Z&y (8 Per Pack)
7
1707-692
Brkt, Spar Support-rh-ptd Blk (peuso/peoso)
7
1707-693
Brkt, Spar Support-lh-ptd Blk (peuso/peoso)
7
1707-904
Brkt, Spar Support-rh-ptd Wht (peusw)
7
1707-905
Brkt, Spar Support-lh-ptd Wht (peusw)
8
8476-512
Screw, Mach-tstrh M5x0.8x12 Z&y (6 Per Pack)
9
1623-257
Rivet, 3/16 Huck-m5 (10 Per Pack)
10
8060-702
Rivet, Blind-dh Ss62 Blk (peuso/peoso) (25 Per Pack)
10
8060-682
Rivet, Blind-dh Ss62 Zinc (peusw) (20 Per Pack)
11
2707-159
Tunnel, Rear-162" Hcr-ptd Blk (peuso/peoso)
11
2707-160
Tunnel, Rear-162" Hcr-ptd Wht (peusw)
12
8060-504
Rivet, Blind-dh Ss53 Blk (peuso/peoso) (20 Per Pack)
12
8060-484
Rivet, Blind-dh Ss53 Zinc (peusw) (10 Per Pack)
13
1707-725
End Cap, Tunnel-ptd Blk (peuso/peoso)
13
1707-834
End Cap, Tunnel-ptd Wht (peusw)
14
8476-820
Винт M8x1.25x20
15
1707-454
Hook, Toe-rh Ptd Blk
15
1707-455
Hook, Toe-lh Ptd Blk
16
8427-802
Гайка M8x1.25
17
0744-081
Kit, Tool Bag-2 Stroke-assy
18
8468-536
Screw, Mach-tspnh M5x0.8x35 Cl8.8 W/2353 (3 Per Pack)
19
1623-637
Clip, U-nut (m5) (4 Per Pack)
20
1707-556
Toe Stop, Rh - Formed-ptd Blk (peuso/peoso)
20
1707-557
Toe Stop, Lh - Formed-ptd Blk (peuso/peoso)
20
1707-802
Toe Stop, Rh - Formed-ptd Wht (peusw)
20
1707-803
Toe Stop, Lh - Formed-ptd Wht (peusw)
21
8470-516
Screw, Mach-tspnh M5x1.0x16 Cl8.8 Z&y (2 Per Pack)
22
1607-109
Protector, Chain Case
23
8061-708
Заклепка -черная (отпуск по 10 шт )
24
0607-351
Protector, Brake Disc-bottom
25
2707-044
Cover, Shield-brake Disc-ptd Blk (peuso/peoso)
25
2707-084
Cover, Shield-brk Disc-ptd Wht (peusw)
26
8408-613
Screw, Cap-hfh M6x1.0x12 Cl8.8 Z&y W/2353 (2 Per Pack)
27
8470-520
Screw, Mach-tspnh M5x0.8x20 Cl8.8 Z&y (4 Per Pack)
28
1623-130
Rivet, 3/16 Huck-m4 (6 Per Pack)
29
1707-697
Edge, Running Board-ptd Blk (peuso/peoso)
29
1707-899
Edge, Running Board-ptd Wht (peusw)
30
0630-307
Protector, Taillgiht Harness-153/162"
31
1623-241
Rivet, 3/16 Huck-m6 (5 Per Pack)
32
2707-288
Gusset, Running Board-rh-ptd Blk (peuso/peoso)
32
2707-289
Gusset, Running Board-lh-ptd Blk (peuso/peoso)
32
2707-292
Gusset, Running Board-rh-ptd Wht (peusw)
32
2707-293
Gusset, Running Board-lh-ptd Wht (peusw)
33
1707-700
Gusset, Tunnel-rh-ptd Blk (peuso/peoso)
33
1707-701
Gusset, Tunnel-lh-ptd Blk (peuso/peoso)
33
1707-908
Gusset, Tunnel-rh-ptd Wht (peusw)
33
1707-909
Gusset, Tunnel-lh-ptd Wht (peusw)
34
0621-828
Decal, Tunnel-"8000" (ltd Orn) (peuso/peoso)
34
0621-862
Decal, Tunnel-"8000" (ltd Wht) (peusw)
35
0621-854
Decal, Tunnel-"162"-rear-rh (ltd Orn) (peuso/peoso)
35
0621-855
Decal, Tunnel-"162"-rear-lh (ltd Orn) (peuso/peoso)
35
0621-888
Decal, Tunnel-rear-"162"-rh (wht Ltd) (peusw)
35
0621-889
Decal, Tunnel-rear-"162"-lh (wht Ltd) (peusw)
36
0621-990
Decal, Reflector-red
37
0630-280
Protector, Taillight Harness-448.5mm
38
8470-512
Screw, Mach-tspnh M5x.8x12 Cl8.8 Z&y (2 Per Pack)
39
0730-164
Housing, Taillight-ptd Blk (peuso/peoso)
39
0730-185
Housing, Taillight-mc Ptd Wht (peusw)
40
0609-898
Taillight, Red
41
6606-394
Flap, Snow-mtn-blk
42
5611-852
Decal, Warning-towing/track-french (french)
43
5611-853
Decal, Warning-towing/track-english (english)
44
8061-706
Rivet, Blind-lf Ss64 Black (10 Per Pack)
45
2707-095
Bumper, Rear-162"-ptd-orn (peuso/peoso)
45
2707-010
Bumper, Rear-162"-ptd-blk (peusw)
46
8476-620
Винт M6x1.0x2 (отпуск по 5 шт )
47
8427-602
Гайка M6x1.0 (отпуск.по 5 шт)
48
6606-600
Saddlebag, Rear
49
8060-630
Rivet, Blind-dh Aa68 Blk (10 Per Pack)
50
1623-940
Grommet, Seat Bag (4 Per Pack)
