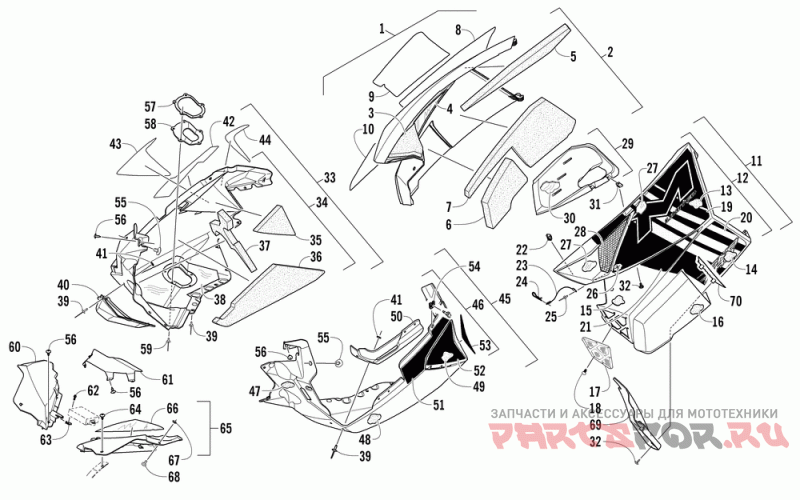

Поддон и обтекатели

Arctic Cat M 8000 SP LTD

Arctic Cat
#oem кодцена
1
4718-014
Panel, Side-rh Orn/blk Decals(m8 Ltd) (inc. 2-10) (psuso/psoso/peuso/peoso)
1
4718-034
Panel, Side-rh W/decals(m8 Ltd Blk/wht) (inc. 2-10) (psusw/psosw/peusw)
2
4718-002
Panel, Side-rh W/foam-orn/clr (2 Strk) (inc. 3-7) (psuso/psoso/peuso/peoso)
2
3718-658
Panel, Side-rh W/foam-blk/clr (2 Strk) (inc. 3-7) (psusw/psosw/peusw)
3
0617-626
Foam, Upper Side Panel-frt-rh
4
6606-414
Foil, Protective-middle Side Panel-rh
5
0617-628
Foam, Upper Side Panel-rear-rh
6
0617-632
Foam, Lwr Side Panel-frt-rh
7
0617-634
Foam, Lwr Side Panel-rear-rh
8
0621-830
Decal, Side Panel-upper-rh (m Ltd Orn) (psuso/psoso/peuso/peoso)
8
0621-864
Decal, Side Panel-upper-rh (m Ltd Wht) (psusw/psosw/peusw)
9
0621-840
Decal, Side Panel-lwr-rh (ltd Orn) (psuso/psoso/peuso/peoso)
9
0621-874
Decal, Side Panel-lwr-rh (ltd Wht) (psusw/psosw/peusw)
10
0621-838
Decal, Side Panel-mid-rh (ltd Orn) (psuso/psoso/peuso/peoso)
10
0621-872
Decal, Side Panel-mid-rh (ltd Wht) (psusw/psosw/peusw)
11
4718-015
Panel, Side-lh Orn/blk Decals(m8 Ltd) (inc. 12-21) (psuso/psoso/peuso/peoso)
11
4718-035
Panel, Side-lh W/decals(m8 Ltd Blk/wht) (inc. 12-21) (psusw/psosw/peusw)
12
4718-003
Panel, Side-lh W/foam-orn/clr (inc. 13-18) (psuso/psoso/peuso/peoso)
12
4718-109
Panel, Side-lh-w/foam-blk/clr (inc. 13-18) (psusw/psosw/peusw)
13
0617-629
Foam, Upper Side Panel-rear-lh
14
0617-635
Foam, Lwr Side Panel-rear-lh
15
0617-631
Foam, Middle Side Panel-lh
16
0617-681
Foam, Lwr Side Panel-frt-lh
17
2602-704
Screen, Air Deflector
18
0623-269
Клипса - елочка (отпускается по 5 шт)
19
0621-831
Decal, Side Panel-upper-lh (m Ltd Orn) (psuso/psoso/peuso/peoso)
19
0621-865
Decal, Side Panel-upper-lh (m Ltd Wht) (psusw/psosw/peusw)
20
0621-841
Decal, Side Panel-lwr-lh (ltd Orn) (psuso/psoso/peuso/peoso)
20
0621-875
Decal, Side Panel-lwr-lh (ltd Wht) (psusw/psosw/peusw)
21
0621-839
Decal, Side Panel-mid-lh (ltd Orn) (psuso/psoso/peuso/peoso)
21
0621-873
Decal, Side Panel-mid-lh (ltd Wht) (psusw/psosw/peusw)
22
1623-637
Clip, U-nut (m5) (4 Per Pack)
23
0607-447
Трос шпильки
24
0605-283
Hairpin, Cotter (5 Per Pack)
25
8060-486
Rivet, Blind-dh Ss54 Zinc (20 Per Pack)
26
8050-127
Washer, Flat- #8 X .375 X .049 Z&y (20 Per Pack)
27
0619-206
Теплозащитная фольга
28
5706-531
Screen, Side Panel-upr Lh-ptd Blk
29
1702-369
Duct, Air-clutch W/foil (inc. 30)
30
6606-694
Foil, Clutch Duct-2 Stroke
31
1623-030
Гайка (6 шт в упаковке)
32
0623-797
Винт 10-12x1/2 (10 шт в упаковке)
33
4718-008
Plate, Skid-orn W/clr-rh W/decal (inc. 34-44) (psuso/psoso/peuso/peoso)
33
4718-032
Plate, Skid-blk/clr-rh W/decal (inc. 34-44) (psusw/psosw/peusw)
34
4718-006
Plate, Skid-orn W/clr-rh W/foam (inc. 35-41) (psuso/psoso/peuso/peoso)
34
3718-744
Plate, Skid-blk/clr-rh W/foam (inc. 35-41) (psusw/psosw/peusw)
35
0617-640
Foam, Skid Plate-rear-rh
36
0617-638
Foam, Skid Plate-middle-rh
37
0617-636
Foam, Skid Plate-frt-rh
38
2612-850
Foil, Skid Plate-resonator
39
8061-708
Заклепка -черная (отпуск по 10 шт )
40
2612-754
Shield, Resonator-skid Plate
41
0123-802
Шайба (отпускается по 4 шт)
42
0621-842
Decal, Skid Plate-upper-rh (ltd Orn) (psuso/psoso/peuso/peoso)
42
0621-876
Decal, Skid Plate-upper-rh (wht Ltd) (psusw/psosw/peusw)
43
0621-844
Decal, Skid Plate-lower-rh (ltd Orn) (psuso/psoso/peuso/peoso)
43
0621-878
Decal, Skid Plate-lwr-rh (wht Ltd) (psusw/psosw/peusw)
44
0621-846
Decal, Skid Plate-rear-rh (ltd Orn) (psuso/psoso/peuso/peoso)
44
0621-880
Decal, Skid Plate-rear-rh (wht Ltd) (psusw/psosw/peusw)
45
4718-009
Plate, Skid-orn W/clr-lh W/decal (inc. 46-53) (psuso/psoso/peuso/peoso)
45
4718-033
Plate, Skid-blk/clr-lh W/decal (inc. 46-53) (psusw/psosw/peusw)
46
4718-007
Plate, Skid-orn W/clr-lh W/foam (inc. 47-50) (psuso/psoso/peuso/peoso)
46
3718-745
Plate, Skid-blk/clr-lh W/foam (inc. 47-50) (psusw/psosw/peusw)
47
0617-637
Foam, Skid Plate-frt-lh
48
0617-639
Foam, Skid Plate-middle-lh
49
0617-641
Foam, Skid Plate-rear-lh
50
6606-613
Retainer, Tab-side Panel
51
0621-843
Decal, Skid Plate-upper-lh (ltd Orn) (psuso/psoso/peuso/peoso)
51
0621-877
Decal, Skid Plate-upper-lh (wht Ltd) (psusw/psosw/peusw)
52
0621-845
Decal, Skid Plate-lower-lh (ltd Orn) (psuso/psoso/peuso/peoso)
52
0621-879
Decal, Skid Plate-lwr-lh (wht Ltd) (psusw/psosw/peusw)
53
0621-847
Decal, Skid Plate-rear-lh (ltd Orn) (psuso/psoso/peuso/peoso)
53
0621-881
Decal, Skid Plate-rear-lh (wht Ltd) (psusw/psosw/peusw)
54
1623-748
Clip, Receptacle-1/4 Turn Stud
55
6606-592
Pin, Retainer-body Plastic (2 Per Pack)
56
1623-129
Винт, 10-12x5/8 (5 шт в упаковке)
57
2612-796
Plate, Exhaust Outlet
58
2612-795
Seal, Exhaut Outlet-2 Strk
59
8061-710
Rivet, Blind-lf Ss68 Black (20 Per Pack)
60
6606-342
Panel, Filler-rh-blk
61
6606-295
Shield, Heat-ecu
62
8408-620
Винт M6x1.0x20 (4 шт в упаковке)
63
0423-031
Nut, Speed M6 X 1.0 U-type (5 Per Pack)
64
0623-784
Винт 10-12x3/4 (отпускается по 5 шт)
65
3718-303
Panel, Filler W/foil-lh (inc. 66)
66
6606-405
Foil, Protective-filler Panel-lh
67
2623-001
Retainer, Pushnut-3/16" Stud (4 Per Pack)
68
1623-999
Screw, 1" Rnd Knob-m5x0.8x20mm Lg (4 Per Pack)
69
2602-711
Deflector, Air
70
2602-703
Retainer, Air Deflector
