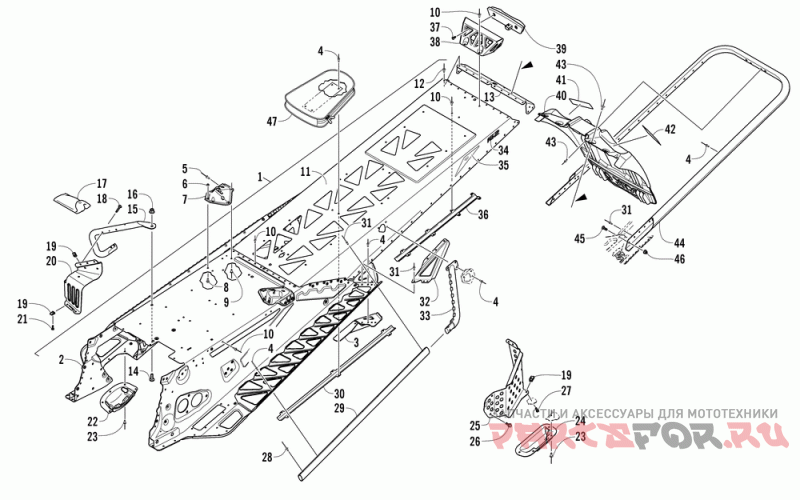

Туннель, задний бампер в сборе (seoso / seosg)

Arctic Cat M 8000 Sno Pro

Arctic Cat
#oem кодцена
-
2707-188
Chassis, 162" 2 Strk-ptd Orn (seoso)
-
2707-187
Chassis, 162" 2 Strk-ptd Ta Grn (seosg)
1
2707-365
Tunnel, Mt-162-s/p Assy-ptd Orn (inc. 2-13) (seoso)
1
2707-366
Tunnel, Mt-162-s/p Assy-ptd Ta Grn (inc. 2-13) (seosg)
2
2707-333
Tunnel, Front-assy-ptd Orn (inc. 3-4) (seoso)
2
2707-345
Tunnel, Front-assy-ptd Ta Grn (inc. 3-4) (seosg)
3
2707-324
Brkt, Rear Susp-outer-rh-ptd Orn (seoso)
3
2707-325
Brkt, Rear Susp-outer-lh-ptd Orn (seoso)
3
2707-342
Brkt, Rear Susp-outer-rh-ptd Ta Grn (seosg)
3
2707-343
Brkt, Rear Susp-outer-lh-ptd Ta Grn (seosg)
4
8060-686
Заклепка (10 шт в упак.)
5
1623-206
Rivet, 3/16 Huck-m9 (5 Per Pack)
6
8422-502
Nut, M5 X 1 Nyl Z&y (8 Per Pack)
7
2707-326
Brkt, Spar Support-rh-ptd Orn (seoso)
7
2707-327
Brkt, Spar Support-lh-ptd Orn (seoso)
7
2707-340
Brkt, Spar Support-rh-ptd Ta Grn (seosg)
7
2707-341
Brkt, Spar Support-lh-ptd Ta Grn (seosg)
8
8476-512
Screw, Mach-tstrh M5x0.8x12 Z&y (6 Per Pack)
9
1623-257
Rivet, 3/16 Huck-m5 (10 Per Pack)
10
8060-682
Заклепка (20 шт в упаковке)
11
2707-361
Tunnel, Rear-162-ptd Orn (seoso)
11
2707-362
Tunnel, Rear-162-ptd Ta Grn (seosg)
12
8060-484
Rivet, Blind-dh Ss53 Zinc (10 Per Pack)
13
2707-331
End Cap, Tunnel-ptd Orn (seoso)
13
2707-315
End Cap, Tunnel-ptd Ta Grn (seosg)
14
8476-820
Винт M8x1.25x20
15
1707-454
Hook, Toe-rh Ptd Blk
15
1707-455
Hook, Toe-lh Ptd Blk
16
8427-802
Гайка M8x1.25
17
0744-081
Kit, Tool Bag-2 Stroke-assy
18
8468-536
Screw, Mach-tspnh M5x0.8x35 Cl8.8 W/2353 (3 Per Pack)
19
1623-637
Clip, U-nut (m5) (4 Per Pack)
20
2707-014
Toe Stop, Rh-formed-ptd Orn (seoso)
20
2707-015
Toe Stop, Lh-formed-ptd Orn (seoso)
20
2707-004
Toe Stop, Rh-formed-ptd Team Arctic Grn (seosg)
20
2707-005
Toe Stop, Lh-formed-ptd Team Arctic Grn (seosg)
21
8470-516
Screw, Mach-tspnh M5x1.0x16 Cl8.8 Z&y (2 Per Pack)
22
1607-109
Protector, Chain Case
23
8061-708
Заклепка -черная (отпуск по 10 шт )
24
0607-351
Protector, Brake Disc-bottom
25
2707-043
Cover, Shield-brake Disc-ptd Orn (seoso)
25
2707-042
Cover, Shield-brk Disc-ptd Team Arc Grn (seosg)
26
8408-613
Screw, Cap-hfh M6x1.0x12 Cl8.8 Z&y W/2353 (2 Per Pack)
27
8470-520
Screw, Mach-tspnh M5x0.8x20 Cl8.8 Z&y (4 Per Pack)
28
1623-130
Rivet, 3/16 Huck-m4 (6 Per Pack)
29
2707-330
Edge, Running Board-ptd Orn (seoso)
29
2707-346
Edge, Running Board-ptd Ta Grn (seosg)
30
0630-307
Protector, Taillgiht Harness-153/162"
31
1623-241
Rivet, 3/16 Huck-m6 (5 Per Pack)
32
2707-322
Gusset, Running Board-rh-ptd Orn (seoso)
32
2707-323
Gusset, Running Board-lh-ptd Orn (seoso)
32
2707-336
Gusset, Running Board-rh-ptd Ta Grn (seosg)
32
2707-337
Gusset, Running Board-lh-ptd Ta Grn (seosg)
33
2707-328
Gusset, Tunnel-rh-ptd Orn (seoso)
33
2707-329
Gusset, Tunnel-lh-ptd Orn (seoso)
33
2707-338
Gusset, Tunnel-rh-ptd Ta Grn (seosg)
33
2707-339
Gusset, Tunnel-lh-ptd Ta Grn (seosg)
34
0621-753
Decal, Tunnel-"162"
35
0621-990
Decal, Reflector-red
36
0630-281
Protector, Taillight Harness-125mm
37
8470-512
Screw, Mach-tspnh M5x.8x12 Cl8.8 Z&y (2 Per Pack)
38
0730-200
Housing, Taillight-ptd Orn (seoso)
38
0730-198
Housing, Taillight-ptd Team Arctic Grn (seosg)
39
0609-898
Taillight, Red
40
6606-394
Flap, Snow-mtn-blk
41
5611-852
Decal, Warning-towing/track-french (french)
42
5611-853
Decal, Warning-towing/track-english (english)
43
8061-706
Rivet, Blind-lf Ss64 Black (10 Per Pack)
44
2707-010
Bumper, Rear-162"-ptd-blk
45
8476-620
Винт M6x1.0x2 (отпуск по 5 шт )
46
8427-602
Гайка M6x1.0 (отпуск.по 5 шт)
47
6606-615
Bag, Belt
