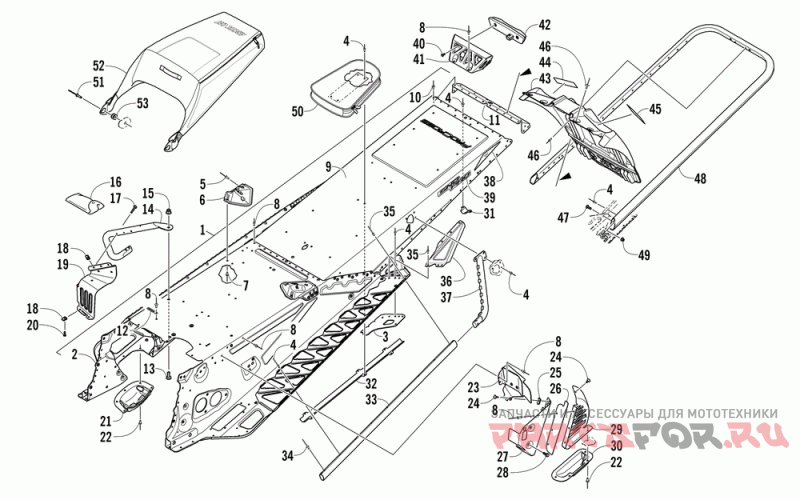

Тунель ,задний бампер и брызговик

Arctic Cat XF 800 Sno Pro LTD

Arctic Cat
#oem кодцена
-
1707-795
Chassis-141" 2 Strk-assy-ptd Wht (leusw)
-
1707-829
Chassis, 141" 2 Strk-assy Ptd Blk (leusb)
1
1707-898
Tunnel, Xf-141-s/p Assy-ptd Wht (inc. 2-11) (leusw)
1
1707-896
Tunnel, Xf-141-s/p Assy-ptd Blk (inc. 2-11) (leusb)
2
1707-897
Tunnel, Front-assy-ptd Wht
2
1707-894
Tunnel, Front-assy-ptd Blk
3
1707-902
Brkt, Rear Susp-outer-rh-ptd Wht (leusw)
3
1707-903
Brkt, Rear Susp-outer-lh-ptd Wht (leusw)
3
1707-900
Brkt, Rear Susp-outer-rh-ptd Blk (leusb)
3
1707-901
Brkt, Rear Susp-outer-lh-ptd Blk (leusb)
4
8060-686
Rivet, Blind-dh Ss64 Zinc (leusw) (10 Per Pack)
4
8060-706
Rivet, Blind-dh Ss64 Blk (leusb) (10 Per Pack)
5
1623-206
Rivet, 3/16 Huck-m9 (5 Per Pack)
6
1707-904
Brkt, Spar Support-rh-ptd Wht (leusw)
6
1707-905
Brkt, Spar Support-lh-ptd Wht (leusw)
6
1707-692
Brkt, Spar Support-rh-ptd Blk (leusb)
6
1707-693
Brkt, Spar Support-lh-ptd Blk (leusb)
7
1623-257
Rivet, 3/16 Huck-m5 (10 Per Pack)
8
8060-682
Rivet, Blind-dh Ss62 Zinc (leusw) (20 Per Pack)
8
8060-702
Rivet, Blind-dh Ss62 Blk (leusb) (25 Per Pack)
9
1707-839
Tunnel, Rear-141-ptd Wht (leusw)
9
1707-838
Tunnel, Rear-141-ptd Blk (leusb)
10
8060-484
Rivet, Blind-dh Ss53 Zinc (leusw) (10 Per Pack)
10
8060-504
Rivet, Blind-dh Ss53 Blk (leusb) (20 Per Pack)
11
1707-834
End Cap, Tunnel-ptd Wht (leusw)
11
1707-725
End Cap, Tunnel-ptd Blk (leusb)
12
1623-984
Зажим (2 шт в упаковке)
13
8476-820
Винт M8x1.25x20
14
1707-800
Hook, Toe-rh-ptd White (leusw)
14
1707-801
Hook, Toe-lh-ptd Wht (leusw)
14
1707-454
Hook, Toe-rh Ptd Blk (leusb)
14
1707-455
Hook, Toe-lh Ptd Blk (leusb)
15
8427-802
Гайка M8x1.25
16
0744-076
Kit, Tool Bag-2 Stroke-assy
17
8468-536
Screw, Mach-tspnh M5x0.8x35 Cl8.8 W/2353 (3 Per Pack)
18
1623-637
Clip, U-nut (m5) (4 Per Pack)
19
1707-802
Toe Stop, Rh - Formed-ptd Wht (leusw)
19
1707-803
Toe Stop, Lh - Formed-ptd Wht (leusw)
19
1707-556
Toe Stop, Rh - Formed-ptd Blk (leusb)
19
1707-557
Toe Stop, Lh - Formed-ptd Blk (leusb)
20
8475-512
Screw, Mach-tstrh M5x0.8x12 Z&clr (2 Per Pack)
21
1607-109
Protector, Chain Case
22
8061-708
Заклепка -черная (отпуск по 10 шт )
23
1702-278
Mount, Clutch Guard-assy
24
1623-129
Винт, 10-12x5/8 (5 шт в упаковке)
25
1623-052
Nut, U (2 Per Pack)
26
1707-805
Guard, Toe-ptd Wht (leusw)
26
1707-639
Guard, Toe-ptd Blk (leusb)
27
1607-118
Cover, Shield-brake Caliper
28
8408-613
Screw, Cap-hfh M6x1.0x12 Cl8.8 Z&y W/2353 (2 Per Pack)
29
1707-804
Cover, Shield-brake Disc-ptd Wht (leusw)
29
1707-563
Cover, Shield-brake Disc-ptd Blk (leusb)
30
0607-351
Protector, Brake Disc-bottom
31
0630-292
Protector, Taillight Harness-26.5mm
32
0630-309
Protector, Taillight Harness-141"
33
1707-899
Edge, Running Board-ptd Wht (leusw)
33
1707-697
Edge, Running Board-ptd Blk (leusb)
34
1623-130
Rivet, 3/16 Huck-m4 (6 Per Pack)
35
1623-241
Rivet, 3/16 Huck-m6 (5 Per Pack)
36
1707-906
Gusset, Running Board-rh-ptd Wht (leusw)
36
1707-907
Gusset, Running Board-lh-ptd Wht (leusw)
36
1707-698
Gusset, Running Board-rh-ptd Blk (leusb)
36
1707-699
Gusset, Running Board-lh-ptd Blk (leusb)
37
1707-908
Gusset, Tunnel-rh-ptd Wht (leusw)
37
1707-909
Gusset, Tunnel-lh-ptd Wht (leusw)
37
1707-700
Gusset, Tunnel-rh-ptd Blk (leusb)
37
1707-701
Gusset, Tunnel-lh-ptd Blk (leusb)
38
0621-990
Decal, Reflector-red
39
9611-591
Decal, Tunnel-sno Pro-blk (leusw)
39
9611-648
Decal, Tunnel-sno Pro-blk (leusb)
40
8470-512
Screw, Mach-tspnh M5x.8x12 Cl8.8 Z&y (2 Per Pack)
41
0730-185
Housing, Taillight-mc Ptd Wht (leusw)
41
0730-164
Housing, Taillight-ptd Blk (leusb)
42
0609-898
Taillight, Red
43
6606-394
Flap, Snow-mtn-blk
44
5611-852
Decal, Warning-towing/track-french (french)
45
5611-853
Decal, Warning-towing/track-english (english)
46
8061-706
Rivet, Blind-lf Ss64 Black (10 Per Pack)
47
8476-620
Винт M6x1.0x2 (отпуск по 5 шт )
48
1707-821
Bumper, Rear-141"-ptd Wht (leusw)
48
2707-439
Bumper, Rear-137"/141" Ptd Blk (leusb)
49
8427-602
Гайка M6x1.0 (отпуск.по 5 шт)
50
6606-615
Bag, Belt
51
8060-630
Rivet, Blind-dh Aa68 Blk (10 Per Pack)
52
6606-600
Saddlebag, Rear
53
1623-940
Grommet, Seat Bag (4 Per Pack)
