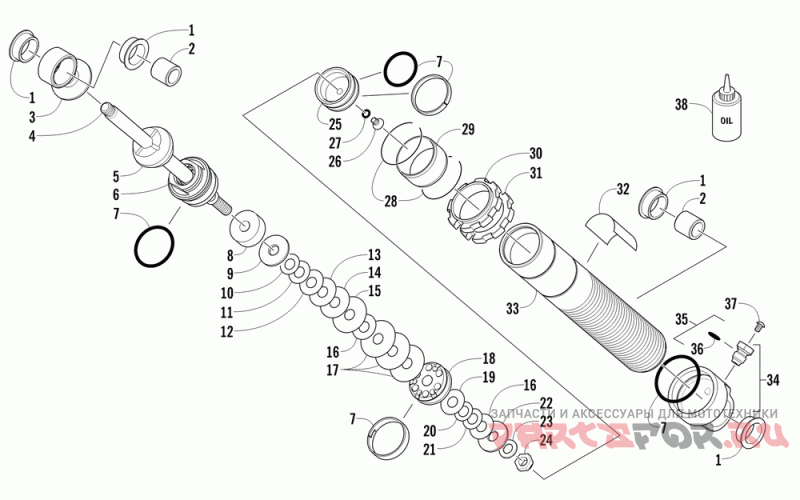

Передний амортизатор

Arctic Cat Sno Pro 500

Arctic Cat
#oem кодцена
-
2703-809
Shock, Ski-fox
1
1604-222
Bushing, Rear Arm Shock-.125" Lip
2
2604-223
Sleeve, .571 X .815 X .950tlg
3
0603-910
Eyelet, Shock-fr Susp(fox Only)
4
2603-870
Shaft, Shock-.498" X 10.15"tlg
5
2603-459
Bumper, Fox Shock - 1"
6
2604-413
Bearing, Endcap.498" X 1.21"-assy
7
2604-815
Seal/bearing-rebuild Kit
8
2603-939
Spacer, Shaft-1.25"od X .504"od X 1.10"th
9
0603-540
Washer, Top Out-1.125od X .378 Id X.093
10
0603-331
Valve, .700x.008(3/8id)
11
0603-334
Valve, .800x.008 (3/8id)
12
0603-337
Valve, .900x.008(3/8id)
13
0603-340
Valve, 1.000x.008(3/8id)
14
0603-343
Valve, 1.100x.008(3/8id)
15
0603-346
Valve, 1.250x.008(3/8id)
16
0603-894
Valve, Shock .900x.004(3/8id)
17
0603-348
Valve, 1.300x.006(3/8id)
18
2603-897
Piston, High Flow-.035 Orifice
19
0603-342
Valve, 1.100x.006(3/8id)
20
3604-171
Valve, .600x.004(3/8id)
21
0603-731
Valve, .700x.004(3/8id)
22
3604-170
Plate, Top-out-1.125od X .378id X .080
23
0603-389
Washer, Backup
24
0603-301
Nut, Cap-fox Shock
25
2604-816
Piston, Floating-assy
26
1604-316
Screw, Relief W/ O-ring (inc. 27)
27
1604-425
O-ring(fox Only)
28
2603-245
Retainer, .062 Cs X 1.54 Od-wear Sleeve
29
2603-246
Guide, Spring-alum Body
30
2604-840
Ring, Preload-2.40 Od X .600 Tlg
31
2604-841
Ring, Preload Lock-2.40 Od X .300 Tlg
32
2604-897
Decal, Shock-zero Pro 5.1x1.375(2005)
33
2603-791
Body, 1.459 Bore-11.300 Tlg
34
2604-817
Body, Cap-alum Body-assy (inc. 35-36)
35
0703-341
Valve, Pressure-ass'y (inc. 36)
36
1604-318
O-ring-end Cap Fitting(fox Only)
37
0624-097
Винт 8-32x.25
38
5639-530
Semi-syn Shock Oil-1 Quart (6 Per Pack)
