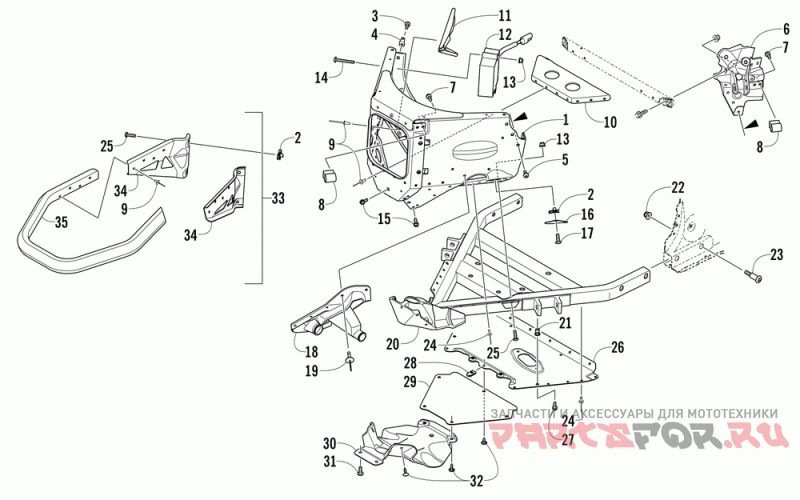

Передний бампер и рама

Arctic Cat M 800 Sno Pro LTD

Arctic Cat
#oem кодцена
-
1707-882
Chassis, 153" 2 Strk Hcr-assy Ptd Wht (psusw/leusw)
-
1707-881
Chassis, 153" 2 Strk Hcr-assy Ptd Blk (psusb/leusb)
-
1707-858
Chassis, 153" 2 Strk-assy Ptd Wht (leosw)
-
1707-857
Chassis, 153" 2 Strk-assy Ptd Blk (leosb)
-
1707-873
Chassis, 162" 2 Strk-assy Ptd Wht (peusw/elusw)
-
1707-874
Chassis, 162" 2 Strk-assy Ptd Blk (peusb/elusb)
1
2707-162
Tunnel, Mt-162 Hcr-s/p Assy-ptd Wht (inc. 2-11) (peusw/elusw)
1
2707-161
Tunnel, Mt-162 Hcr-s/p Assy-ptd Blk (inc. 2-11) (peusb/elusb)
1
2707-181
Kit, Frt Panel-na/800 Assy
1
1707-988
Tunnel, Mt-153-s/p Assy-ptd Wht (inc. 2-11) (leosw)
1
1707-987
Tunnel, Mt-153-s/p Assy-ptd Blk (inc. 2-11) (leosb)
1
2707-158
Tunnel, Mtn-153 Hcr-s/p Assy-ptd Wht (inc. 2-11) (psusw/leusw)
1
2707-157
Tunnel, Mtn-153 Hcr-s/p Assy-ptd Blk (inc. 2-11) (psusb/leusb)
2
1707-897
Tunnel, Front-assy-ptd Wht
2
1707-894
Tunnel, Front-assy-ptd Blk
2
0423-577
Клипса (отпуск.по 5 шт)
3
1707-902
Brkt, Rear Susp-outer-rh-ptd Wht (peusw/elusw)
3
1707-903
Brkt, Rear Susp-outer-lh-ptd Wht (peusw/elusw)
3
1707-900
Brkt, Rear Susp-outer-rh-ptd Blk (peusb/elusb)
3
1707-901
Brkt, Rear Susp-outer-lh-ptd Blk (peusb/elusb)
3
1623-683
Screw, Taptite-tspnh M6 X 1 X 20 Z&b (4 Per Pack)
4
8060-686
Rivet, Blind-dh Ss64 Zinc (psusw/leusw) (10 Per Pack)
4
8060-706
Rivet, Blind-dh Ss64 Blk (psusb/leusb) (10 Per Pack)
4
2612-707
Ушко
5
1623-206
Rivet, 3/16 Huck-m9 (5 Per Pack)
5
0423-538
Винт M6 X 1 X 16 (отпуск.по 10 шт )
6
1707-904
Brkt, Spar Support-rh-ptd Wht (psusw/leusw)
6
1707-905
Brkt, Spar Support-lh-ptd Wht (psusw/leusw)
6
1707-692
Brkt, Spar Support-rh-ptd Blk (psusb/leusb)
6
1707-693
Brkt, Spar Support-lh-ptd Blk (psusb/leusb)
6
1707-668
Корпус верхний правый
6
1707-669
Корпус верхний левый
7
1623-257
Rivet, 3/16 Huck-m5 (10 Per Pack)
7
8413-617
Screw, Cap-hfh M6x1.0x16 Cl10.9 W/2353 (8 Per Pack)
8
8060-682
Rivet, Blind-dh Ss62 Zinc (psusw/leusw) (20 Per Pack)
8
8060-702
Rivet, Blind-dh Ss62 Blk (psusb/leusb) (25 Per Pack)
8
1607-233
Brkt, Mtg-upper A-arm-m6 X 1 Thds
9
2707-160
Tunnel, Rear-162" Hcr-ptd Wht (peusw/elusw)
9
2707-159
Tunnel, Rear-162" Hcr-ptd Blk (peusb/elusb)
9
8060-706
Rivet, Blind-dh Ss64 Blk (10 Per Pack)
9
1707-993
Tunnel, Rear-153-ptd Wht (leosw)
9
1707-724
Tunnel, Rear-153-ptd Blk (leosb)
9
2707-156
Tunnel, Rear-153" Hcr-ptd Wht (psusw/leusw)
9
2707-155
Tunnel, Rear-153" Hcr-ptd Blk (psusb/leusb)
10
8060-484
Rivet, Blind-dh Ss53 Zinc (psusw/leusw) (10 Per Pack)
10
8060-504
Rivet, Blind-dh Ss53 Blk (psusb/leusb) (20 Per Pack)
10
0607-603
Brkt, Mtg-steering Post-lwr
11
1707-834
End Cap, Tunnel-ptd Wht (peusw/elusw)
11
1707-725
End Cap, Tunnel-ptd Blk (peusb/elusb)
11
0607-991
Кронштейн ,сторор руля
12
1623-984
Зажим (2 шт в упаковке)
12
0630-323
Regulator/rectifier (psusw/psusb/peusw/peusb)
12
0630-322
Regulator/rectifier-electric Start (leusw/leosw/leusb/leosb/elusw/elusb)
13
8476-820
Винт M8x1.25x20
13
8427-602
Гайка M6x1.0 (отпуск.по 5 шт)
14
8427-802
Гайка M8x1.25
14
8477-650
Screw, Mach-tstrh M6x1.0x50 Z&blk (5 Per Pack)
14
1707-800
Hook, Toe-rh-ptd White (peusw/elusw)
14
1707-801
Hook, Toe-lh-ptd Wht (peusw/elusw)
14
1707-454
Hook, Toe-rh Ptd Blk (peusb/elusb)
14
1707-455
Hook, Toe-lh Ptd Blk (peusb/elusb)
15
8427-802
Гайка M8x1.25
15
1623-959
Screw, Self Tap 1/4-20x5/8 Type F Blk (5 Per Pack)
15
1707-800
Hook, Toe-rh-ptd White (leosw)
15
1707-801
Hook, Toe-lh-ptd Wht (leosw)
15
1707-454
Hook, Toe-rh Ptd Blk (leosb)
15
1707-455
Hook, Toe-lh Ptd Blk (leosb)
16
0744-076
Kit, Tool Bag-2 Stroke-assy
16
1707-568
Cover, Sway Bar-ptd Blk
17
8468-536
Screw, Mach-tspnh M5x0.8x35 Cl8.8 W/2353 (3 Per Pack)
17
8471-616
Винт M6x1.0x16 (5шт в упаковке)
18
1623-637
Clip, U-nut (m5) (4 Per Pack)
18
1605-028
Пыльник рулевой правый
18
1605-029
Пыльник рулевой левый
19
1707-802
Toe Stop, Rh - Formed-ptd Wht (peusw/elusw)
19
1707-803
Toe Stop, Lh - Formed-ptd Wht (peusw/elusw)
19
1707-556
Toe Stop, Rh - Formed-ptd Blk (peusb/elusb)
19
1707-557
Toe Stop, Lh - Formed-ptd Blk (peusb/elusb)
19
8061-628
Rivet, Blind-lf Aa66 Black (10 Per Pack)
20
8475-512
Screw, Mach-tstrh M5x0.8x12 Z&clr (2 Per Pack)
20
1707-864
Frame, Lower-2 Strk-ptd Wht (psusw/peusw/leusw/leosw/elusw)
20
1707-865
Frame, Lower-2 Strk-ptd Blk (psusb/peusb/leusb/leosb/elusb)
21
1607-109
Protector, Chain Case
21
1623-797
Insert, M5x0.8-al Series Als4-580-3.3 (2 Per Pack)
22
8061-708
Заклепка -черная (отпуск по 10 шт )
22
8427-802
Гайка M8x1.25
23
1702-278
Mount, Clutch Guard-assy
23
1623-817
Screw, Shoulder-hstrh M8 X 1.25 X 44.16 (4 Per Pack)
24
1623-129
Винт, 10-12x5/8 (5 шт в упаковке)
24
8060-686
Заклепка (10 шт в упак.)
25
1623-052
Nut, U (2 Per Pack)
25
8468-620
Винт
26
1707-805
Guard, Toe-ptd Wht (psusw/leusw)
26
1707-639
Guard, Toe-ptd Blk (psusb/leusb)
26
0607-983
Поддон -центральный штампованый
27
1607-118
Cover, Shield-brake Caliper
27
8476-520
Screw, Mach-tstrh M5x0.8x20 Z&y (2 Per Pack)
28
8408-613
Screw, Cap-hfh M6x1.0x12 Cl8.8 Z&y W/2353 (2 Per Pack)
28
1623-052
Nut, U (2 Per Pack)
29
1707-804
Cover, Shield-brake Disc-ptd Wht (peusw/elusw)
29
1707-563
Cover, Shield-brake Disc-ptd Blk (peusb/elusb)
29
1607-063
Панель
30
0607-351
Protector, Brake Disc-bottom
30
6606-614
Защита центральная
31
0630-280
Protector, Taillight Harness-448.5mm
31
8477-526
Screw, Mach-tstrh M5x0.8x25 Z&blk (2 Per Pack)
31
0630-292
Protector, Taillight Harness-26.5mm
31
0630-282
Protector, Taillight Harness-334.6mm
32
0630-307
Protector, Taillgiht Harness-153/162"
32
1623-129
Винт, 10-12x5/8 (5 шт в упаковке)
33
1707-899
Edge, Running Board-ptd Wht (peusw/elusw)
33
1707-697
Edge, Running Board-ptd Blk (peusb/elusb)
33
1707-787
Bumper, Frt-wht-assy
33
1707-596
Bumper, Frt-blk-assy (inc. Eight No. 9 And 34-35) (psusb/peusb/leusb/leosb/elusb)
34
1623-130
Rivet, 3/16 Huck-m4 (6 Per Pack)
34
1707-576
Кронштейн правый
34
1707-577
Кронштейн левый
35
1623-241
Rivet, 3/16 Huck-m6 (5 Per Pack)
35
1707-786
Tube, Front Bumper-ptd Wht (psusw/peusw/leusw/leosw/elusw)
35
1707-578
Tube, Frt Bumper-ptd Blk (psusb/peusb/leusb/leosb/elusb)
36
1707-906
Gusset, Running Board-rh-ptd Wht (psusw/leusw)
36
1707-907
Gusset, Running Board-lh-ptd Wht (psusw/leusw)
36
1707-698
Gusset, Running Board-rh-ptd Blk (psusb/leusb)
36
1707-699
Gusset, Running Board-lh-ptd Blk (psusb/leusb)
37
1707-908
Gusset, Tunnel-rh-ptd Wht (peusw/elusw)
37
1707-909
Gusset, Tunnel-lh-ptd Wht (peusw/elusw)
37
1707-700
Gusset, Tunnel-rh-ptd Blk (peusb/elusb)
37
1707-701
Gusset, Tunnel-lh-ptd Blk (peusb/elusb)
38
9611-619
Decal, Tunnel-sno Pro (m) (psusw/leusw)
38
9611-648
Decal, Tunnel-sno Pro-blk (psusb/leusb)
39
0621-990
Decal, Reflector-red
39
0621-014
Decal, Tunnel-153" (leosw)
39
0621-268
Decal, Tunnel-"153" (leosb)
40
0621-990
Decal, Reflector-red
40
0621-024
Decal, Tunnel-162" (peusw/elusw)
40
0621-294
Decal, Tunnel-"162" (peusb/elusb)
41
8470-512
Screw, Mach-tspnh M5x.8x12 Cl8.8 Z&y (2 Per Pack)
42
0730-185
Housing, Taillight-mc Ptd Wht (psusw/leusw)
42
0730-164
Housing, Taillight-ptd Blk (psusb/leusb)
43
0609-898
Taillight, Red
44
6606-394
Flap, Snow-mtn-blk
45
5611-852
Decal, Warning-towing/track-french (french)
46
5611-853
Decal, Warning-towing/track-english (english)
47
8061-706
Rivet, Blind-lf Ss64 Black (10 Per Pack)
48
8476-620
Винт M6x1.0x2 (отпуск по 5 шт )
49
1707-792
Bumper, Rear-162" Ptd White (peusw/elusw)
49
1707-506
Bumper, Rear-162" Ptd Blk (peusb/elusb)
49
1707-791
Bumper, Rear-153" Ptd Wht (leosw)
49
1707-500
Bumper, Rear-153" Ptd Blk (leosb)
50
8427-602
Гайка M6x1.0 (отпуск.по 5 шт)
51
6606-615
Bag, Belt
52
6639-401
Bag, Mtn Pack '14 M
