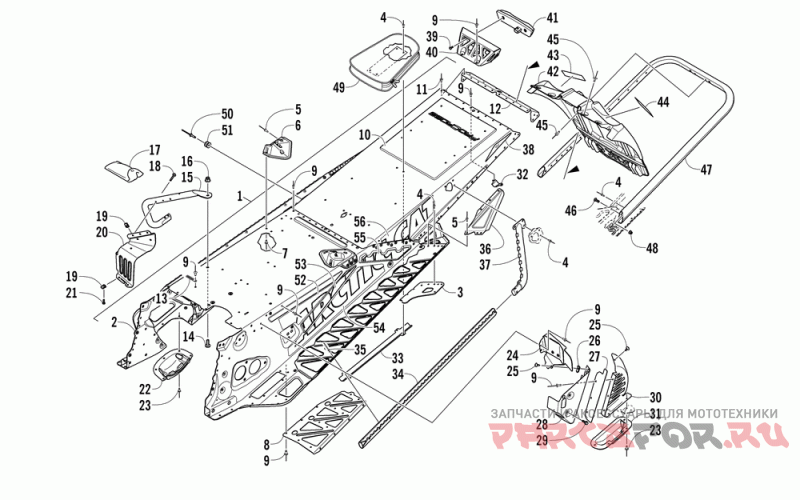

Тунель ,задний бампер и брызговик

Arctic Cat F 800 Sno Pro RR

Arctic Cat
#oem кодцена
-
1707-679
Chassis-128" 2 Strk-ptd Prl Cat Grn
1
2707-098
Tunnel, Hp-s/p Assy-ptd Pc Grn (inc. 2-12)
2
2707-097
Tunnel, Front-assy-ptd Pc Grn
3
2707-100
Brkt, Rr Susp-otr Rh-ptd Pearl Cat Grn
3
2707-101
Brkt, Rr Susp-otr Lh-ptd Pearl Cat Grn
4
8060-706
Rivet, Blind-dh Ss64 Blk (10 Per Pack)
5
1623-241
Rivet, 3/16 Huck-m6 (5 Per Pack)
6
1707-736
Brkt, Spar Support-rh Ptd Grn
6
1707-737
Brkt, Spar Support-lh Ptd Grn
7
1623-257
Rivet, 3/16 Huck-m5 (10 Per Pack)
8
1707-732
Support, Run Board-rh Ptd Prl Cat Grn
8
1707-733
Support, Run Board-lh Ptd Prl Cat Grn
9
8060-702
Rivet, Blind-dh Ss62 Blk (25 Per Pack)
10
1707-836
Tunnel, Rear-128-ptd Pc Grn
11
8060-504
Заклепка (цена за шт.(20шт в упаковке)
12
1707-833
End Cap, Tunnel-ptd Pc Grn
13
1623-984
Зажим (2 шт в упаковке)
14
8476-820
Винт M8x1.25x20
15
1707-454
Hook, Toe-rh Ptd Blk
15
1707-455
Hook, Toe-lh Ptd Blk
16
8427-802
Гайка M8x1.25
17
0744-078
Kit, Tool Bag-2 Strk Rr-assy
18
8468-536
Screw, Mach-tspnh M5x0.8x35 Cl8.8 W/2353 (3 Per Pack)
19
1623-637
Clip, U-nut (m5) (4 Per Pack)
20
1707-556
Toe Stop, Rh - Formed-ptd Blk
20
1707-557
Toe Stop, Lh - Formed-ptd Blk
21
8475-512
Screw, Mach-tstrh M5x0.8x12 Z&clr (2 Per Pack)
22
1607-109
Protector, Chain Case
23
8061-708
Заклепка -черная (отпуск по 10 шт )
24
1702-278
Mount, Clutch Guard-assy
25
1623-129
Винт, 10-12x5/8 (5 шт в упаковке)
26
1623-052
Nut, U (2 Per Pack)
27
1707-639
Guard, Toe-ptd Blk
28
1607-118
Cover, Shield-brake Caliper
29
8408-613
Screw, Cap-hfh M6x1.0x12 Cl8.8 Z&y W/2353 (2 Per Pack)
30
1707-563
Cover, Shield-brake Disc-ptd Blk
31
0607-351
Protector, Brake Disc-bottom
32
0630-292
Protector, Taillight Harness-26.5mm
33
0630-308
Protector, Taillight Harness-128"
34
1707-730
Edge, Running Board-rh Ptd Grn
34
1707-731
Edge, Running Board-lh Ptd Grn
35
1623-130
Rivet, 3/16 Huck-m4 (6 Per Pack)
36
1707-734
Gusset, Running Board-rh Ptd Grn
36
1707-735
Gusset, Running Board-lh Ptd Grn
37
2707-102
Gusset, Tunnel-rh-ptd Pc Grn
37
2707-103
Gusset, Tunnel-lh-ptd Pc Grn
38
0621-990
Decal, Reflector-red
39
8470-512
Screw, Mach-tspnh M5x.8x12 Cl8.8 Z&y (2 Per Pack)
40
0730-187
Housing, Taillight-ptd Prl Cat Grn
41
0609-898
Taillight, Red
42
6606-394
Flap, Snow-mtn-blk
43
5611-852
Decal, Warning-towing/track-french (french)
44
5611-853
Decal, Warning-towing/track-english (english)
45
8061-706
Rivet, Blind-lf Ss64 Black (10 Per Pack)
46
8476-620
Винт M6x1.0x2 (отпуск по 5 шт )
47
1707-814
Bumper, Rear-128"-ptd Blk
48
8427-602
Гайка M6x1.0 (отпуск.по 5 шт)
49
6606-615
Bag, Belt
50
8060-630
Rivet, Blind-dh Aa68 Blk (10 Per Pack)
51
1623-940
Grommet, Seat Bag (4 Per Pack)
52
0621-120
Decal, Tunnel-"arctic Cat" Rh 5 Grn (rrusg/rrosg)
52
0621-121
Decal, Tunnel-"arctic Cat" Lh 5 Grn (rrusg/rrosg/rruss/rross)
52
0621-194
Decal, Tunnel-"arctic Cat-rh 5 Wht (rrusw/rrosw/rruss/rross)
52
0621-195
Decal, Tunnel-"arctic Cat-lh 5 Wht (rrusw/rrosw)
53
0621-118
Decal, Tunnel-"arctic Cat" Rh 4 Grn (rrusg/rrosg)
53
0621-119
Decal, Tunnel-"arctic Cat" Lh 4 Grn (rrusg/rrosg/rruss/rross)
53
0621-192
Decal, Tunnel-"arctic Cat-rh 4 Wht (rrusw/rrosw/rruss/rross)
53
0621-193
Decal, Tunnel-"arctic Cat-lh 4 Wht (rrusw/rrosw)
54
0621-116
Decal, Tunnel-"arctic Cat" Rh 3 Grn (rrusg/rrosg)
54
0621-117
Decal, Tunnel-"arctic Cat" Lh 3 Grn (rrusg/rrosg/rruss/rross)
54
0621-190
Decal, Tunnel-"arctic Cat-rh 3 Wht (rrusw/rrosw/rruss/rross)
54
0621-191
Decal, Tunnel-"arctic Cat-lh 3 Wht (rrusw/rrosw)
55
0621-114
Decal, Tunnel-"arctic Cat" Rh 2 Grn (rrusg/rrosg)
55
0621-115
Decal, Tunnel-"arctic Cat" Lh 2 Grn (rrusg/rrosg/rruss/rross)
55
0621-188
Decal, Tunnel-"arctic Cat-rh 2 Wht (rrusw/rrosw/rruss/rross)
55
0621-189
Decal, Tunnel-"arctic Cat-lh 2 Wht (rrusw/rrosw)
56
0621-112
Decal, Tunnel-"arctic Cat" Rh 1 Grn (rrusg/rrosg)
56
0621-113
Decal, Tunnel-"arctic Cat" Lh 1 Grn (rrusg/rrosg/rruss/rross)
56
0621-186
Decal, Tunnel-"arctic Cat-rh 1 Wht (rrusw/rrosw/rruss/rross)
56
0621-187
Decal, Tunnel-"arctic Cat-lh 1 Wht (rrusw/rrosw)
