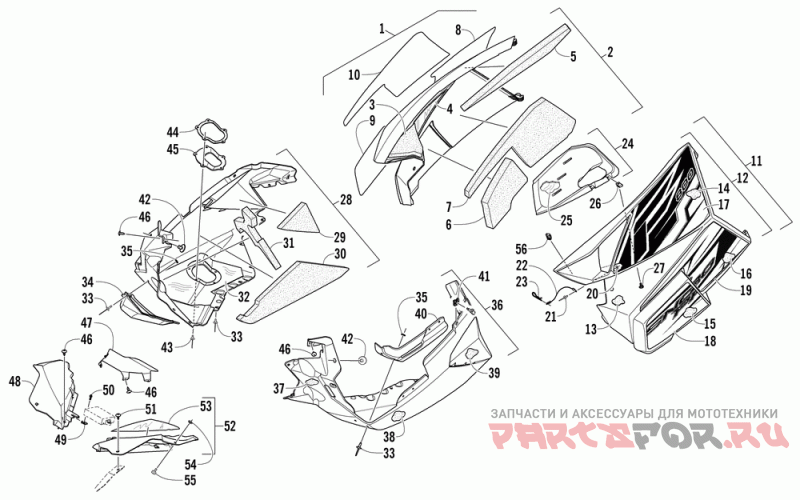

Поддон и обтекатели

Arctic Cat F 800 Sno Pro FTP

Arctic Cat
#oem кодцена
1
3718-436
Panel, Side-rh W/grn Decals(f8 Sp Grn) (inc. 2-10) (epusg/eposg)
1
3718-440
Panel, Side-rh W/orn Decals(f8 Sp Orn) (inc. 2-10) (epuso)
2
3718-182
Panel, Side-rh With Foam-grn (2 Stroke) (inc. 3-7) (epusg/eposg)
2
3718-438
Panel, Side-rh Wht-w/foam-2 Strk (inc. 3-7) (epuso)
3
0617-626
Foam, Upper Side Panel-frt-rh
4
6606-414
Foil, Protective-middle Side Panel-rh
5
0617-628
Foam, Upper Side Panel-rear-rh
6
0617-632
Foam, Lwr Side Panel-frt-rh
7
0617-634
Foam, Lwr Side Panel-rear-rh
8
0621-010
Decal, Side Panel-upper-grn-rh(f8 Sp) (epusg/eposg)
8
0621-042
Decal, Side Panel-upper-orn-rh(f8 Sp) (epuso)
9
0621-016
Decal, Side Panel-fwd-grn-rh (snopro) (epusg/eposg)
9
0621-048
Decal, Side Panel-fwd-orn-rh (sp) (epuso)
10
0621-018
Decal, Side Panel-lwr-grn-rh (snopro) (epusg/eposg)
10
0621-050
Decal, Side Panel-lwr-orn-rh (sp) (epuso)
11
3718-437
Panel, Side-lh W/grn Decals(f8 Sp Grn)
11
3718-441
Panel, Side-lh W/orn Decals(f8 Sp Orn)
12
3718-793
Panel, Side-lh With Foam-grn (inc. 13-16) (epusg/eposg)
12
3718-439
Panel, Side-lh Wht-w/foam (inc. 13-16) (epuso)
13
0617-631
Foam, Middle Side Panel-lh
14
0617-629
Foam, Upper Side Panel-rear-lh
15
0617-681
Foam, Lwr Side Panel-frt-lh
16
0617-635
Foam, Lwr Side Panel-rear-lh
17
0621-011
Decal, Side Panel-upper-grn-lh(f8 Sp) (epusg/eposg)
17
0621-043
Decal, Side Panel-upper-orn-lh (f8 Sp) (epuso)
18
0621-017
Decal, Side Panel-fwd-grn-lh (snopro) (epusg/eposg)
18
0621-049
Decal, Side Panel-fwd-orn-lh (sp) (epuso)
19
0621-019
Decal, Side Panel-lwr-grn-lh (snopro) (epusg/eposg)
19
0621-051
Decal, Side Panel-lwr-orn-lh (sp) (epuso)
20
8050-127
Washer, Flat- #8 X .375 X .049 Z&y (20 Per Pack)
21
8060-486
Rivet, Blind-dh Ss54 Zinc (20 Per Pack)
22
0607-447
Трос шпильки
23
0605-283
Hairpin, Cotter (5 Per Pack)
24
1702-279
Duct, Air-clutch W/foil (inc. 25)
25
6606-462
Foil, Clutch Duct-2 Stroke
26
1623-030
Гайка (6 шт в упаковке)
27
0623-797
Винт 10-12x1/2 (10 шт в упаковке)
28
3718-422
Plate, Skid-rh-w/foam (inc. 29-35)
29
0617-640
Foam, Skid Plate-rear-rh
30
0617-638
Foam, Skid Plate-middle-rh
31
0617-636
Foam, Skid Plate-frt-rh
32
2612-850
Foil, Skid Plate-resonator
33
8061-708
Заклепка -черная (отпуск по 10 шт )
34
2612-754
Shield, Resonator-skid Plate
35
0123-802
Шайба (отпускается по 4 шт)
36
3718-789
Plate, Skid-rear Lh W/foam
37
0617-637
Foam, Skid Plate-frt-lh
38
0617-639
Foam, Skid Plate-middle-lh
39
0617-641
Foam, Skid Plate-rear-lh
40
6606-613
Retainer, Tab-side Panel
41
1623-748
Clip, Receptacle-1/4 Turn Stud
42
5606-639
Pin, Retainer-body Plastic (4 Per Pack)
43
8061-710
Rivet, Blind-lf Ss68 Black (20 Per Pack)
44
2612-796
Plate, Exhaust Outlet
45
2612-795
Seal, Exhaut Outlet-2 Strk
46
1623-129
Винт, 10-12x5/8 (5 шт в упаковке)
47
6606-295
Shield, Heat-ecu
48
6606-342
Panel, Filler-rh-blk
49
0423-031
Nut, Speed M6 X 1.0 U-type (5 Per Pack)
50
8408-620
Винт M6x1.0x20 (4 шт в упаковке)
51
0623-784
Винт 10-12x3/4 (отпускается по 5 шт)
52
3718-303
Panel, Filler W/foil-lh (inc. 53)
53
6606-405
Foil, Protective-filler Panel-lh
54
2623-001
Retainer, Pushnut-3/16" Stud (4 Per Pack)
55
1623-999
Screw, 1" Rnd Knob-m5x0.8x20mm Lg (4 Per Pack)
56
1623-637
Clip, U-nut (m5) (4 Per Pack)
