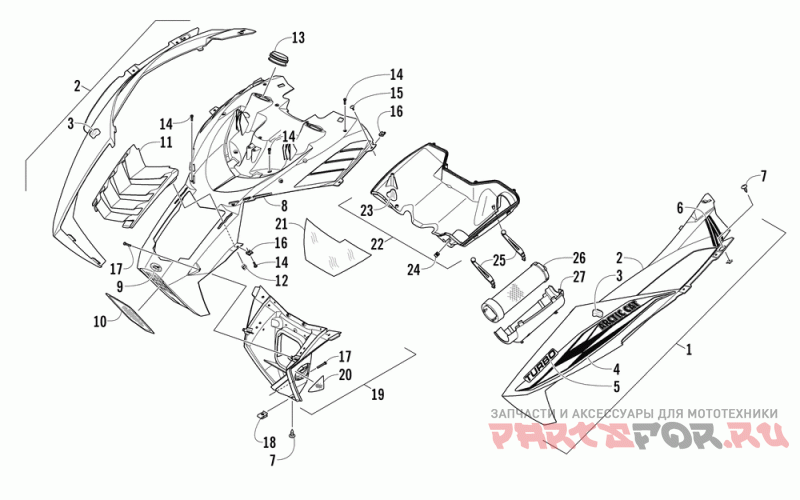

Капот и воздуховоды

Arctic Cat F 1100 Turbo SnoPro RR FTP

Arctic Cat
#oem кодцена
1
3718-650
Hood, W/decals-rh Grn Sp Rr Trb (inc. 2-6) (trusg)
1
3718-603
Hood, W/decals-lh Grn-sno Pro Rr Turbo (inc. 2-6) (trusg/truss/tross)
1
3718-602
Hood, W/decals-rh Wht-sno Pro Rr Turbo (inc. 2-6) (trusw/truss/tross)
1
3718-651
Hood, W/decals-lh Wht Sp Rr Trb (inc. 2-6) (trusw)
1
6606-399
Cowl, Headlight-na-grn (trusg)
1
6606-401
Cowl, Headlight-na-wht (trusw)
1
3718-604
Cowl, Headlight-4 Strk Blk W/decals (inc. 2-3)
2
6606-398
Cowl, Headlight-na-blk
2
0608-736
Screen, Intake-inj Mold-rh
2
0608-737
Screen, Intake-inj Mold-lh
2
3718-564
Hood, W/foil-rh-grn
2
3718-315
Hood, W/foil-lh-grn
2
3718-620
Hood, W/foil-4 Strk Rh-wht
2
3718-621
Hood, W/foil-lh-wht
3
6606-420
Фольга жаропрочная прав.
3
6606-415
Foil, Protective-hood-lh
3
1623-129
Винт, 10-12x5/8 (5 шт в упаковке)
3
0621-174
Decal, Cowl-rh Wht
3
0621-103
Decal, Cowl-lh Grn
4
1623-129
Винт, 10-12x5/8 (5 шт в упаковке)
4
6606-556
Vent, Pod
4
0621-100
Decal, Hood-fwd Rh Grn (trusg)
4
0621-101
Decal, Hood-fwd Lh Grn (trusg/truss/tross)
4
0621-172
Decal, Hood-fwd Rh Wht (trusw/truss/tross)
4
0621-173
Decal, Hood-fwd Lh Wht (trusw)
5
9611-596
Decal, Turbo Blk/clear
5
0641-897
Outlet, Accessory - 12v Dc
5
0608-736
Screen, Intake-inj Mold-rh
5
0608-737
Screen, Intake-inj Mold-lh
6
6606-556
Vent, Pod
6
0609-911
Switch, Ignition-w/key (inc. 7-9)
6
0621-098
Decal, Hood-upr Rh Grn (trusg)
6
0621-099
Decal, Hood-upr Lh Grn (trusg/truss/tross)
6
0621-170
Decal, Hood-upr Rh Wht (trusw/truss/tross)
6
0621-171
Decal, Hood-upr Lh Wht (trusw)
7
0623-784
Винт 10-12x3/4 (отпускается по 5 шт)
7
0430-050
Гайка
7
0641-897
Outlet, Accessory - 12v Dc
8
0609-911
Switch, Ignition-w/key (inc. 9-11)
8
0430-042
Ключ зажигания -Y(бланк)
8
0430-043
Ключ зажигания -Z(бланк)
8
6606-276
Plenum, Air Intake-upper-turbo-routed
9
9611-752
Decal, Emblem-green
9
0430-054
Облицовка
9
0430-050
Гайка
10
0430-042
Ключ зажигания -Y(бланк)
10
0430-043
Ключ зажигания -Z(бланк)
10
0620-390
Speedo, Lcd-4 Stroke Hp Calib-dlx
10
0608-696
Screen, Plenum
11
6606-388
Grille, Intercooler-blk
11
6606-288
Brkt, Gauge-center
11
0430-054
Облицовка
12
0620-390
Speedo, Lcd-4 Stroke Hp Calib-dlx (truss)
12
0620-388
Speedo, Lcd-4 Strk Hp Calib-dlx (tross)
12
0423-493
Гайка м4 (отпуск.по 5 шт)
12
1623-765
Clip, Retaining-hood (10 Per Pack)
13
6606-386
Seal, Upper Plenum
13
8410-616
Screw, Cap-hfh M6x1.25x16 Cl8.8 Rie Blk (4 Per Pack)
13
6606-288
Brkt, Gauge-center
14
0423-493
Гайка м4 (отпуск.по 5 шт)
14
6606-130
Brkt, Gauge-rh
14
6606-131
Brkt, Gauge-lh
14
1623-933
Screw, Plastite-txspnh 10-14x3/4 Z&b (6 Per Pack)
15
0623-797
Винт 10-12x1/2 (10 шт в упаковке)
15
8053-212
Шайба (отпуск.по 5 шт)
15
8410-616
Screw, Cap-hfh M6x1.25x16 Cl8.8 Rie Blk (4 Per Pack)
16
6606-130
Brkt, Gauge-rh
16
6606-131
Brkt, Gauge-lh
16
8427-602
Гайка M6x1.0 (отпуск.по 5 шт)
16
1623-939
Nut, Speed-#10 B "u" Type (2 Per Pack)
17
1623-129
Винт, 10-12x5/8 (5 шт в упаковке)
17
0423-355
Винт m6-1.0 X 18-blk (отпускается по 4 шт )
17
8053-212
Шайба (отпуск.по 5 шт)
18
8427-602
Гайка M6x1.0 (отпуск.по 5 шт)
18
1623-764
Nut Expansion-m5-0.8 (5 Per Pack)
18
1623-637
Clip, U-nut (m5) (4 Per Pack)
19
5706-379
Plenum, Intake-lwr-frt W/reflectors (inc. 20)
19
6606-376
Windshield, Low-black
19
0423-355
Винт m6-1.0 X 18-blk (отпускается по 4 шт )
20
1623-764
Nut Expansion-m5-0.8 (5 Per Pack)
20
8477-516
Screw, Mach-tstrh M5x0.8x16 Z&blk (4 Per Pack)
20
0621-989
Decal, Reflector-amber
21
6606-421
Foil, Intake Plenum-upper
21
6606-376
Windshield, Low-black
22
8477-516
Screw, Mach-tstrh M5x0.8x16 Z&blk (4 Per Pack)
22
5706-380
Plenum, Intake-lwr-rear-assy (inc. 23)
23
6606-422
Foil, Intake Plenum-lower-turbo
24
1623-023
Nut, Speed-#10-32 U Type (4 Per Pack)
25
6606-392
Strap, Hold-down-rubber
26
2670-265
Filter, Air (turbo)
27
6606-365
Cover, Air Filter
