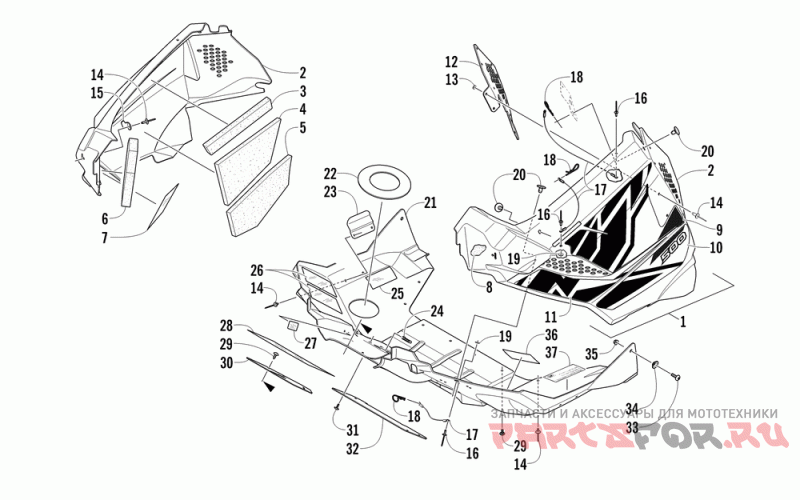

Обтекатель и передний бампер

Arctic Cat Sno Pro 500

Arctic Cat
#oem кодцена
2
3718-090
Panel, Side-rh-w/o Decals (inc. 3-7)
2
3718-091
Panel, Side-lh-w/o Decals (inc. 3-6 And 8)
3
0617-574
Foam, Side Panel-upr Rh
3
0617-575
Foam, Side Panel-upr Lh
4
0617-620
Foam, Side Panel-lwr Top-rh
4
0617-621
Foam, Side Panel-lwr Top-lh
5
0617-622
Foam, Side Panel-lwr Bottom-rh
5
0617-623
Foam, Side Panel-lwr Bottom-lh
6
0617-590
Foam, Side Panel-upr Fwd Rh
6
0617-591
Foam, Side Panel-upr Fwd Lh
8
0617-593
Foam, Side Panel-lwr Fwd Lh
12
6606-047
Panel, Reinforcement
13
0123-802
Шайба
14
8061-708
Rivet, Blind-lf Ss66 Black
15
2606-096
Holddown, Hood Strap-side Rh
15
1606-441
Holddown, Hood Strap-side ('98 440 Pro)
16
8060-486
Rivet, Blind-dh Ss54 Zinc
17
0607-447
Трос шпильки
18
0605-283
Шпилька
19
8050-127
Шайба
20
5606-639
Pin, Retainer-body Plastic
21
6606-294
Belly Pan
22
2612-507
Plate, Exhaust Outlet Seal
23
0607-892
Brkt, Latch-clutch Guard
24
1623-030
Гайка пружинная
25
2606-558
Foil, Protective,3" X 8"
26
2606-580
Foil, Protective,6" X 15"
27
2606-007
Фольга, защитная
28
2606-556
Foil, Protective,3" X 6"
29
1623-129
Винт М10-12x5/8
30
5606-954
Panel, Closeoff
31
0623-797
Винт М10-12x1/2
32
5606-872
Cover, Access-carburetor
34
0623-870
Insert, Strap,servo Mtg
35
8427-602
Гайка M6x1.0
36
1611-565
Наклейка информационная
1
3718-150
Panel, Side-w/decals-rh (inc. 2-7 And 9-11)
1
3718-151
Panel, Side-w/decals-lh (inc. 2-6 And 8-11)
9
9611-490
Decal, Side Panel-upr Rh
9
9611-491
Decal, Side Panel-upr Lh
10
9611-492
Decal, Side Panel-lwr Rh
10
9611-493
Decal, Side Panel-lwr Lh
11
9611-494
Decal, Side Panel-fwd Rh
11
9611-495
Decal, Side Panel-fwd Lh
37
9611-680
Decal, Clutching-2012 Sno Pro 500
