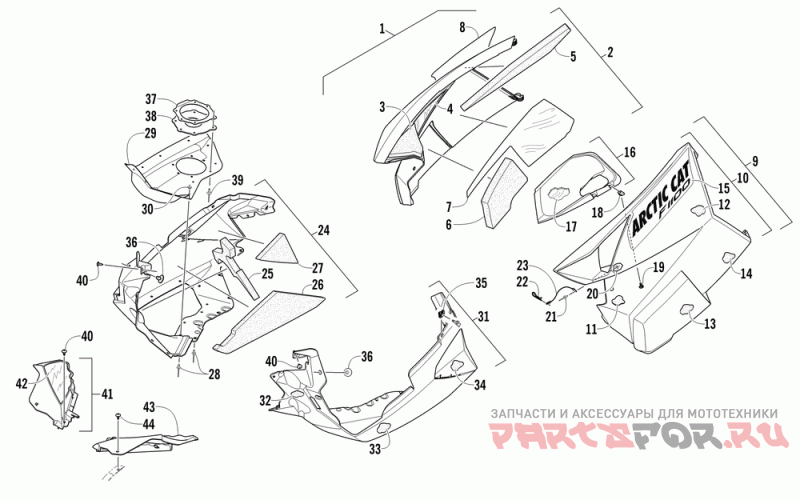

Поддон и обтекатели

Arctic Cat F 1100 SP LTD

Arctic Cat
#oem кодцена
18
1623-030
Гайка пружинная
19
0623-797
Винт М10-12x1/2
20
8050-127
Шайба
21
8060-486
Rivet, Blind-dh Ss54 Zinc
22
0605-283
Шпилька
23
0607-447
Трос шпильки
28
8061-708
Rivet, Blind-lf Ss66 Black
30
0123-802
Шайба
35
1623-748
Clip, Receptacle-1/4 Turn Stud
36
5606-639
Pin, Retainer-body Plastic
39
8060-488
Заклепка
40
1623-129
Винт М10-12x5/8
44
0623-784
Винт
1
3718-248
Panel, Side-rh W/decals-pc Prl Wht(f1100) (inc. 2-8)
2
3718-246
Panel, Side-rh With Foam-pc Prl Wht (inc. 3-7)
3
0617-626
Foam, Upper Side Panel-frt-rh
4
6606-414
Foil, Protective-middle Side Panel-rh
5
0617-628
Foam, Upper Side Panel-rear-rh
6
0617-632
Foam, Lwr Side Panel-frt-rh
7
6606-416
Foil, Protective-lwr Side Panel-rear-rh
8
9611-620
Decal, Side Panel-upr Rh-wht (f1100 Ltd)
9
3718-249
Panel, Side-lh W/decals-pc Prl Wht(f1100) (inc. 10-15)
10
3718-247
Panel, Side-lh With Foam-pc Prl Wht (inc. 11-14)
11
0617-631
Foam, Middle Side Panel-lh
12
0617-629
Foam, Upper Side Panel-rear-lh
13
0617-633
Foam, Lwr Side Panel-frt-lh
14
0617-635
Foam, Lwr Side Panel-rear-lh
15
9611-621
Decal, Side Panel-upr Lh-wht (f1100 Ltd)
16
1702-242
Duct, Air-clutch W/foil (inc. 17)
17
6606-462
Foil, Clutch Duct-2 Stroke
24
3718-254
Plate, Skid-rear Rh With Foam-pc Prl Wht (inc. 25-30)
25
0617-636
Foam, Skid Plate-frt-rh
26
0617-638
Foam, Skid Plate-middle-rh
27
0617-640
Foam, Skid Plate-rear-rh
29
1712-723
Deflector, Heat-ptd-pc Prl Wht
31
3718-255
Plate, Skid-rear Lh With Foam-pc Prl Wht (inc. 32-34)
32
0617-637
Foam, Skid Plate-frt-lh
33
0617-639
Foam, Skid Plate-middle-lh
34
0617-641
Foam, Skid Plate-rear-lh
37
2612-685
Plate, Exhaust-outlet
38
2612-669
Seal, Exhaust Outlet-4 Strk
41
3718-302
Panel, Filler W/foil-rh (inc. 42)
42
6606-404
Foil, Protective-filler Panel-rh
43
6606-343
Panel, Filler-lh Blk
