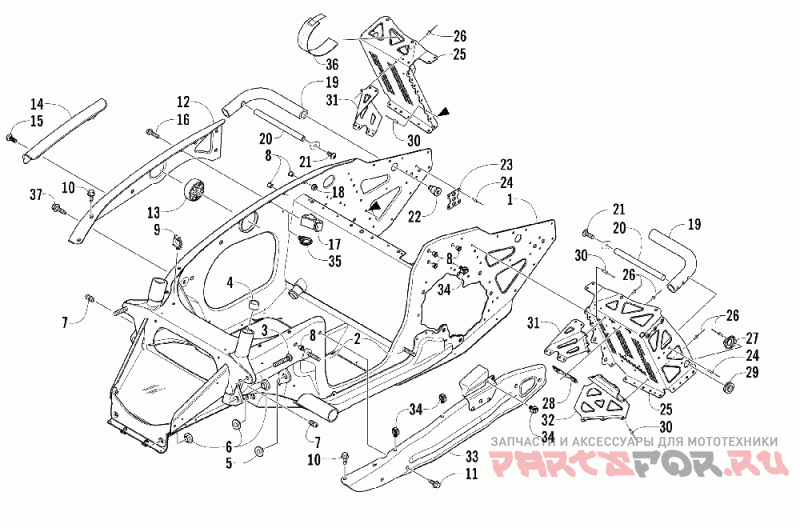

Передняя рама и подножки

Arctic Cat Crossfire 700 EFI IPM

Arctic Cat
#oem кодцена
1
1707-050
Chassis, S/p Assy-ptd Blk (inc. 2-8)
2
1623-359
Bolt, Ribbed Car-5/16-18x1.75
3
1623-019
Bolt, Rib Car-3/8-16x2.00
4
0675-161
Bearing-14du12
5
0607-656
Bushing, Upper- A-arm
6
0607-657
Bushing, Lower- A-arm
7
1623-010
Фиттинг
8
0623-581
Insert, A L Series Al57-518-150 5/16-18
9
1623-171
Clip, Snap
10
1623-480
Screw, Cap-hfh 1/4 20x.56 Zy (2353) Dpt
11
1623-481
Screw, Cap-hfh 5/16 18x.875 Zy (204) Dpt
12
3706-116
Brace, Side Plate-rh-ptd Blk
13
0608-404
Mount, Engine-60 Duro(w/o Counterbore)
14
3606-761
Protector, Main Harness-formed
15
1623-353
Винт 10-24 X 3/8
16
1623-204
Screw, Plastite-hwh 1/4-10x1.0 Z&y
17
0608-449
Guide, Rope-wide
18
8041-426
Гайка
19
3706-331
Tube, Support-footrest-ptd Blk
20
3706-332
Guard, Support-ptd Blk
21
8017-577
Screw, Mach-tstrh 1/4-20 X 1/2 Gr2 Z&y
22
1623-484
Screw, Tube-13/16-16 X .75 (2353) Dpt
23
2706-580
Plate, Backing-frt Arm-ptd Blk
25
3706-334
Footrest Assy- Rh-ptd Blk (inc. 26-27)
25
3706-333
Footrest Assy- Lh-ptd Blk (inc. 26-28)
27
3706-335
Plate, Retaining-ptd Blk
28
0607-835
Plate, Mtg-clutch Guard/footrest
29
1623-529
Grommet, Rubber-.50 Idx1.00 Odx.08 Grv
31
3706-336
Gusset, Footrest- Upper Rh-ptd Blk
31
3706-337
Gusset, Footrest-upper Lh-ptd Blk
32
3706-338
Gusset, Footrest-lh-ptd Blk
33
3706-129
Brace, Side Plate-lh-assy
34
1623-406
Зажим
35
0623-454
Clip, Snap-in (speedo-cable)
36
3706-033
Retainer, Tool Kit-velcro
37
1623-561
Винт
24
8060-686
Заклепка
26
8060-484
Rivet, Blind-dh Ss53 Zinc
30
1623-264
Rivet, Cherry-ccpq06-04
