Передний амортизатор для снегоходов Arctic Cat 440 SP (2005)

Москва и регионы России

Уважаемые покупатели оригинальных запчастей для техники ARCTIC CAT!
Сроки поставки запчастей марки ARCTIC CAT сейчас нормализовались и сравнимы со сроками поставки запчастей других американских марок. Однако у дилеров этой марки возможны сообщения про отказы и бэк-ордеры с большой задержкой – до месяца. Мы предупреждаем вас об этой особенности работы дилеров, приносим вам извинения за это неудобство и уверяем вас, что никак не можем повлиять на этот момент. Учитывайте пожалуйста это при заказе деталей!

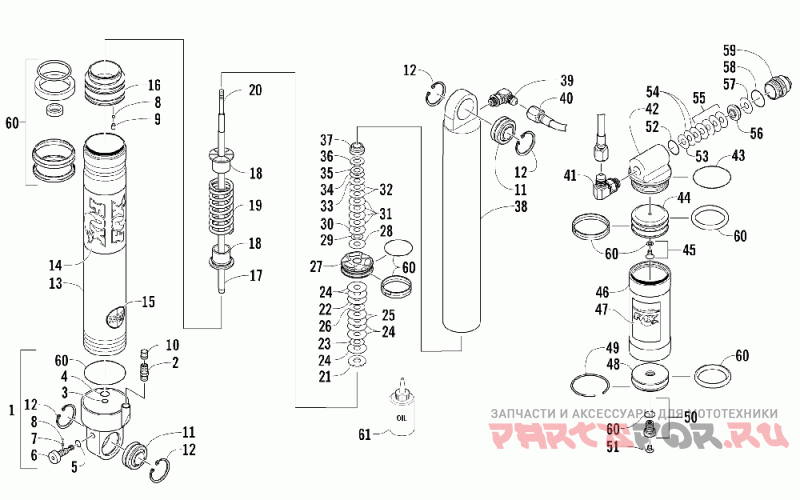

Передний амортизатор

Arctic Cat 440 SP

Передний амортизатор

#

oem код

название

цена

1

Cap, Air Sleeve-w/grooves 270 Deg Rh (inc. 2-7 And One

Cap, Air Sleeve-w/grooves 270 Deg Rh (inc. 2-7 And One

1

Cap, Air Sleeve-w/grooves 90 Deg Lh (inc. 2-7 And One

Cap, Air Sleeve-w/grooves 90 Deg Lh (inc. 2-7 And One

2

Valve, Air-assy - (fox)

Valve, Air-assy - (fox)

3

O-ring, .050 Cs X .154 Id

O-ring, .050 Cs X .154 Id

4

O-ring-end Cap Fitting(fox Only)

O-ring-end Cap Fitting(fox Only)

5

O-ring, .070 Cs X .301 Id

O-ring, .070 Cs X .301 Id

6

Knob, Damping Adjust-.498 Shaft, 1.310 Tlg

Knob, Damping Adjust-.498 Shaft, 1.310 Tlg

7

Spring, Rebound Detent

Spring, Rebound Detent

8

Ball, Bleed

Ball, Bleed

9

Screw-set, 8-32x.250

Screw-set, 8-32x.250

10

Cap, Valve-air - (fox)

Cap, Valve-air - (fox)

11

Bearing, Spherical

Bearing, Spherical

12

Retaining Ring, Snap-ss Internal

Retaining Ring, Snap-ss Internal

13

Sleeve, Air-assy-8.915"-(float)

Sleeve, Air-assy-8.915"-(float)

14

Decal, Fox Float Shox-05

Decal, Fox Float Shox-05

15

Decal, Maximum Pressure Warning-1.15 Od

Decal, Maximum Pressure Warning-1.15 Od

16

Bearing, .498 Assy-.645 Deep Negative

Bearing, .498 Assy-.645 Deep Negative

17

Shaft, Assy-.180idx.498od-10.425"

Shaft, Assy-.180idx.498od-10.425"

18

Guide, Spring-1.15od X .800 Tlg

Guide, Spring-1.15od X .800 Tlg

19

Spring, 2.500tlg X .830id X 76 Lb/in

Spring, 2.500tlg X .830id X 76 Lb/in

20

Rod, Damping Adjust-.168 Od X 9.085"

Rod, Damping Adjust-.168 Od X 9.085"

21

Washer, Top Out-1.125od X .378 Id X.093

Washer, Top Out-1.125od X .378 Id X.093

22

Valve, 1.300x.006(3/8id)

Valve, 1.300x.006(3/8id)

23

Valve, .900x.008(3/8id)

Valve, .900x.008(3/8id)

24

Valve, 1.300x.008(3/8id)

Valve, 1.300x.008(3/8id)

25

Valve, 1.300x.010(3/8id)

Valve, 1.300x.010(3/8id)

26

Valve, Shock 1.00x.004(040-04-100)

Valve, Shock 1.00x.004(040-04-100)

27

Piston, Damping-1.459 Bore-no Bleed

Piston, Damping-1.459 Bore-no Bleed

28

Valve, 1.100x.008(3/8id)

Valve, 1.100x.008(3/8id)

29

Valve, Shock- .700 Dia X .010

Valve, Shock- .700 Dia X .010

30

Valve, 1.100x.010(3/8id)

Valve, 1.100x.010(3/8id)

31

Valve, Shock 1.100 X.015

Valve, Shock 1.100 X.015

32

Valve, Shock 1.000 X.015

Valve, Shock 1.000 X.015

33

Valve, 1.000x.010(3/8id)

Valve, 1.000x.010(3/8id)

34

Valve, .900x.010(3/8id)

Valve, .900x.010(3/8id)

35

Valve, .800x.010(3/8id)

Valve, .800x.010(3/8id)

36

Washer, Backup

Washer, Backup

37

Nut, Cap-fox Shock

Nut, Cap-fox Shock

38

Body, Float-w/grooves-9.225"

Body, Float-w/grooves-9.225"

39

Fitting, 90 Deg 1/8-27 High Flow

Fitting, 90 Deg 1/8-27 High Flow

40

Hose, -5 Female Swivel-11.00"

Hose, -5 Female Swivel-11.00"

41

Fitting, Elbow-90 Deg

Fitting, Elbow-90 Deg

42

Housing, 1.834 Bore 7/16-20-damp Adj Assy

Housing, 1.834 Bore 7/16-20-damp Adj Assy

43

O-ring, .103 Cs X 1.737 Id

O-ring, .103 Cs X 1.737 Id

44

Piston, Internal Floating-assy

Piston, Internal Floating-assy

45

Screw, Relief W/ O-ring

Screw, Relief W/ O-ring

46

Reservoir, 1.834 Bore X 4.00 Tlg

Reservoir, 1.834 Bore X 4.00 Tlg

47

Decal, Fox Float Shox-05 Reservoir

Decal, Fox Float Shox-05 Reservoir

48

End Cap, Reservoir-assy 1.834 Bore

End Cap, Reservoir-assy 1.834 Bore

49

Retainer, .062x1.850 Id Endcap

Retainer, .062x1.850 Id Endcap

50

Valve, Pressure-ass'y

Valve, Pressure-ass'y

51

Винт 8-32x.25

Винт 8-32x.25

52

Ring, .070 X .801

Ring, .070 X .801

53

Valve, Shock-.500 X.006(1/4id)

Valve, Shock-.500 X.006(1/4id)

54

Valve, Shock-.600 X.010(1/4id)

Valve, Shock-.600 X.010(1/4id)

55

Valve, Shock-.700 X.010(1/4id)

Valve, Shock-.700 X.010(1/4id)

56

Piston, Concentric Adj-damp Adj Assy

Piston, Concentric Adj-damp Adj Assy

57

Valve, .700x.008(3/8id)

Valve, .700x.008(3/8id)

58

O-ring, .070 Cs X .989 Id

O-ring, .070 Cs X .989 Id

59

Cartridge, Single Adj-damp Adj Assy

Cartridge, Single Adj-damp Adj Assy

60

Rebuild Kit, Float W/reservoir

Rebuild Kit, Float W/reservoir

61

S/m Syn Shock Oil Med/lt Wt-1 Quart

S/m Syn Shock Oil Med/lt Wt-1 Quart
