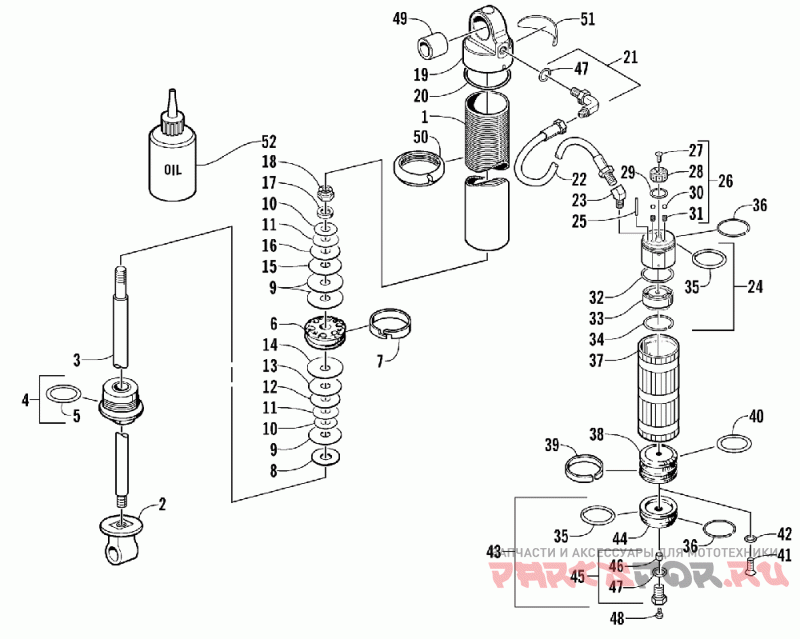

Задняя подвеска, передний амортизатор

Arctic Cat ZR 900 SP

Задняя подвеска, передний амортизатор

#

oem код

название

цена

1

Body, Shock-4.950(melonite)

Body, Shock-4.950(melonite)

2

Eyelet, Shock - .630 Dia X .950 Lgth

Eyelet, Shock - .630 Dia X .950 Lgth

3

Rod, Shock-6.025(melonite)

Rod, Shock-6.025(melonite)

4

Endcap - Assy (inc. 5)

Endcap - Assy (inc. 5)

5

O-ring, Outer

O-ring, Outer

6

Piston, 0.059 Orifice

Piston, 0.059 Orifice

7

Strap, Piston - Teflon

Strap, Piston - Teflon

8

Washer, Top Out -1.125 X .094

Washer, Top Out -1.125 X .094

9

Valve, Shock-1.250 Dia X .010

Valve, Shock-1.250 Dia X .010

10

Valve, Shock- .800 Dia X .010

Valve, Shock- .800 Dia X .010

11

Valve, Shock- .900 Dia X .010

Valve, Shock- .900 Dia X .010

12

Valve, Shock-1.000 Dia X .012

Valve, Shock-1.000 Dia X .012

13

Valve, Shock-1.100 Dia X .012

Valve, Shock-1.100 Dia X .012

14

Valve, Shock-1.300 Dia X .012

Valve, Shock-1.300 Dia X .012

15

Valve, Shock-1.100 Dia X .010

Valve, Shock-1.100 Dia X .010

16

Valve, Shock-1.000 Dia X .010

Valve, Shock-1.000 Dia X .010

17

Washer, Backup - .620 X .094

Washer, Backup - .620 X .094

18

Nut, Flex - 3/8-24 Unf Z&y

Nut, Flex - 3/8-24 Unf Z&y

19

End Cap, Shock - W/lugs

End Cap, Shock - W/lugs

20

O-ring, End Cap

O-ring, End Cap

21

Elbow, 90 Deg-7/16-20x7/16 W/flare (inc. One No. 47)

Elbow, 90 Deg-7/16-20x7/16 W/flare (inc. One No. 47)

22

Hose, Reservoir To Shock. 16in.

Hose, Reservoir To Shock. 16in.

23

45deg. Straight Thread Elbow, Flare Tube

45deg. Straight Thread Elbow, Flare Tube

24

End Cap, Reservoir-1/8-27 Npt (inc. 25-34 And One No. 35)

End Cap, Reservoir-1/8-27 Npt (inc. 25-34 And One No. 35)

25

Pin, Indicator-knob

Pin, Indicator-knob

26

Knob, Adjuster - Assembly (inc. 27-31)

Knob, Adjuster - Assembly (inc. 27-31)

29

Ring, .070 X .801

Ring, .070 X .801

30

Ball , Detent-.1875 Dia

Ball , Detent-.1875 Dia

31

Spring, Detent-.022 X .190 X .25 Long

Spring, Detent-.022 X .190 X .25 Long

32

O-ring - .103 X 1.362

O-ring - .103 X 1.362

33

Oil Relief, 2 Port- Assy

Oil Relief, 2 Port- Assy

34

Circlip, Valve Body - .063 Dia X 1.38 Id

Circlip, Valve Body - .063 Dia X 1.38 Id

35

O-ring - .139 X 1.484

O-ring - .139 X 1.484

36

Circlip, Reservoir - .063 Dia X 1.77 Id

Circlip, Reservoir - .063 Dia X 1.77 Id

37

Body, Reservoir-4.75" Grooved

Body, Reservoir-4.75" Grooved

38

Piston, Floating - Reservior

Piston, Floating - Reservior

39

Strap, Piston - Floating - Teflon

Strap, Piston - Floating - Teflon

40

O-ring - .210 X 1.350

O-ring - .210 X 1.350

41

Screw, Mach - Hsfh 10-24x3/8 Blk

Screw, Mach - Hsfh 10-24x3/8 Blk

42

O-ring, -008 (3/16x5/16x1/16)

O-ring, -008 (3/16x5/16x1/16)

43

End Cap, Reservoir,assy (inc. One

End Cap, Reservoir,assy (inc. One

44

Endcap, Reservoir

Endcap, Reservoir

45

Valve, Pressure - Assy (inc. 46 And

Valve, Pressure - Assy (inc. 46 And

47

O-ring, Pressure Valve

O-ring, Pressure Valve

48

Screw, Mach - Hsbh 8-32x1/4 Ss

Screw, Mach - Hsbh 8-32x1/4 Ss

49

Втулка

Втулка

50

Nut, Spring Adjuster

Nut, Spring Adjuster

51

Decal, Shock-warning

Decal, Shock-warning

9

Valve, Shock-1.250 Dia X .010

Valve, Shock-1.250 Dia X .010

52

S/m Shock Oil-1 Quart

S/m Shock Oil-1 Quart
