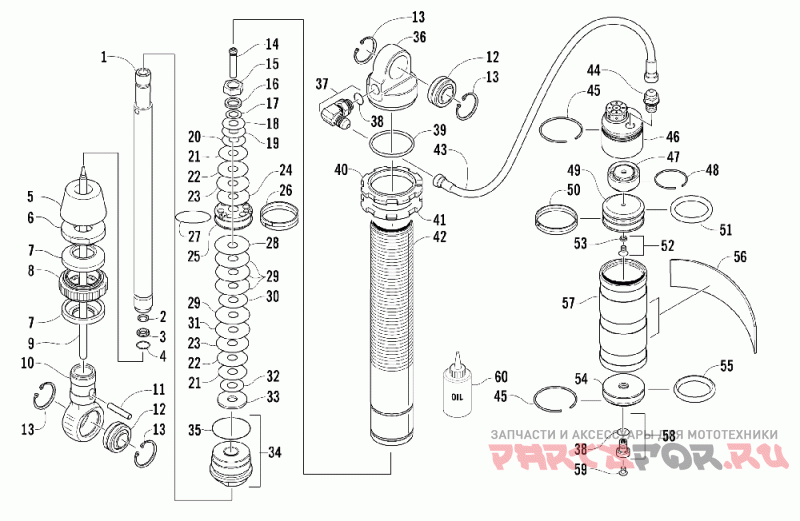

Передний амортизатор

Arctic Cat 440 SP

Передний амортизатор

#

oem код

название

цена

1

Shaft, .250id X .620od X 9.95tlg

Shaft, .250id X .620od X 9.95tlg

2

O-ring, .070 Cs X .239 Id

O-ring, .070 Cs X .239 Id

3

Washer, .252idx.437odx.090th

Washer, .252idx.437odx.090th

4

Snap Ring, Internal

Snap Ring, Internal

5

Bumper, Zero X

Bumper, Zero X

6

Spring, Retainer-1.495 Od X .450tlg

Spring, Retainer-1.495 Od X .450tlg

7

Cover, Dust-rebound Adjust

Cover, Dust-rebound Adjust

8

Damping Adjust Assy, Knob W/insert

Damping Adjust Assy, Knob W/insert

9

Metering, Rod-assy

Metering, Rod-assy

10

Eyelet, W/grooves-.620 Shaft X 2.075 Tlg

Eyelet, W/grooves-.620 Shaft X 2.075 Tlg

11

Pin, Dowel Ss-.1875 X 1.000

Pin, Dowel Ss-.1875 X 1.000

12

Bearing, Spherical

Bearing, Spherical

13

Ring, Intl Rtng-1.00 Dia

Ring, Intl Rtng-1.00 Dia

14

Jet, Damping Adjust-.122idx1.405tlg.620sh

Jet, Damping Adjust-.122idx1.405tlg.620sh

15

Nut, Piston

Nut, Piston

16

Washer, Backup 1/2" Idx .700" Od X .100"

Washer, Backup 1/2" Idx .700" Od X .100"

17

Valve, .650 Od X .504 Id X .020 Th

Valve, .650 Od X .504 Id X .020 Th

18

Valve, .700 Od X .504 Id X .020 Th

Valve, .700 Od X .504 Id X .020 Th

19

Valve, .800 Od X .504 Id X .020 Th

Valve, .800 Od X .504 Id X .020 Th

20

Valve, .800 Od X .504 Id X .010 Th

Valve, .800 Od X .504 Id X .010 Th

21

Valve, .950 Od X .504 Id X .010 Th

Valve, .950 Od X .504 Id X .010 Th

22

Valve, 1.100 Od X .504 Id X .010 Th

Valve, 1.100 Od X .504 Id X .010 Th

23

Valve, 1.250 Od X .504 Id X .008 Th

Valve, 1.250 Od X .504 Id X .008 Th

24

Valve, 1.250 Od X .504 Id X .010 Th

Valve, 1.250 Od X .504 Id X .010 Th

25

Piston, Al High Flow-1.459 Bore-no Bleed

Piston, Al High Flow-1.459 Bore-no Bleed

26

Strap, Piston-(step)-turcite

Strap, Piston-(step)-turcite

27

O-ring, 25mm Id X 1.0mm Cs

O-ring, 25mm Id X 1.0mm Cs

28

Valve, 1.350 Od X .504 Id X .006 Th

Valve, 1.350 Od X .504 Id X .006 Th

29

Valve, 1.350 Od X .504 Id X .008 Th

Valve, 1.350 Od X .504 Id X .008 Th

30

Valve, .950 Od X .504 Id X .012 Th

Valve, .950 Od X .504 Id X .012 Th

31

Valve, 1.350 Od X .504 Id X .010 Th

Valve, 1.350 Od X .504 Id X .010 Th

32

Valve, .800 Od X .504 Id X .006 Th

Valve, .800 Od X .504 Id X .006 Th

33

Washer, Top-out-1.125od X .503id X .093th

Washer, Top-out-1.125od X .503id X .093th

34

Bearing, .625 Assy (end Cap) (inc. 35)

Bearing, .625 Assy (end Cap) (inc. 35)

35

Кольцо уплотнительное

Кольцо уплотнительное

36

Body, Cap-1.459 Bore

Body, Cap-1.459 Bore

37

Fitting, Elbow-90 Deg (inc. One No. 38)

Fitting, Elbow-90 Deg (inc. One No. 38)

38

O-ring-end Cap Fitting(fox Only)

O-ring-end Cap Fitting(fox Only)

39

O-ring -end Cap

O-ring -end Cap

40

Ring, Preload Back Up-2.4odx.250tlg

Ring, Preload Back Up-2.4odx.250tlg

41

Adjuster, Spring-zero X

Adjuster, Spring-zero X

42

Body, 1.459 Bore 8.515 Tlg

Body, 1.459 Bore 8.515 Tlg

43

Hose, Female-1/2-20x11

Hose, Female-1/2-20x11

44

Fitting, Adaptor--5 Male Jic-1/8-27 Mnpt

Fitting, Adaptor--5 Male Jic-1/8-27 Mnpt

45

Retainer, .062x1.850 Id Endcap

Retainer, .062x1.850 Id Endcap

46

Damping Adjust, Compression-assy-blk

Damping Adjust, Compression-assy-blk

47

Damping Adjust, Plate-assy

Damping Adjust, Plate-assy

48

Ring, Retaining-spiral

Ring, Retaining-spiral

49

Piston, Internal Floating

Piston, Internal Floating

50

Strap, Piston - Res

Strap, Piston - Res

51

O-ring, .210 C.s. X 1.350 Id

O-ring, .210 C.s. X 1.350 Id

52

Screw, Relief W/ O-ring (inc. 53)

Screw, Relief W/ O-ring (inc. 53)

53

O-ring(fox Only)

O-ring(fox Only)

54

Endcap, Reservoir-1.834 Bore X 7/16-20

Endcap, Reservoir-1.834 Bore X 7/16-20

55

O-ring, Res Endcap

O-ring, Res Endcap

56

Decal, Zero X Reservoir-6.25x3.125

Decal, Zero X Reservoir-6.25x3.125

57

Reservoir, 1.834 Bore X 5.00 Tlg

Reservoir, 1.834 Bore X 5.00 Tlg

58

Valve, Pressure-ass'y

Valve, Pressure-ass'y

59

Винт 8-32x.25

Винт 8-32x.25

60

S/m Syn Shock Oil Med/lt Wt-1 Quart

S/m Syn Shock Oil Med/lt Wt-1 Quart
