Передний амортизатор для снегоходов Arctic Cat ZR 500 LE (2002)

Москва и регионы России

Уважаемые покупатели оригинальных запчастей для техники ARCTIC CAT!
Сроки поставки запчастей марки ARCTIC CAT сейчас нормализовались и сравнимы со сроками поставки запчастей других американских марок. Однако у дилеров этой марки возможны сообщения про отказы и бэк-ордеры с большой задержкой – до месяца. Мы предупреждаем вас об этой особенности работы дилеров, приносим вам извинения за это неудобство и уверяем вас, что никак не можем повлиять на этот момент. Учитывайте пожалуйста это при заказе деталей!

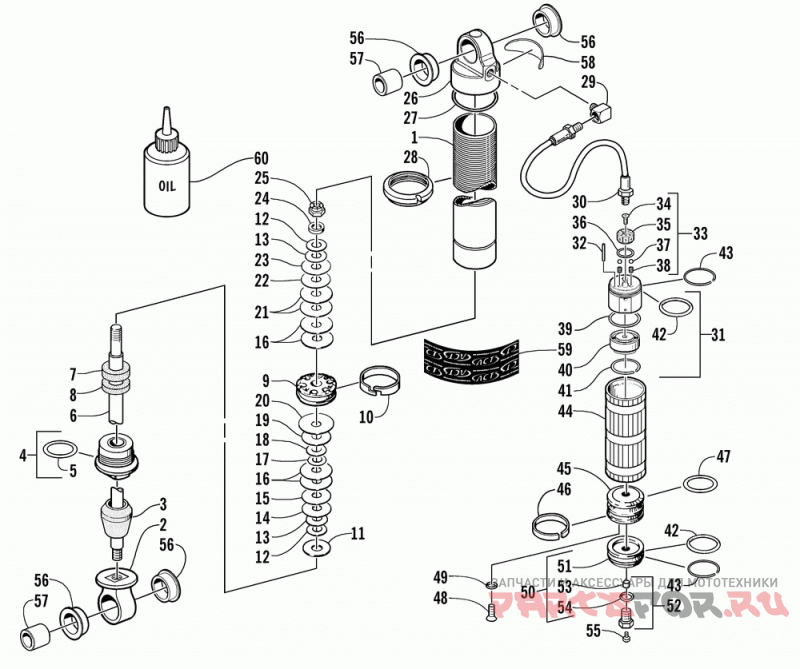

Передний амортизатор

Arctic Cat ZR 500 LE

Передний амортизатор

#

oem код

название

цена

Shock, Ski-clicker-rh

Shock, Ski-clicker-rh

Shock, Ski-clicker-lh

Shock, Ski-clicker-lh

1

Body, Shock-8.900(melonite)

Body, Shock-8.900(melonite)

2

Eyelet, Shock-fr Susp(fox Only)

Eyelet, Shock-fr Susp(fox Only)

3

Bumper, Jounce-basf 415135-002

Bumper, Jounce-basf 415135-002

4

End Cap, Long - Assy (inc. 5)

End Cap, Long - Assy (inc. 5)

5

O-ring, Outer

O-ring, Outer

6

Shaft, Float-.498 Od X 9.850

Shaft, Float-.498 Od X 9.850

7

Spacer, Shaft-.530id X .75 Od X .25

Spacer, Shaft-.530id X .75 Od X .25

8

Spacer, Shaft (.530 Id X .75 Od X .375)

Spacer, Shaft (.530 Id X .75 Od X .375)

9

Piston, .081 Orifice

Piston, .081 Orifice

10

Strap, Piston - Teflon

Strap, Piston - Teflon

11

Washer, Top Out -1.125 X .094

Washer, Top Out -1.125 X .094

12

Valve, Shock- .800 Dia X .010

Valve, Shock- .800 Dia X .010

13

Valve, Shock- .900 Dia X .010

Valve, Shock- .900 Dia X .010

14

Valve, Shock-1.000 Dia X .008

Valve, Shock-1.000 Dia X .008

15

Valve, Shock-1.100 Dia X .008

Valve, Shock-1.100 Dia X .008

16

Valve, Shock-1.250 Dia X .006

Valve, Shock-1.250 Dia X .006

17

Valve, Shock- .700 Dia X .008

Valve, Shock- .700 Dia X .008

18

Valve, Shock-.900 Dia X .006

Valve, Shock-.900 Dia X .006

19

Valve, Shock-1.100 Dia X .006

Valve, Shock-1.100 Dia X .006

20

Valve, Shock-1.300 Dia X .006

Valve, Shock-1.300 Dia X .006

21

Valve, Shock-1.250 Dia X .008

Valve, Shock-1.250 Dia X .008

22

Valve, Shock-1.100 Dia X .010

Valve, Shock-1.100 Dia X .010

23

Valve, Shock-1.000 Dia X .010

Valve, Shock-1.000 Dia X .010

24

Washer, Backup - .620 X .094

Washer, Backup - .620 X .094

25

Nut, Flex - 3/8-24 Unf Z&y (5 Per Pack)

Nut, Flex - 3/8-24 Unf Z&y (5 Per Pack)

26

End Cap, Shock-clicker

End Cap, Shock-clicker

27

O-ring, End Cap

O-ring, End Cap

28

Nut, Spring Adjuster

Nut, Spring Adjuster

29

Elbow, Hose Fitting - Brass

Elbow, Hose Fitting - Brass

30

Hose, Res To Shock - 9.00"

Hose, Res To Shock - 9.00"

31

End Cap, Reservoir-1/8-27 Npt (inc. 32-41 And One No. 42)

End Cap, Reservoir-1/8-27 Npt (inc. 32-41 And One No. 42)

32

Pin, Indicator-knob

Pin, Indicator-knob

33

Knob, Adjuster - Assembly (inc. 34-38)

Knob, Adjuster - Assembly (inc. 34-38)

36

Ring, .070 X .801

Ring, .070 X .801

37

Ball , Detent-.1875 Dia

Ball , Detent-.1875 Dia

38

Spring, Detent-.022 X .190 X .25 Long

Spring, Detent-.022 X .190 X .25 Long

39

O-ring - .103 X 1.362

O-ring - .103 X 1.362

40

Oil Relief, 2 Port- Assy

Oil Relief, 2 Port- Assy

41

Circlip, Valve Body - .063 Dia X 1.38 Id

Circlip, Valve Body - .063 Dia X 1.38 Id

42

O-ring - .139 X 1.484

O-ring - .139 X 1.484

43

Circlip, Reservoir - .063 Dia X 1.77 Id

Circlip, Reservoir - .063 Dia X 1.77 Id

44

Body, Reservoir-4.75" Grooved

Body, Reservoir-4.75" Grooved

45

Piston, Floating - Reservior

Piston, Floating - Reservior

46

Strap, Piston - Floating - Teflon

Strap, Piston - Floating - Teflon

47

O-ring - .210 X 1.350

O-ring - .210 X 1.350

48

Screw, Mach - Hsfh 10-24x3/8 Blk

Screw, Mach - Hsfh 10-24x3/8 Blk

49

O-ring, -008 (3/16x5/16x1/16) (4 Per Pack)

O-ring, -008 (3/16x5/16x1/16) (4 Per Pack)

50

End Cap, Reservoir,assy (inc. One No. 42 And 51-54)

End Cap, Reservoir,assy (inc. One No. 42 And 51-54)

51

Endcap, Reservoir

Endcap, Reservoir

52

Valve, Pressure - Assy (inc. 53-54)

Valve, Pressure - Assy (inc. 53-54)

54

O-ring, Pressure Valve

O-ring, Pressure Valve

55

Screw, Mach - Hsbh 8-32x1/4 Ss

Screw, Mach - Hsbh 8-32x1/4 Ss

56

Втулка изолирующая

Втулка изолирующая

57

Sleeve, Eyelet - Inner - .790 Tlg

Sleeve, Eyelet - Inner - .790 Tlg

58

Decal, Shock-warning

Decal, Shock-warning

59

Decal, Shock-2002-act-2.3"x5"

Decal, Shock-2002-act-2.3"x5"

60

S/m Shock Oil-1 Quart (6 Per Pack)

S/m Shock Oil-1 Quart (6 Per Pack)
