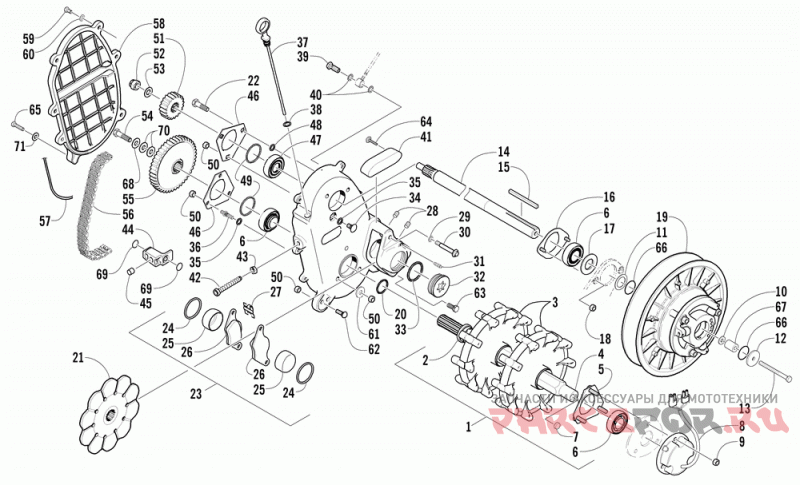

Drive train shafts, brake, and dropcase assemblies

Arctic Cat ZR 440 SNO PRO

Arctic Cat
#oem кодцена
1
0728-066
Track Drive/magnet-assy (inc. 2-5, One No. 6, And 7)
2
1602-114
Collar, Hub-brake Disk
3
1602-247
Sprocket, Drive-10t-7.94 Dia
4
1602-240
Shaft, Drive - 1 1/4 Hex
5
0702-412
Фланец подшипника внутрений
6
1602-233
Подшипник
7
0630-167
Магнитик
8
0630-156
Regulator, Voltage-w/sensor(rb 0630-170)
9
8040-426
Nut, Hex Lock-nyl 5/16-18 Z&y (20 Per Pack)
10
0123-053
Washer, Flat 5/16 X 3/4 (5 Per Pack)
11
0623-118
Шайба 1.00 X1.43 X.030
12
0123-019
Wshr, Flat 21/64x1-1/2x (10 Per Pack)
13
8002-139
Screw, Cap-hh 5/16-18 X2.50 G5 Z&y (5 Per Pack)
14
0702-437
Вал
15
0101-076
Key 3/16 X 1/4 X 3 (5 Per Pack)
16
0702-428
Flange, Bearing - Assy
17
1602-286
Spacer, Driven Clutch
18
8041-366
Nut, Hex Thin Lock-nyl 1/4-20 Z&y (10 Per Pack)
19
0726-140
Clutch, Driven-w/o Plates(55-52/cgrn)
20
1602-199
O-ring, Brake Hub-1 1/8"
21
1602-325
Disk, Brake-radial Grooves
22
8002-135
Screw, Cap-hh 5/16-18 X1.50 G5 Z&y (5 Per Pack)
23
0702-445
Dropcase, W/brake Cal. Assy (inc. 24-36 And 48)
24
1602-276
O-ring, Sq. Cut (2 Per Pack)
26
1602-327
Pad, Brake-wellman (2 Per Pack)
27
1602-228
Spring, Anti Rattle - Brake Pad
28
0402-589
Plug, Npt 1/16(ol) (2 Per Pack)
29
1602-280
Washer, Star Lock (2 Per Pack)
30
1602-279
Bolt, Flange-5/16-18 W/nylock (2 Per Pack)
31
0502-609
Bleeder, Caliper (fc)
32
1602-229
Plug, Caliper
33
1602-278
Seal, O-ring
34
0123-523
Bolt, Rib Neck-rdh 5/16-18x.625 Z&y (5 Per Pack)
35
0607-025
O-ring, Stud (5 Per Pack)
36
1623-021
Stud, Ribbed-dropcase 5/16-18
37
0702-413
Stick, Check-oil Level-assy (inc. 38)
38
1602-212
O-ring, 02-f2
39
0423-392
Bolt, Banjo Fitting
40
0423-178
Шайба (5 шт в упаковке)
41
1602-285
Guard, Caliper-plastic
42
0602-638
Screw, Chain Roller
43
0123-150
Nut, Jam 3/8-16 (20 Per Pack)
44
1602-224
Adjuster, Chain-manual-plastic
45
1602-283
Bumper, Chain Adjuster
46
0602-932
Plate, Flange-brg.
47
1702-180
Подшипник
48
1602-322
O-ring, 2-203 (2 Per Pack)
49
0107-003
Seal, O Ring .093 (2 Per Pack)
50
8041-426
Nut, Hex Thin Lock-nyl 5/16-18 Z&y (10 Per Pack)
51
1602-150
Sprocket, 20t (15 Wide)
52
0623-465
Nut, Flex-loc 1/2-20 (2 Per Pack)
53
0623-231
Шайба,пружинчатая тарелка
54
8002-224
Screw, Cap-hh 3/8-16 X1.25 G5 Z&y (5 Per Pack)
55
1602-245
Sprocket, 44t-13 Wide
56
1602-037
Chain, 74p (15 Wide)
57
1602-328
Кольцо (отпускается по 2шт)
58
1602-171
Cover, Dropcase-plastic
59
8002-039
Screw, Cap-hh 1/4-20 X.625 G5 Z&y (5 Per Pack)
60
8053-212
Шайба (отпуск.по 5 шт)
61
8050-247
Washer, Flat- 5/16 X .688 X .065 Z&y (10 Per Pack)
62
8011-132
Bolt, Crg 5/16-18x1.0 Gr1 Z&y (5 Per Pack)
63
8002-130
Screw, Cap-hh 5/16-18 X .75 G5 Z&y (10 Per Pack)
64
1623-031
Screw, Self Tap-tstrh #10-12x1.00 (5 Per Pack)
66
0616-032
O-ring-windshield (1 I.d.) (6 Per Pack)
67
0648-042
Shaft, Stub-driven (1.60")
68
1623-038
Washer, Spring-belleville-1.50x.390
69
1602-249
O-ring, 2-204
70
0623-044
Wshr, Flat Hard .375 X.875 (5 Per Pack)
71
8050-222
Washer, Flat- 1/4 X .734 X .063 Z&y (20 Per Pack)
