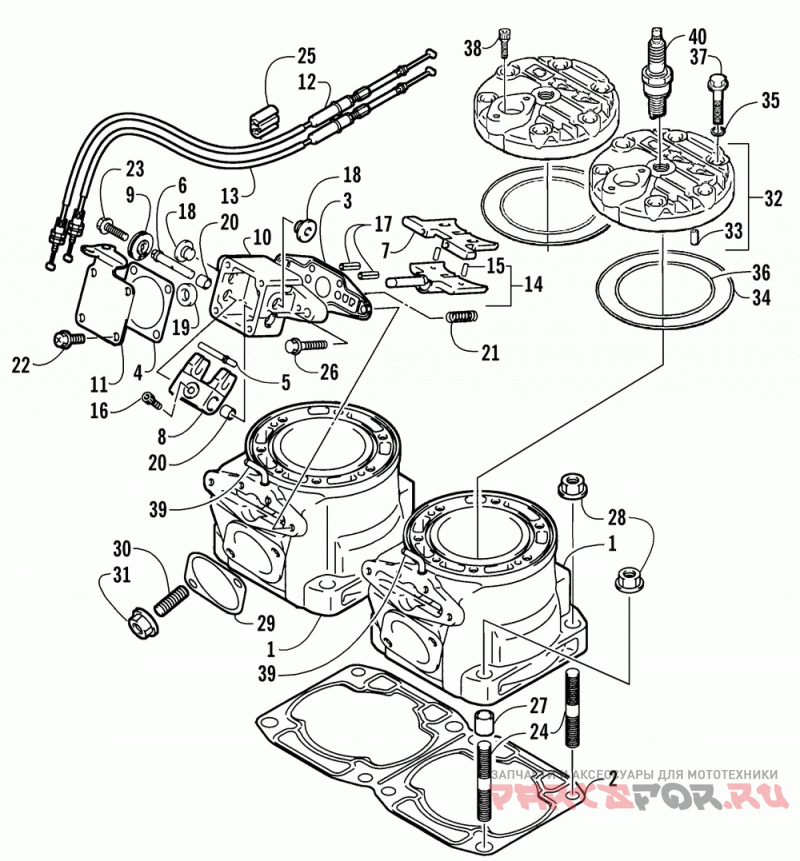

Цилиндр и головка

Arctic Cat ZR 440 SNO PRO

Arctic Cat
#oem кодцена
1
3006-327
Cylinder '02 440 Sno Pro
2
3006-423
Прокладка цилиндра
3
3006-329
Gasket, Exhaust Valve Cover
4
3006-330
Gasket, Exh Valve Cover '02 440 Sno Pro
5
3006-331
Pin, Exh Valve '02 440 Sno Pro
6
3006-332
Shaft, Exh Valve '02 440 Sno Pro
7
3006-333
Valve, Exh Middle '02 440 Sno Pro
8
3006-334
Arm, Exh Valve '02 440 Sno Pro
9
3006-335
Pulley, Exh Valve Shaft '02 440 Sno Pro
10
3006-337
Case, Exh Valve '02 440 Sno Pro
11
3006-338
Cover, Exh Valve '02 440 Sno Pro
12
3006-339
Cable Assy, Exh Valve No.1'02 440 Sno Pro
13
3006-340
Cable Assy, Exh Valve No.2'02 440 Sno Pro
14
3006-341
Valve Assy, Exh Low '02 440 Sno Pro (inc. 15)
15
3423-114
Mm (dowel) (2 Per Pack)
16
3006-320
Bolt, Exh Valve Shaft Arm '02 440 Sno Pro
17
3006-321
Pin, 5x10 '02 440 Sno Pro (4 Per Pack)
18
3423-452
Plug, Round-head
19
3006-322
Seal, Oil, 12x21x7 '02 440 Sno Pro
20
3006-323
Bush '02 440 Sno Pro
21
3006-325
Spring '02 440 Sno Pro
22
0693-324
Bolt, Gov Spring Hook-m5x12
23
3004-988
Bolt, M5x16
24
3005-596
Stud, Bolt
25
3005-808
Зажим
26
3007-380
Болт
27
3004-975
Палец
28
3007-391
Гайка
29
3003-503
Прокладка
30
3007-415
Шпилька
31
3007-390
Гайка
32
3006-326
Head Assy, Cylinder '02 440 Sno Pro (inc. 33)
33
3006-321
Pin, 5x10 '02 440 Sno Pro (4 Per Pack)
34
3003-226
O Ring, Head-outer (2 Per Pack)
35
3003-227
O-ring, Cyl Hd Blt (5 Per Pack)
36
3003-224
O Ring, Head-inner (2 Per Pack)
37
3007-460
Болт
38
3004-475
Bolt, 6x25 (r/b 3007-509) (10 Per Pack)
39
2670-203
Fitting, 90 Elbow-3/16 Barb X .220 Id
40
0217-709
Spark Plug, Br9eya (br9eya) (10 Per Pack)
