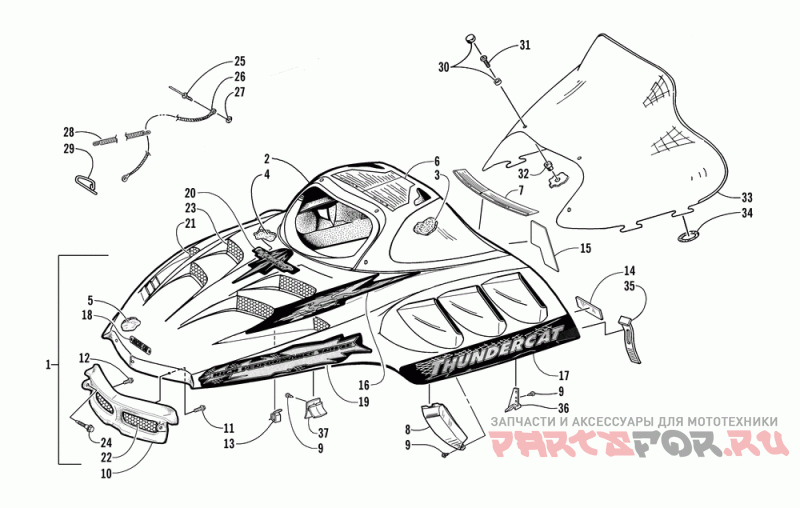

Капот и ветровое стекло

Arctic Cat THUNDERCAT

Arctic Cat
#oem кодцена
1
1718-037
Hood W/decals-02 Thundercat (inc. 2-20)
2
1718-115
Hood W/o Decals-02 Thc (inc. 3-15)
3
0717-112
Шумоизоляция правая
3
0717-113
Шумоизоляция левая
4
0717-136
Foam, Hood-rh
4
0717-137
Foam, Hood-lh
5
0619-206
Теплозащитная фольга
6
3611-360
Decal, Warning-genl & Brake
7
4611-010
Decal, Caution -eng/btry/fuel
8
1606-632
Plug, Vent-rh
8
1606-633
Plug, Vent-lh
9
0623-257
Screw, Self Tap-hwh #8x1/2 Type A (10 Per Pack)
10
2606-311
Hinge, Hood-pewter (silver)
11
0623-790
Screw, Hi-lo #10 X 1.00 Hwh (5 Per Pack)
12
0623-791
Screw, Hi-lo #10 X 0.75 Hwh (5 Per Pack)
13
0123-394
Clip Cable (10 Per Pack)
14
3611-509
Decal, Warning-seating Capacity
15
3611-580
Наклейка,реверс
16
4611-158
Decal, Hood Vent-rh
16
4611-157
Decal, Hood Vent-lh
17
4611-156
Decal, Hood Lwr-rh
17
4611-155
Decal, Hood Lwr Lh
18
4611-419
Decal, Nose "arctic Cat"
19
4611-162
Decal, Hood Fwd Side-rh
19
4611-161
Decal, Hood Fwd Side-lh
20
4611-163
Decal, Hood Center
21
1706-351
Screen, Hood Vent-ptd Platinum-rh (silver)
21
1706-352
Screen, Hood Vent-ptd Platinum-lh (silver)
22
1706-355
Screen, Hood Vent-ptd Platinum-frt Ctr (silver)
23
1706-354
Screen, Hood Vent-ptd Platinum-ctr Rh (silver)
23
1706-353
Screen, Hood Vent-ptd Platinum-ctr Lh (silver)
24
0623-777
Screw, Self Tap-hdh Shoulder 1/4x1.50 Z& (2 Per Pack)
25
8061-708
Заклепка -черная (отпуск по 10 шт )
26
0616-614
Cable, Hood-36.5 (.20 Eyelet Both Ends)
27
0123-802
Шайба (отпускается по 4 шт)
28
0123-510
Spring, Extn-harness 4.50
29
0115-528
Cable Hook
30
0124-054
Крышка с шайбой (10 шт в упаковке)
31
0623-902
Винт 10-32x5/8 (отпускается по 5шт)
32
0623-845
Гайка (5 шт в упаковке)
33
1606-323
Windshield - Formed
34
0616-032
O-ring-windshield (1 I.d.) (6 Per Pack)
35
1606-067
Strap, Holddown- Hood (5 Per Pack)
36
1606-321
Guide, Hood
37
1606-622
Guide, Hood (front) (2 Per Pack)
