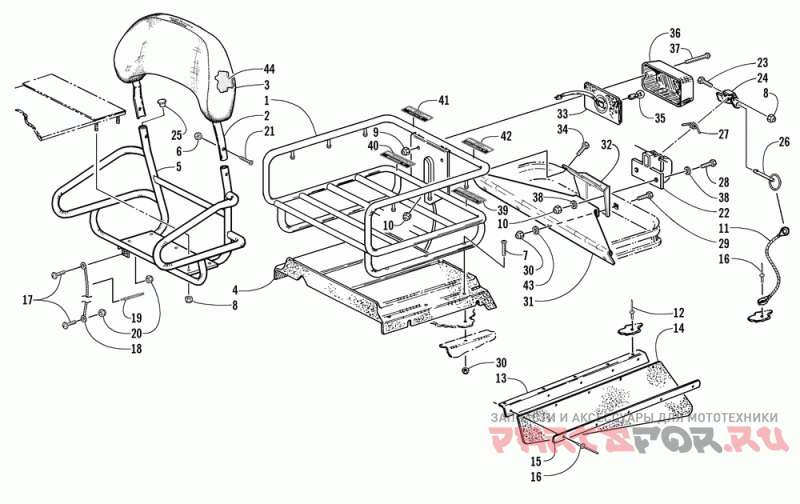

Rack, backrest, hitch, and taillight assemblies

Arctic Cat BEARCAT WIDE TRACK

Arctic Cat
#oem кодцена
1
0716-627
Rack, Weld't W/t
2
0716-680
Backrest-assy (inc. 3 And 44)
3
0716-679
Чехол спинки
4
0616-848
Cover, Tunnel-extension
5
0716-296
Brkt, Mtg - Backrest-weld't
6
0123-108
Nut 1/4-20 Nyl Cap (5 Per Pack)
7
0623-060
Screw, Oval Head-1/4-20x1-1/2 (5 Per Pack)
8
8040-366
Nut, Hex Lock-nyl 1/4-20 Z&y (20 Per Pack)
9
0123-709
Nut, Hex 10-32 W/lockwasher (4 Per Pack)
10
8040-426
Nut, Hex Lock-nyl 5/16-18 Z&y (20 Per Pack)
11
0637-121
Update Kit, Handgrip
12
8060-504
Заклепка (цена за шт.(20шт в упаковке)
13
2706-179
Retainer, Side-snowflap-ptd Blk
14
0616-660
Snowflap, Side
15
0616-709
Strap, Side Snowflap
16
8060-428
Rivet, Blind-dh Aa56 Blk (10 Per Pack)
17
0623-413
Screw, Mach-phtrh-10-32x 1/2-z&y (5 Per Pack)
19
0623-199
Spring, Extension (5 Per Pack)
20
0123-430
Nut, Flex, Lock 10-32 (5 Per Pack)
21
8017-584
Screw, Mach-tstrh 1/4-20 X 1 1/4 Gr2 Z&y (5 Per Pack)
22
0706-727
Hitch, Pintal-assy-swedish (inc. 23-24 And 26-27)
23
8002-046
Screw, Cap-hh 1/4-20 X1.75 G5 Z&y (10 Per Pack)
24
2706-229
Latch, Hitch-ptd Blk
25
0606-487
Closure, Tube-3/4 X 14 Ga.
26
0623-213
Pin, Hitch-cotterless-swedish
27
0623-335
Spring, Trailer Hitch Latch
28
8002-132
Screw, Cap-hh 5/16-18 X1.00 G5 Z&y (5 Per Pack)
29
8011-040
Bolt, Crg 1/4-20x.75 Gr1 Z&y (25 Per Pack)
30
8041-366
Nut, Hex Thin Lock-nyl 1/4-20 Z&y (10 Per Pack)
31
1606-646
Brkt, Hitch Support
32
0716-818
Brkt, Mtg Hitch Weld't- ( Swede )
33
0609-230
Корпус фонаря
34
8002-130
Screw, Cap-hh 5/16-18 X .75 G5 Z&y (10 Per Pack)
35
0109-460
Bulb, Stop/taillamp (2 Per Pack)
36
0609-229
Стекло фонаря
37
0623-303
Винт
38
8050-252
Washer, Flat- 5/16 X .875 X .063 Z&y (10 Per Pack)
39
1611-567
Decal, Warning-towing(french) (french)
40
1611-566
Decal, Warning-towing(english) (english)
41
1611-568
Decal, Warning-max Payload Wt (french)
42
1611-569
Decal, Warning-max Payload Wt(french) (english)
43
8050-217
Шайба 1/4 X .625 X .065 (отпускается по 10 шт)
44
0716-705
Foam, Backrest(idl N/a), 44@1.8
11
1606-646
Brkt, Hitch Support
17
0604-898
Washer, Pivot-hitch
18
8002-220
Screw, Cap-hh 3/8-16 X.75 G5 Z&y (5 Per Pack)
19
1606-782
Spring, Compression-2.72"
20
0604-900
Washer, Support-hitch
21
8041-366
Nut, Hex Thin Lock-nyl 1/4-20 Z&y (10 Per Pack)
22
1706-024
Brkt, Mtg Hitch-weldt
23
0616-577
Bumper, Hitch
24
0609-230
Корпус фонаря
25
8002-130
Screw, Cap-hh 5/16-18 X .75 G5 Z&y (10 Per Pack)
26
0109-460
Bulb, Stop/taillamp (2 Per Pack)
27
0609-229
Стекло фонаря
28
0623-303
Винт
29
1706-054
Shaft, Tongue Hitch-pivot-ptd Blk
30
0716-456
Plate, Hitch-ptd Blk
31
0616-958
Pin, Hitch
32
0135-050
Pin, Cotter, 3/32 Dia X 3/4 (5 Per Pack)
33
8011-040
Bolt, Crg 1/4-20x.75 Gr1 Z&y (25 Per Pack)
34
8017-584
Screw, Mach-tstrh 1/4-20 X 1 1/4 Gr2 Z&y (5 Per Pack)
35
0616-576
Washer, Stop-hitch
37
0623-413
Screw, Mach-phtrh-10-32x 1/2-z&y (5 Per Pack)
38
0123-430
Nut, Flex, Lock 10-32 (5 Per Pack)
39
0623-199
Spring, Extension (5 Per Pack)
40
0606-487
Closure, Tube-3/4 X 14 Ga.
41
8050-217
Шайба 1/4 X .625 X .065 (отпускается по 10 шт)
42
1611-566
Decal, Warning-towing(english) (english)
43
1611-567
Decal, Warning-towing(french) (french)
44
1611-568
Decal, Warning-max Payload Wt (english)
45
1611-569
Decal, Warning-max Payload Wt(french) (french)
46
0716-705
Foam, Backrest(idl N/a), 44@1.8
47
8050-242
Шайба - 5/16 X .625 X .063 (10 шт в упаковке)
