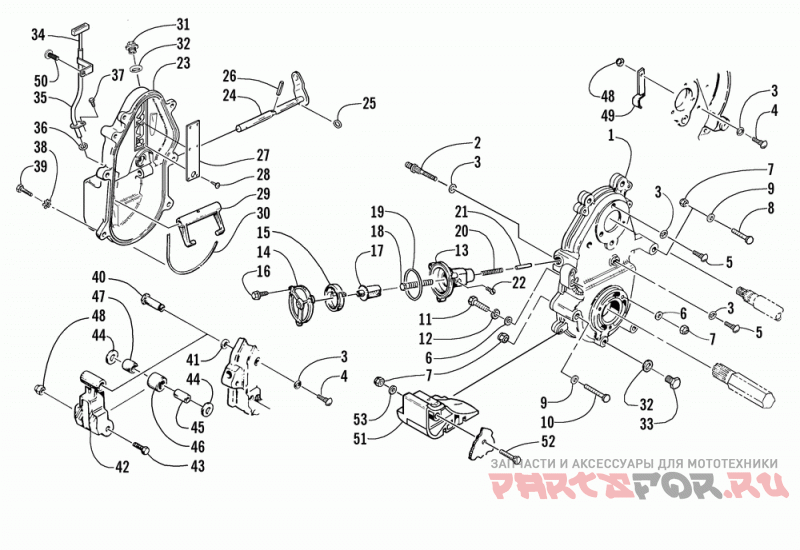

Трансмиссия 2

Arctic Cat 4-STROKE TOURING

Arctic Cat
#oem кодцена
1
0702-417
Dropcase, W/ Studs-ptd (inc. 2-5)
2
0623-317
Stud, 5/16-18 Ribbed-dropcase (5 Per Pack)
3
0607-025
O-ring, Stud (5 Per Pack)
4
0623-117
Bolt, Rib Neck-rdh 1/4-20x1.00 Z&y (5 Per Pack)
5
0123-523
Bolt, Rib Neck-rdh 5/16-18x.625 Z&y (5 Per Pack)
6
8050-247
Washer, Flat- 5/16 X .688 X .065 Z&y (10 Per Pack)
7
8040-426
Nut, Hex Lock-nyl 5/16-18 Z&y (20 Per Pack)
8
8011-139
Bolt, Crg 5/16-18x2.50 Gr1 Z&y (5 Per Pack)
9
8050-252
Washer, Flat- 5/16 X .875 X .063 Z&y (10 Per Pack)
10
8011-143
Bolt, Crg 5/16-18x3.50 Gr1 Z&y (5 Per Pack)
11
8002-136
Screw, Cap-hh 5/16-18 X1.75 G5 Z&y (5 Per Pack)
12
8051-242
Washer, Spr Lock-5/16 .314x.583x.078 Z&y (5 Per Pack)
13
0602-746
Housing, Screw-chain Adjuster
14
0602-645
Cover, Adjustor Hsg
15
0602-803
Пружина натяжителя
16
0623-526
Screw, Self Tap-tspnh 10-32x.375 Tr Z&y (6 Per Pack)
17
1602-536
Shaft, Chain Adjustor
18
0602-748
Screw, Chain Adjuster
19
0602-801
O-ring-cover-chain Adjuster (2-031)
20
0602-901
Spring, Compression-adj Screw
21
0602-804
Rivet, Btnhd 3/16 X 3/4 (10 Per Pack)
22
0623-541
Screw, Mach-hh 10-32 X .25 (5 Per Pack)
23
1602-222
Cover, Dropcase-ptd Blk-rev (dipstick)
24
0702-350
Вал переключения
25
0602-021
Уплотнительное кольцо
26
0623-542
Pin, Spring-3/16 X 7/8 Coiled Blk (5 Per Pack)
27
1602-151
Кожух
28
0623-081
Screw, Self Tap-phpnh 8-32x.31 F Z&y (6 Per Pack)
29
0602-085
Вилка
30
0602-437
O-ring, Dropcase Cover (2 Per Pack)
31
0623-293
Штепсель, Дренажный
32
1602-213
Кольцо (2 шт в упаковке)
33
0602-479
Пробка с магнитом
34
1602-107
Dipstick, Dropcase
35
1602-106
Tube, Dipstick - Weldment
36
0605-014
O-ring, Rubber (5 Per Pack)
37
0623-914
Screw, Self Tap Thd Lk-tspnh 10-24x.375 (6 Per Pack)
38
8053-242
Шайба (10 шт в упаковке)
39
8002-134
Screw, Cap-hh 5/16-18 X1.25 G5 Z&y (5 Per Pack)
40
0602-681
Гайка
41
8050-222
Washer, Flat- 1/4 X .734 X .063 Z&y (20 Per Pack)
42
0602-675
Рычаг ролика цепи
43
8002-045
Screw, Cap-hh 1/4-20 X 1.50 G5 Z&y (10 Per Pack)
44
0623-525
Washer, Flat-.5 X 1.01 Od Hardened (2 Per Pack)
45
0602-676
Ось
46
0702-129
Roller Assy-chain Tightener (inc. 47)
47
0602-383
Подшипник
48
0623-122
Nut , Flex Lock-thin 1/4-20 (5 Per Pack)
49
2602-078
Крепление
49
0702-553
Bracket, Chain Backing-weldt(0602-466) (international)
50
0623-765
Screw, Self Tap-hwh 5/16-18x.625 Tt Z&y (5 Per Pack)
51
0616-964
Защита
52
8011-137
Bolt, Crg 5/16-18x2.0 Gr1 Z&y (5 Per Pack)
53
8050-242
Шайба - 5/16 X .625 X .063 (10 шт в упаковке)
