Задняя подвеска ,задний амортизатор для снегоходов Arctic Cat ZR 800 (2001)

Москва и регионы России

Уважаемые покупатели оригинальных запчастей для техники ARCTIC CAT!
Сроки поставки запчастей марки ARCTIC CAT сейчас нормализовались и сравнимы со сроками поставки запчастей других американских марок. Однако у дилеров этой марки возможны сообщения про отказы и бэк-ордеры с большой задержкой – до месяца. Мы предупреждаем вас об этой особенности работы дилеров, приносим вам извинения за это неудобство и уверяем вас, что никак не можем повлиять на этот момент. Учитывайте пожалуйста это при заказе деталей!

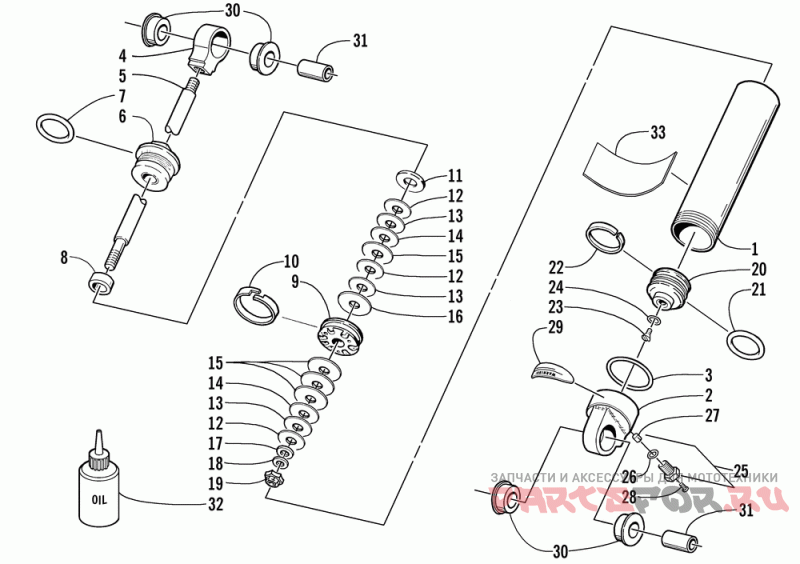

Задняя подвеска ,задний амортизатор

Arctic Cat ZR 800

Задняя подвеска ,задний амортизатор

#

oem код

название

цена

Shock, Rear Arm-assy (melonite)

Shock, Rear Arm-assy (melonite)

1

Body, Shock-1.625x7.330 (melonite)

Body, Shock-1.625x7.330 (melonite)

2

End Cap, Shock-no Lug

End Cap, Shock-no Lug

3

O-ring, End Cap

O-ring, End Cap

4

Eyelet, Shock - 1.000 Dia X 1.137 Lgth

Eyelet, Shock - 1.000 Dia X 1.137 Lgth

5

Shaft, Shock-.498x7.525

Shaft, Shock-.498x7.525

6

End Cap, Long - Assy (inc. 7)

End Cap, Long - Assy (inc. 7)

7

O-ring, Outer

O-ring, Outer

8

Spacer, Shaft-.530id X .75 Od X .25

Spacer, Shaft-.530id X .75 Od X .25

9

Piston, .041 Orifice

Piston, .041 Orifice

10

Strap, Piston - Teflon

Strap, Piston - Teflon

11

Washer, Top Out -1.125 X .094

Washer, Top Out -1.125 X .094

12

Valve, Shock- .900 Dia X .010

Valve, Shock- .900 Dia X .010

13

Valve, Shock-1.000 Dia X .010

Valve, Shock-1.000 Dia X .010

14

Valve, Shock-1.100 Dia X .010

Valve, Shock-1.100 Dia X .010

15

Valve, Shock-1.250 Dia X .010

Valve, Shock-1.250 Dia X .010

16

Valve, Shock-1.300 Dia X .008

Valve, Shock-1.300 Dia X .008

17

Valve, Shock- .800 Dia X .010

Valve, Shock- .800 Dia X .010

18

Washer, Backup - .620 X .094

Washer, Backup - .620 X .094

19

Nut, Flex - 3/8-24 Unf Z&y (5 Per Pack)

Nut, Flex - 3/8-24 Unf Z&y (5 Per Pack)

20

Piston, Floating-assy

Piston, Floating-assy

21

O-ring, Floating Piston

O-ring, Floating Piston

22

Strap, Floating Piston - Teflon

Strap, Floating Piston - Teflon

23

Screw, Mach - Hsfh 10-24x3/8 Blk

Screw, Mach - Hsfh 10-24x3/8 Blk

24

O-ring, -008 (3/16x5/16x1/16) (4 Per Pack)

O-ring, -008 (3/16x5/16x1/16) (4 Per Pack)

25

Valve, Pressure - Assy (inc. 26-27)

Valve, Pressure - Assy (inc. 26-27)

26

O-ring, Pressure Valve

O-ring, Pressure Valve

28

Screw, Mach - Hsbh 8-32x1/4 Ss

Screw, Mach - Hsbh 8-32x1/4 Ss

29

Decal, Shock-warning

Decal, Shock-warning

30

Сайлентдлок (отпуск. по 2 шт)

Сайлентдлок (отпуск. по 2 шт)

31

Гильза

Гильза

32

S/m Shock Oil-1 Quart (6 Per Pack)

S/m Shock Oil-1 Quart (6 Per Pack)

33

Decal, Shock-"act"

Decal, Shock-"act"

Shock, Rear Arm-assy (melonite)

Shock, Rear Arm-assy (melonite)

2

Eyelet, Shock - 1.000 Dia X 1.137 Lgth

Eyelet, Shock - 1.000 Dia X 1.137 Lgth

3

Shaft, Shock-.498x7.525

Shaft, Shock-.498x7.525

4

End Cap, Long - Assy (inc. 5)

End Cap, Long - Assy (inc. 5)

5

O-ring, Outer

O-ring, Outer

6

Spacer, Shaft (.530 Id X .75 Od X .375)

Spacer, Shaft (.530 Id X .75 Od X .375)

7

Piston, .041 Orifice

Piston, .041 Orifice

8

Strap, Piston - Teflon

Strap, Piston - Teflon

9

Washer, Top Out -1.125 X .094

Washer, Top Out -1.125 X .094

10

Valve, Shock- .900 Dia X .010

Valve, Shock- .900 Dia X .010

11

Valve, Shock-1.000 Dia X .010

Valve, Shock-1.000 Dia X .010

12

Valve, Shock-1.100 Dia X .010

Valve, Shock-1.100 Dia X .010

13

Valve, Shock-1.250 Dia X .010

Valve, Shock-1.250 Dia X .010

14

Valve, Shock-1.300 Dia X .006

Valve, Shock-1.300 Dia X .006

15

Valve, Shock- .800 Dia X .010

Valve, Shock- .800 Dia X .010

16

Washer, Backup - .620 X .094

Washer, Backup - .620 X .094

17

Nut, Flex - 3/8-24 Unf Z&y (5 Per Pack)

Nut, Flex - 3/8-24 Unf Z&y (5 Per Pack)

18

Piston, Floating-assy

Piston, Floating-assy

19

Strap, Floating Piston - Teflon

Strap, Floating Piston - Teflon

20

O-ring, Floating Piston

O-ring, Floating Piston

21

Screw, Mach - Hsfh 10-24x3/8 Blk

Screw, Mach - Hsfh 10-24x3/8 Blk

22

O-ring, -008 (3/16x5/16x1/16) (4 Per Pack)

O-ring, -008 (3/16x5/16x1/16) (4 Per Pack)

23

End Cap, Shock-no Lug

End Cap, Shock-no Lug

24

O-ring, End Cap

O-ring, End Cap

27

O-ring, Pressure Valve

O-ring, Pressure Valve
