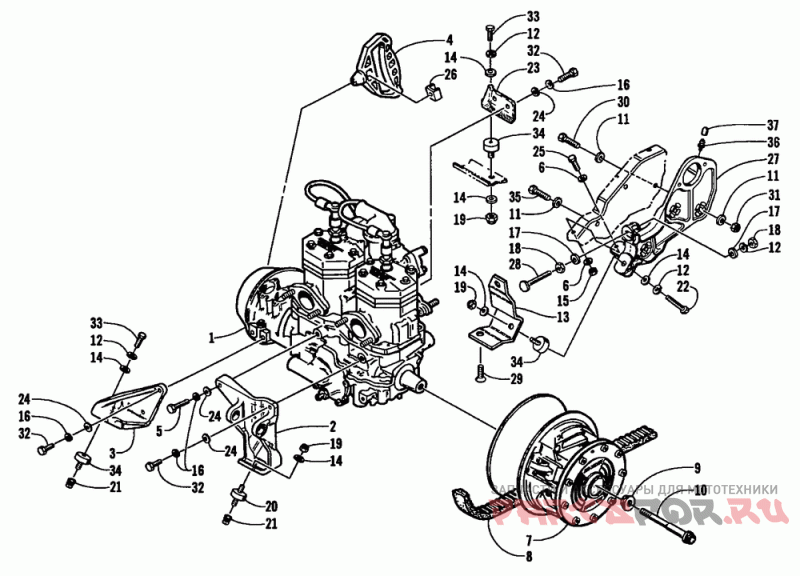

Опора двигателя и вариатор

Arctic Cat ZL 550

Arctic Cat
#oem кодцена
1
0662-283
Engine, 550 Lc Dual Carb2001
2
0708-113
Brkt, Eng Lh Front-mach Flex
2
0745-135
Brkt, Eng Lh Front-w/bush Flex (esr)
3
0708-114
Brkt, Eng Rh Front-mach Flex
4
0636-363
Рукоятка
5
8002-135
Screw, Cap-hh 5/16-18 X1.50 G5 Z&y (5 Per Pack)
6
8050-222
Washer, Flat- 1/4 X .734 X .063 Z&y (20 Per Pack)
7
0746-839
Kit, Drive Clutch-uncal-8.25 30mm/d
8
0627-020
Ремень
9
0623-210
Шайба
10
0623-804
Болт
11
0623-044
Wshr, Flat Hard .375 X.875 (5 Per Pack)
12
8051-277
Washer, Spr Lock-3/8 .377x.688x.115 Z&y (30 Per Pack)
13
0608-235
Brkt, Eng Mtg-lh Rear - Mach
14
8050-277
Washer, Flat- 3/8 X 1.000 X .063 Z&y (25 Per Pack)
15
8040-366
Nut, Hex Lock-nyl 1/4-20 Z&y (20 Per Pack)
16
8051-242
Washer, Spr Lock-5/16 .314x.583x.078 Z&y Qty 8 On Esr (5 Per Pack)
17
8050-282
Шайба 3/8 X 1.000 X .063 (10 шт в упаковке)
18
8042-516
Nut, 3/8-24 Hex-reg-g5 Z&y (5 Per Pack)
19
8040-486
Nut, Hex Lock-nyl 3/8-16 Z&y (5 Per Pack)
20
0608-118
Mount, Engine-double Male
21
0623-699
Insert, Threaded-.375 X 16 (als4-616-312) (4 Per Pack)
22
8002-226
Screw, Cap-hh 3/8-16 X1.75 G5 Z&y (5 Per Pack)
23
0708-070
Brkt, Eng Mtg-rh Rear-mach
24
8050-242
Washer, Flat- 5/16 X .625 X .063 Z&y Qty 8 On Esr (10 Per Pack)
25
8002-041
Screw, Cap-hh 1/4-20 X.875 G5 Z&y (10 Per Pack)
26
0606-885
Колпачек
27
0708-140
Brkt, Bearing Support-assy (inc. 36-37)
28
0608-299
Bumper, Torque-engine (2000)
29
0623-095
Screw, Mach-hsfh 1/2-13x1.00 Z&y (4 Per Pack)
30
0623-628
Screw, Cap-hh, 3/8x16-1 3/8 Zy (4 Per Pack)
31
0623-026
Nut, Flex-lock3/8-16 Unc (5 Per Pack)
32
8013-132
Screw, Cap-hh 5/16-18 X 1.00 Gr8 Z&y Qty 7 On Esr (5 Per Pack)
33
8002-222
Screw, Cap-hh 3/8-16 X1.00 G5 Z&y (10 Per Pack)
34
0608-217
Mount, Eng-50 Duro, .75 Stud, Full Washer
35
8002-225
Screw, Cap-hh 3/8-16 X1.50 G5 Z&y (5 Per Pack)
36
0623-899
Zerk, Grease Drive (5 Per Pack)
37
0623-904
Колпачек
