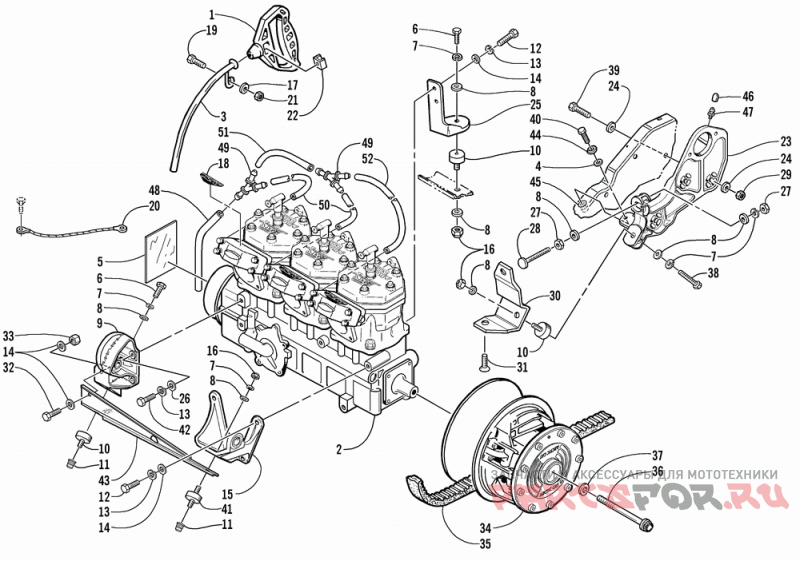

Опора двигателя и вариатор

Arctic Cat TRIPLE TOURING 600

Arctic Cat
#oem кодцена
1
0636-363
Рукоятка
3
0708-441
Guide, Recoil Rope-ptd Blk
4
8050-222
Washer, Flat- 1/4 X .734 X .063 Z&y (20 Per Pack)
5
0706-990
Foil 6 X12 (0619-727)
6
8002-222
Screw, Cap-hh 3/8-16 X1.00 G5 Z&y (10 Per Pack)
7
8051-277
Washer, Spr Lock-3/8 .377x.688x.115 Z&y (30 Per Pack)
8
8050-277
Washer, Flat- 3/8 X 1.000 X .063 Z&y (25 Per Pack)
9
0745-130
Brkt, Mtg-eng-rh Front Es W/bush
10
0608-251
Крепление двигателя
11
0623-699
Insert, Threaded-.375 X 16 (als4-616-312) (4 Per Pack)
12
8013-132
Screw, Cap-hh 5/16-18 X 1.00 Gr8 Z&y (5 Per Pack)
13
8051-242
Washer, Spr Lock-5/16 .314x.583x.078 Z&y (5 Per Pack)
14
8050-247
Washer, Flat- 5/16 X .688 X .065 Z&y (10 Per Pack)
15
0745-131
Brkt, Mtg-eng-lh Front Es W/bush
16
8040-486
Nut, Hex Lock-nyl 3/8-16 Z&y (5 Per Pack)
17
8050-217
Шайба 1/4 X .625 X .065 (отпускается по 10 шт)
18
3611-967
Decal, Apv
19
8002-045
Screw, Cap-hh 1/4-20 X 1.50 G5 Z&y (10 Per Pack)
20
0686-126
Провод заземления
21
8040-366
Nut, Hex Lock-nyl 1/4-20 Z&y (20 Per Pack)
22
0606-885
Колпачек
23
0708-144
Brkt, Bearing Support Assy (inc. 46-47)
24
0623-044
Wshr, Flat Hard .375 X.875 (5 Per Pack)
25
0708-020
Brkt, Eng Mtg-rh Rear-mach ('99 600 Zrt)
26
8050-252
Washer, Flat- 5/16 X .875 X .063 Z&y (10 Per Pack)
27
8042-516
Nut, 3/8-24 Hex-reg-g5 Z&y (5 Per Pack)
28
0608-299
Bumper, Torque-engine (2000)
29
0623-026
Nut, Flex-lock3/8-16 Unc (5 Per Pack)
30
0708-021
Brkt, Eng Mtg-lh Rear-mach ('99 600 Zrt)
31
0623-095
Screw, Mach-hsfh 1/2-13x1.00 Z&y (4 Per Pack)
32
8002-132
Screw, Cap-hh 5/16-18 X1.00 G5 Z&y (5 Per Pack)
33
8040-426
Nut, Hex Lock-nyl 5/16-18 Z&y (20 Per Pack)
34
0746-839
Kit, Drive Clutch-uncal-8.25 30mm/d
35
0627-020
Ремень
35
0627-014
Belt, Drive 12.2 Cd Cvt Comp. (international)
36
0623-804
Болт
37
0623-210
Шайба
38
8002-226
Screw, Cap-hh 3/8-16 X1.75 G5 Z&y (5 Per Pack)
39
0623-628
Screw, Cap-hh, 3/8x16-1 3/8 Zy (4 Per Pack)
40
8002-040
Screw, Cap-hh 1/4-20 X.75 G5 Z&y (5 Per Pack)
41
0608-250
Крепление двигателя
42
8013-133
Screw, Cap-hh 5/16-18 X 1.12 Gr8 Z&y (5 Per Pack)
43
0645-303
Brkt, Eng Crossbrace-600 Es
44
8051-217
Washer, Spr Lock-1/4 .252x.489x.077 Z&y (10 Per Pack)
45
0623-581
Insert, A L Series Al57-518-150 5/16-18
46
0623-904
Колпачек
47
0623-899
Zerk, Grease Drive (5 Per Pack)
48
0610-445
Hose, Drain-vev-12"
49
0670-875
Fitting, 'y' (1/2 X 1/2 X 1/2)
50
0610-429
H0se, Drain,vev, Tapered 5.5"
51
0610-446
Hose, Drain-vev-5.5"
52
0610-447
Hose, Drain,tapered-vev-11"
