Передний амортизатор для снегоходов Arctic Cat ZR 600 BLAIR MORGAN SIGNATURE EDITION (2000)

Москва и регионы России

Уважаемые покупатели оригинальных запчастей для техники ARCTIC CAT!
Сроки поставки запчастей марки ARCTIC CAT сейчас нормализовались и сравнимы со сроками поставки запчастей других американских марок. Однако у дилеров этой марки возможны сообщения про отказы и бэк-ордеры с большой задержкой – до месяца. Мы предупреждаем вас об этой особенности работы дилеров, приносим вам извинения за это неудобство и уверяем вас, что никак не можем повлиять на этот момент. Учитывайте пожалуйста это при заказе деталей!

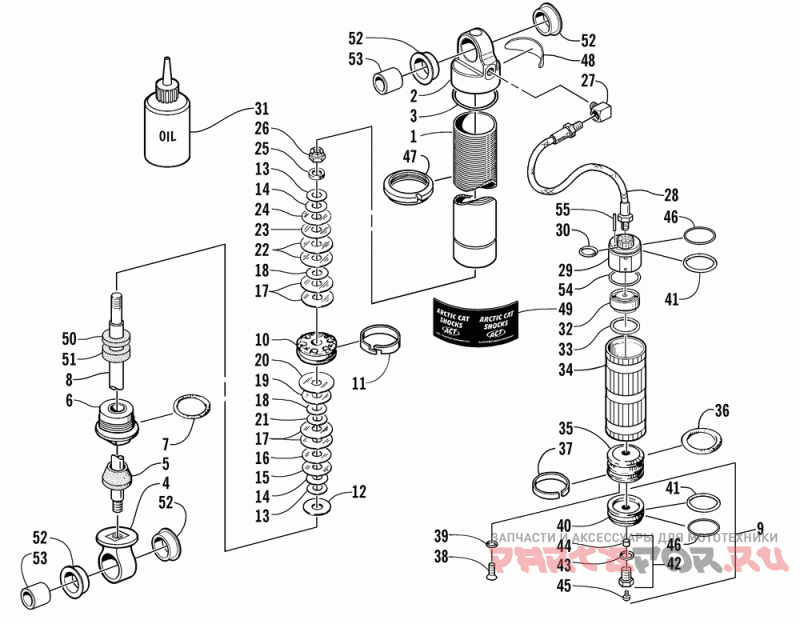

Передний амортизатор

Arctic Cat ZR 600 BLAIR MORGAN SIGNATURE EDITION

Передний амортизатор

#

oem код

название

цена

Shock, Ski-clicker-rh

Shock, Ski-clicker-rh

Shock, Ski-clicker-lh Used Both Left And Right

Shock, Ski-clicker-lh Used Both Left And Right

1

Body, Shock-8.900(melonite)

Body, Shock-8.900(melonite)

2

End Cap, Shock-clicker

End Cap, Shock-clicker

3

O-ring, End Cap

O-ring, End Cap

4

Eyelet, Shock-fr Susp(fox Only)

Eyelet, Shock-fr Susp(fox Only)

5

Bumper, Stop

Bumper, Stop

6

End Cap, Long - Assy (inc. 7)

End Cap, Long - Assy (inc. 7)

7

O-ring, Outer

O-ring, Outer

8

Shaft, Float-.498 Od X 9.850

Shaft, Float-.498 Od X 9.850

9

End Cap, Reservoir,assy (inc. 38-40 And 42-46)

End Cap, Reservoir,assy (inc. 38-40 And 42-46)

10

Piston, .093 Orifice

Piston, .093 Orifice

11

Strap, Piston - Teflon

Strap, Piston - Teflon

12

Washer, Top Out -1.125 X .094

Washer, Top Out -1.125 X .094

13

Valve, Shock- .800 Dia X .010

Valve, Shock- .800 Dia X .010

14

Valve, Shock- .900 Dia X .010

Valve, Shock- .900 Dia X .010

15

Valve, Shock-1.000 Dia X .008

Valve, Shock-1.000 Dia X .008

16

Valve, Shock-1.100 Dia X .008

Valve, Shock-1.100 Dia X .008

17

Valve, Shock-1.250 Dia X .006

Valve, Shock-1.250 Dia X .006

18

Valve, Shock-.900 Dia X .006

Valve, Shock-.900 Dia X .006

19

Valve, Shock-1.100 Dia X .006

Valve, Shock-1.100 Dia X .006

20

Valve, Shock-1.300 Dia X .006

Valve, Shock-1.300 Dia X .006

21

Valve, Shock- .700 Dia X .008

Valve, Shock- .700 Dia X .008

22

Valve, Shock-1.250 Dia X .008

Valve, Shock-1.250 Dia X .008

23

Valve, Shock-1.100 Dia X .010

Valve, Shock-1.100 Dia X .010

24

Valve, Shock-1.000 Dia X .010

Valve, Shock-1.000 Dia X .010

25

Washer, Backup - .620 X .094

Washer, Backup - .620 X .094

26

Nut, Flex - 3/8-24 Unf Z&y (5 Per Pack)

Nut, Flex - 3/8-24 Unf Z&y (5 Per Pack)

27

Elbow, Hose Fitting - Brass

Elbow, Hose Fitting - Brass

28

Hose, Res To Shock - 9.00"

Hose, Res To Shock - 9.00"

29

End Cap, Reservoir-1/8-27 Npt (inc. 30 And 41)

End Cap, Reservoir-1/8-27 Npt (inc. 30 And 41)

30

Ring, .070 X .801

Ring, .070 X .801

31

S/m Shock Oil-1 Quart (6 Per Pack)

S/m Shock Oil-1 Quart (6 Per Pack)

32

Oil Relief, 2 Port- Assy

Oil Relief, 2 Port- Assy

33

Circlip, Valve Body - .063 Dia X 1.38 Id

Circlip, Valve Body - .063 Dia X 1.38 Id

34

Body, Reservoir-4.75" Grooved

Body, Reservoir-4.75" Grooved

35

Piston, Floating - Reservior

Piston, Floating - Reservior

36

O-ring - .210 X 1.350

O-ring - .210 X 1.350

37

Strap, Piston - Floating - Teflon

Strap, Piston - Floating - Teflon

38

Screw, Mach - Hsfh 10-24x3/8 Blk

Screw, Mach - Hsfh 10-24x3/8 Blk

39

O-ring, -008 (3/16x5/16x1/16) (4 Per Pack)

O-ring, -008 (3/16x5/16x1/16) (4 Per Pack)

40

Endcap, Reservoir

Endcap, Reservoir

41

O-ring - .139 X 1.484

O-ring - .139 X 1.484

42

Valve, Pressure - Assy (inc. 43-44)

Valve, Pressure - Assy (inc. 43-44)

43

O-ring, Pressure Valve

O-ring, Pressure Valve

45

Screw, Mach - Hsbh 8-32x1/4 Ss

Screw, Mach - Hsbh 8-32x1/4 Ss

46

Circlip, Reservoir - .063 Dia X 1.77 Id

Circlip, Reservoir - .063 Dia X 1.77 Id

47

Nut, Spring Adjuster

Nut, Spring Adjuster

48

Decal, Shock-warning

Decal, Shock-warning

49

Decal, Shock-"act"

Decal, Shock-"act"

50

Spacer, Shaft-.530id X .75 Od X .25

Spacer, Shaft-.530id X .75 Od X .25

51

Spacer, Shaft (.530 Id X .75 Od X .375)

Spacer, Shaft (.530 Id X .75 Od X .375)

52

Втулка изолирующая

Втулка изолирующая

53

Sleeve, Eyelet - Inner - .790 Tlg

Sleeve, Eyelet - Inner - .790 Tlg

54

O-ring - .103 X 1.362

O-ring - .103 X 1.362

55

Pin, Indicator-knob

Pin, Indicator-knob
