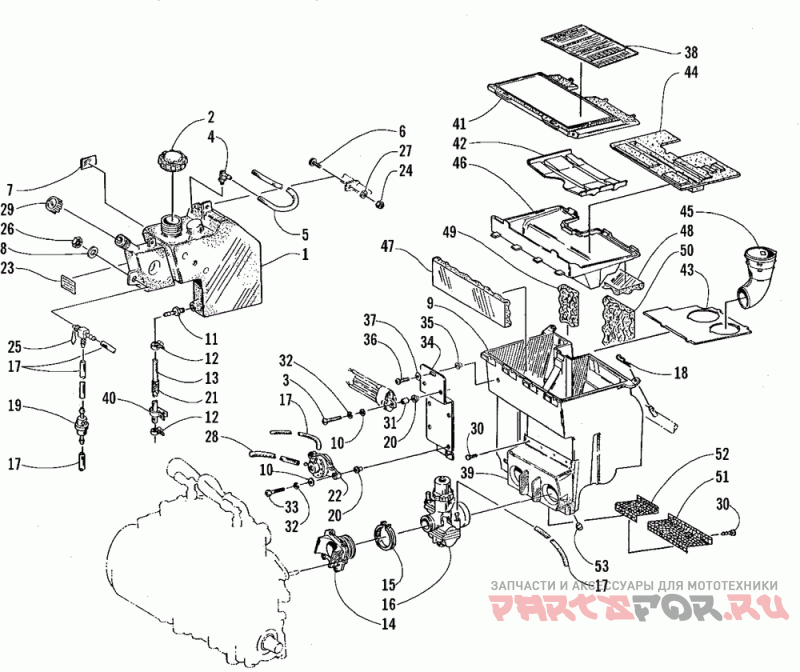

Intake, oil tank, and fuel pump

Arctic Cat ZR 440

Arctic Cat
#oem кодцена
1
0670-649
Tank, Oil/coolant-w/o Sensor Dual Nipple
2
0670-341
Cap, Oil Tank-w/seal
3
0623-082
Screw, Mach-phtrh #10-32x1.75 Z&y (5 Per Pack)
4
0670-242
Fitting, Vent-90 Degree (5 Per Pack)
5
0610-010
Hose, Vent-25 Ft
6
8007-580
Screw, Mach-crth 1/4-20x.75 G2 Z&y (10 Per Pack)
7
1611-564
Decal, Oil Tank
8
0623-288
Washer, Flat-9/16 Id
8
0623-288
Washer, Flat-9/16 Id
9
0770-258
Silencer, Air-mach (no Plenum)
9
0770-258
Silencer, Air-mach (no Plenum)
10
8050-157
Washer, Flat- #10 X .500 X .049 Z&y (20 Per Pack)
10
8050-157
Washer, Flat- #10 X .500 X .049 Z&y (20 Per Pack)
11
0670-117
Outlet, Oiltank-5/16 Tube
12
0124-045
Clamp, Hose - .402/.449 Dia (snp04) (10 Per Pack)
12
0124-045
Clamp, Hose - .402/.449 Dia (snp04) (10 Per Pack)
13
0610-016
Hose, Gas 1/4 X25'
13
0610-016
Hose, Gas 1/4 X25'
13
0610-015
Hose, Gas 1/4 X100'
13
0610-015
Hose, Gas 1/4 X100'
14
3004-962
Pipe Assy, Intake
15
3004-212
Clamp, Intake,m52
15
3004-212
Clamp, Intake,m52
16
0670-654
Carb-vm-34 (483)
16
0670-654
Carb-vm-34 (483)
17
0610-017
Hose, Gas 3/16 X100'
17
0610-017
Hose, Gas 3/16 X100'
17
0610-008
Hose, Gas Line-3/16x25'
17
0610-008
Hose, Gas Line-3/16x25'
18
0605-329
Шпилька
18
0605-329
Шпилька
19
0470-988
Filter, Fuel-inline (2 Per Pack)
20
0623-529
Insert, Al Series Als7-1032-225 (5 Per Pack)
20
0623-529
Insert, Al Series Als7-1032-225 (5 Per Pack)
21
0716-546
Loom, 6" (0619-342)-.413 Id
21
0716-546
Loom, 6" (0619-342)-.413 Id
22
0670-311
Fuel Pump-assy.(df52-152)
22
0670-311
Fuel Pump-assy.(df52-152)
23
0611-978
Decal, Fuel Shut-off Valve
23
0611-978
Decal, Fuel Shut-off Valve
24
8041-366
Nut, Hex Thin Lock-nyl 1/4-20 Z&y (10 Per Pack)
25
0670-144
Valve, Shut Off-fuel
25
0670-144
Valve, Shut Off-fuel
26
0623-287
Nut, Jam-9/16-18 Unf
26
0623-287
Nut, Jam-9/16-18 Unf
27
8050-217
Шайба 1/4 X .625 X .065 (отпускается по 10 шт)
27
8050-217
Шайба 1/4 X .625 X .065 (отпускается по 10 шт)
28
0610-007
Шланг
28
0610-007
Шланг
29
0670-035
Cap, Tank-water
29
0670-035
Cap, Tank-water
30
0623-165
Зажим 5/32 (отпускается по 5 шт)
31
0107-630
Spacer, Fuel Pump (2 Per Pack)
31
0107-630
Spacer, Fuel Pump (2 Per Pack)
32
8051-152
Washer, Spr Lock-#10 .193x.334x.047 Z&y (20 Per Pack)
32
8051-152
Washer, Spr Lock-#10 .193x.334x.047 Z&y (20 Per Pack)
33
0123-549
Screw, Mach-phtrh 10-32 X 1.00 Z&y (20 Per Pack)
33
0123-549
Screw, Mach-phtrh 10-32 X 1.00 Z&y (20 Per Pack)
34
0770-205
Plate, Mtg.-fab (eng. Comp0nents)
34
0770-205
Plate, Mtg.-fab (eng. Comp0nents)
35
0623-627
Insert, Threaded-ats2-420 (.25 X 20).620
35
0623-627
Insert, Threaded-ats2-420 (.25 X 20).620
36
8007-577
Screw, Mach-crth 1/4-20x.50 G2 Z&y (10 Per Pack)
36
8007-577
Screw, Mach-crth 1/4-20x.50 G2 Z&y (10 Per Pack)
37
8051-212
Washer, Spr Lock-1/4 .252x.487x.062 Z&y (20 Per Pack)
38
2611-715
Decal, Jet Chart 97 Zr 440
38
2611-715
Decal, Jet Chart 97 Zr 440
40
0123-269
Clamp, Cable, 11/16 Insul (5 Per Pack)
40
0123-269
Clamp, Cable, 11/16 Insul (5 Per Pack)
41
0616-973
Cover, Tool Box
41
0616-973
Cover, Tool Box
42
0670-601
Tray, Manual-tool Box
42
0670-601
Tray, Manual-tool Box
43
0617-241
Foam, Tool Box-upper
43
0617-241
Foam, Tool Box-upper
44
0617-241
Foam, Tool Box-upper
45
0670-617
Funnel, Air Silencer
45
0670-617
Funnel, Air Silencer
46
0616-972
Tool Box
46
0616-972
Tool Box
47
0617-254
Foam, Air Silencer-front
47
0617-254
Foam, Air Silencer-front
48
0617-251
Паралон
48
0617-251
Паралон
49
0617-252
Foam, Air Silencer-back Mag
49
0617-252
Foam, Air Silencer-back Mag
50
0617-253
Foam, Air Silencer-back Pto
51
0670-646
Screen, Air Silencer
51
0670-646
Screen, Air Silencer
52
0670-661
Screen, Air Silencer-mag
52
0670-661
Screen, Air Silencer-mag
53
1606-038
Bumper, Air Silencer (5 Per Pack)
53
1606-038
Bumper, Air Silencer (5 Per Pack)
