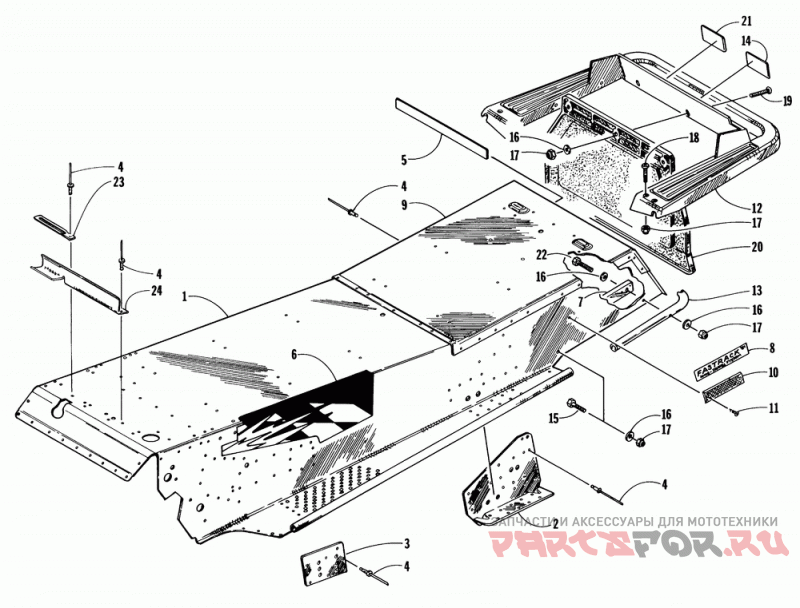

Шасси и задний бампер

Arctic Cat ZR 440

Arctic Cat
#oem кодцена
1
1718-714
Tunnel Assy-ptd Blk
2
2706-608
Bracket, Susp.rh-ptd Blk
2
2706-609
Bracket, Susp.lh-ptd Blk
3
2706-116
Plate, Body-reinforcement-ptd Blk
4
8060-504
Заклепка (цена за шт.(20шт в упаковке)
5
2611-742
Decal, Tunnel-rear-ett (green)
5
2611-742
Decal, Tunnel-rear-ett (green)
6
2611-612
Decal, Tunnel-rh ('97 580 Zr)
6
2611-612
Decal, Tunnel-rh ('97 580 Zr)
6
2611-613
Decal, Tunnel-lh ('97 580 Zr)
7
0604-885
Guide, Inner Tunnel Side Protector
7
0604-885
Guide, Inner Tunnel Side Protector
8
2611-741
Decal, "fastrack" - Tunnel
8
2611-741
Decal, "fastrack" - Tunnel
9
0616-728
Plate, End-rear Tunnel
9
0616-728
Plate, End-rear Tunnel
10
0606-029
Reflector, Red (4 Per Pack)
10
0606-029
Reflector, Red (4 Per Pack)
11
0623-269
Клипса - елочка (отпускается по 5 шт)
11
0623-269
Клипса - елочка (отпускается по 5 шт)
12
0716-481
Bumper, Rear-w/steel Insert (ett)
12
0716-481
Bumper, Rear-w/steel Insert (ett)
12
0616-730
Bumper, Rear-'ett'
13
2706-600
Insert, Bumper-ptd Blk
13
2706-600
Insert, Bumper-ptd Blk
14
1611-566
Decal, Warning-towing(english)
14
1611-566
Decal, Warning-towing(english)
15
8002-044
Screw, Cap-hh 1/4-20 X1.25 G5 Z&y (5 Per Pack)
15
8002-044
Screw, Cap-hh 1/4-20 X1.25 G5 Z&y (5 Per Pack)
16
8050-217
Шайба 1/4 X .625 X .065 (отпускается по 10 шт)
16
8050-217
Шайба 1/4 X .625 X .065 (отпускается по 10 шт)
17
8040-366
Nut, Hex Lock-nyl 1/4-20 Z&y (20 Per Pack)
17
8040-366
Nut, Hex Lock-nyl 1/4-20 Z&y (20 Per Pack)
18
8007-585
Screw, Mach-crth 1/4-20x1.50 G2 Z&y (5 Per Pack)
18
8007-585
Screw, Mach-crth 1/4-20x1.50 G2 Z&y (5 Per Pack)
19
8007-582
Screw, Mach-crth 1/4-20x1.0 G2 Z&y (5 Per Pack)
20
0616-612
Snowflap, 30 Deg.flip Up White
20
0616-612
Snowflap, 30 Deg.flip Up White
20
0616-613
Snowflap, Rev-white
20
0616-613
Snowflap, Rev-white
21
1611-567
Decal, Warning-towing(french)
21
1611-567
Decal, Warning-towing(french)
22
8002-048
Screw, Cap-hh 1/4-20 X2.25 G5 Z&y (5 Per Pack)
22
8002-048
Screw, Cap-hh 1/4-20 X2.25 G5 Z&y (5 Per Pack)
23
1623-984
Зажим (2 шт в упаковке)
23
1623-984
Зажим (2 шт в упаковке)
24
0607-488
Brckt, Main Harness Protector
24
0607-488
Brckt, Main Harness Protector
