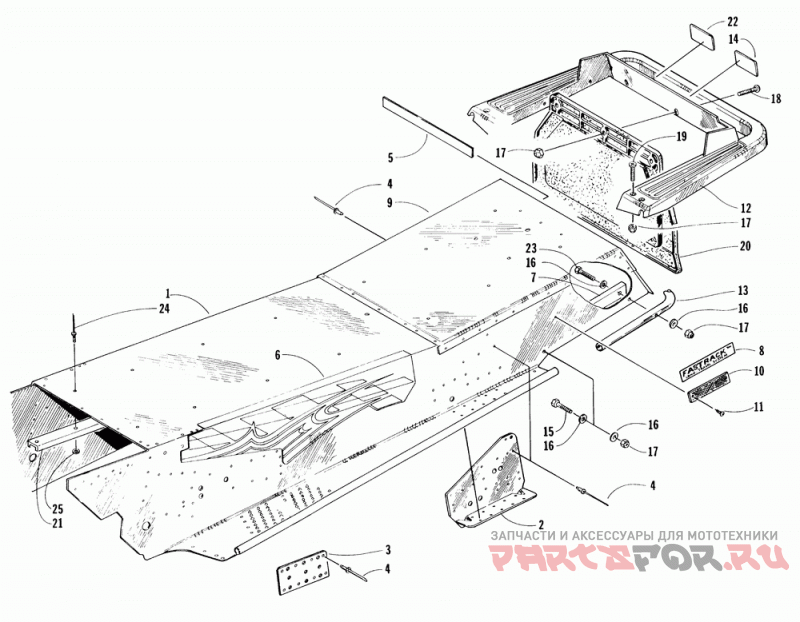

Шасси и задний бампер

Arctic Cat Z 440

Arctic Cat
#oem кодцена
1
0718-514
Tunnel Assy-97 440z
2
2706-608
Bracket, Susp.rh-ptd Blk
2
2706-609
Bracket, Susp.lh-ptd Blk
2
2706-609
Bracket, Susp.lh-ptd Blk
3
2706-111
Plate, Body-reinforcement-ptd Blk
4
8060-506
Rivet, Blind-dh Ss54 Blk (10 Per Pack)
4
8060-506
Rivet, Blind-dh Ss54 Blk (10 Per Pack)
5
2611-742
Decal, Tunnel-rear-ett (green)
5
2611-742
Decal, Tunnel-rear-ett (green)
6
2611-638
Decal, Tunnel-rh ('97z4a)
6
2611-638
Decal, Tunnel-rh ('97z4a)
6
2611-639
Decal, Tunnel-lh ('97z4a)
6
2611-639
Decal, Tunnel-lh ('97z4a)
7
0604-885
Guide, Inner Tunnel Side Protector
7
0604-885
Guide, Inner Tunnel Side Protector
8
2611-741
Decal, "fastrack" - Tunnel
9
1606-096
Plate, End-rear Tunnel (f/c)
9
1606-096
Plate, End-rear Tunnel (f/c)
10
0606-029
Reflector, Red (4 Per Pack)
10
0606-029
Reflector, Red (4 Per Pack)
11
0623-269
Клипса - елочка (отпускается по 5 шт)
11
0623-269
Клипса - елочка (отпускается по 5 шт)
12
0716-481
Bumper, Rear-w/steel Insert (ett)
12
0716-481
Bumper, Rear-w/steel Insert (ett)
12
0616-730
Bumper, Rear-'ett'
12
0616-730
Bumper, Rear-'ett'
13
2706-600
Insert, Bumper-ptd Blk
14
1611-566
Decal, Warning-towing(english)
14
1611-566
Decal, Warning-towing(english)
15
8002-044
Screw, Cap-hh 1/4-20 X1.25 G5 Z&y (5 Per Pack)
15
8002-044
Screw, Cap-hh 1/4-20 X1.25 G5 Z&y (5 Per Pack)
16
8050-217
Шайба 1/4 X .625 X .065 (отпускается по 10 шт)
16
8050-217
Шайба 1/4 X .625 X .065 (отпускается по 10 шт)
17
8040-366
Nut, Hex Lock-nyl 1/4-20 Z&y (20 Per Pack)
17
8040-366
Nut, Hex Lock-nyl 1/4-20 Z&y (20 Per Pack)
18
8007-585
Screw, Mach-crth 1/4-20x1.50 G2 Z&y (5 Per Pack)
18
8007-585
Screw, Mach-crth 1/4-20x1.50 G2 Z&y (5 Per Pack)
19
8007-582
Screw, Mach-crth 1/4-20x1.0 G2 Z&y (5 Per Pack)
20
0616-612
Snowflap, 30 Deg.flip Up White
20
0616-612
Snowflap, 30 Deg.flip Up White
20
0616-613
Snowflap, Rev-white
20
0616-613
Snowflap, Rev-white
21
0716-577
Wearstrip, Tunnel-ett
21
0716-577
Wearstrip, Tunnel-ett
22
1611-567
Decal, Warning-towing(french)
22
1611-567
Decal, Warning-towing(french)
23
8002-048
Screw, Cap-hh 1/4-20 X2.25 G5 Z&y (5 Per Pack)
23
8002-048
Screw, Cap-hh 1/4-20 X2.25 G5 Z&y (5 Per Pack)
24
8060-510
Заклепка (10 шт в упак.)
25
0123-149
Шайба 11/64x3/8x.030 (4 шт в упаковке)
25
0123-149
Шайба 11/64x3/8x.030 (4 шт в упаковке)
