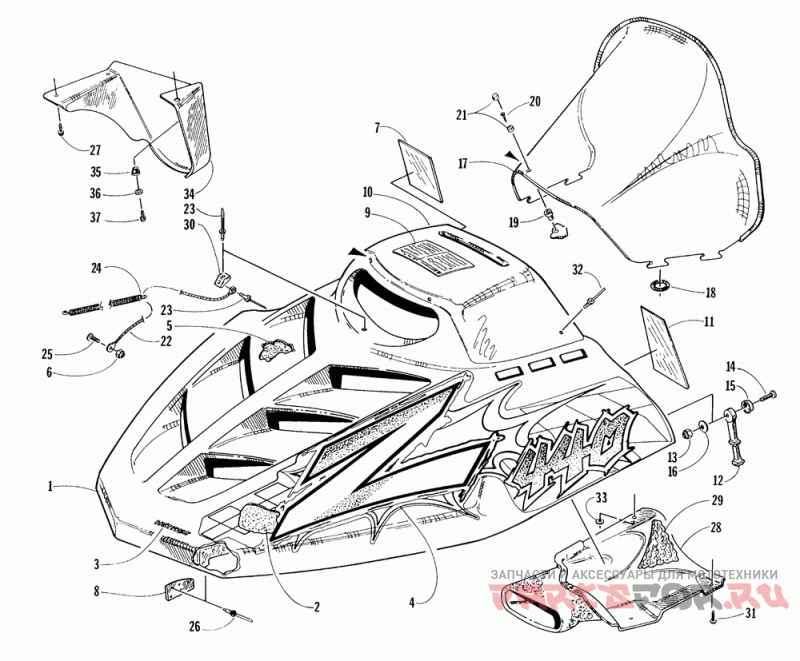

Капот и ветровое стекло

Arctic Cat Z 440

Arctic Cat
#oem кодцена
1
0718-323
Hood W/o Decal95 440z
1
0718-513
Hood W/decals-97 440z
1
0718-513
Hood W/decals-97 440z
2
0717-082
Foam, Hood-rh
2
0717-082
Foam, Hood-rh
2
0717-075
Foam, Hood Lh
2
0717-075
Foam, Hood Lh
3
1611-756
Decal, Arctic Cat-hot Green
3
1611-756
Decal, Arctic Cat-hot Green
4
2611-636
Decal, Hood-rh ('97z4a)
4
2611-636
Decal, Hood-rh ('97z4a)
4
2611-637
Decal, Hood-lh ('97z4a)
5
0717-060
Foam, Hood-center-rh
5
0717-060
Foam, Hood-center-rh
5
0717-061
Foam, Hood-center-lh
5
0717-061
Foam, Hood-center-lh
6
0123-430
Nut, Flex, Lock 10-32 (5 Per Pack)
6
0123-430
Nut, Flex, Lock 10-32 (5 Per Pack)
7
2611-176
Decal, Caution-engine/battery
7
2611-176
Decal, Caution-engine/battery
8
0616-438
Brkt, Hood Hinge
8
0616-438
Brkt, Hood Hinge
9
1611-575
Decal, Warning-hood
10
0717-062
Foam, Hood-upper-rh
10
0717-062
Foam, Hood-upper-rh
11
2611-163
Decal, Warning-brake Eng/french
11
2611-163
Decal, Warning-brake Eng/french
12
0115-306
Cord, Latch (2 Per Pack)
12
0115-306
Cord, Latch (2 Per Pack)
13
8040-366
Nut, Hex Lock-nyl 1/4-20 Z&y (20 Per Pack)
13
8040-366
Nut, Hex Lock-nyl 1/4-20 Z&y (20 Per Pack)
14
8009-614
Screw, Mach-crph 1/4-20x1.25 G2 Z&blk (15 Per Pack)
14
8009-614
Screw, Mach-crph 1/4-20x1.25 G2 Z&blk (15 Per Pack)
15
0623-261
Washer, Cup-1/4 X 1-blk (2 Per Pack)
16
8050-217
Шайба 1/4 X .625 X .065 (отпускается по 10 шт)
16
8050-217
Шайба 1/4 X .625 X .065 (отпускается по 10 шт)
17
0616-399
Windshield, Formed
17
0616-399
Windshield, Formed
18
0616-032
O-ring-windshield (1 I.d.) (6 Per Pack)
18
0616-032
O-ring-windshield (1 I.d.) (6 Per Pack)
19
0123-010
Nut, Expansion 10-32 (20 Per Pack)
19
0123-010
Nut, Expansion 10-32 (20 Per Pack)
20
0623-121
Винт (отпускается по 10шт)
20
0623-121
Винт (отпускается по 10шт)
21
0124-054
Крышка с шайбой (10 шт в упаковке)
22
0616-614
Cable, Hood-36.5 (.20 Eyelet Both Ends)
22
0616-614
Cable, Hood-36.5 (.20 Eyelet Both Ends)
23
8061-708
Заклепка -черная (отпуск по 10 шт )
23
8061-708
Заклепка -черная (отпуск по 10 шт )
24
0123-510
Spring, Extn-harness 4.50
24
0123-510
Spring, Extn-harness 4.50
25
0623-413
Screw, Mach-phtrh-10-32x 1/2-z&y (5 Per Pack)
25
0623-413
Screw, Mach-phtrh-10-32x 1/2-z&y (5 Per Pack)
26
8061-706
Rivet, Blind-lf Ss64 Black (10 Per Pack)
26
8061-706
Rivet, Blind-lf Ss64 Black (10 Per Pack)
27
0623-505
Screw, Self Tap-hwh #6x5/8 Typ A Z&y (5 Per Pack)
30
1606-088
Brkt, Hood Cable
30
1606-088
Brkt, Hood Cable
31
0623-551
Screw, Self Tap-hwh #6x.50-type Ab Z&y (5 Per Pack)
31
0623-551
Screw, Self Tap-hwh #6x.50-type Ab Z&y (5 Per Pack)
32
8060-430
Rivet, Blind-dh Aa58 Blk (10 Per Pack)
32
8060-430
Rivet, Blind-dh Aa58 Blk (10 Per Pack)
33
0123-149
Шайба 11/64x3/8x.030 (4 шт в упаковке)
33
0123-149
Шайба 11/64x3/8x.030 (4 шт в упаковке)
35
0616-802
Spacer, Rubber
35
0616-802
Spacer, Rubber
36
0623-604
Washer, Flat-.156 X.562 X.040
37
0623-257
Screw, Self Tap-hwh #8x1/2 Type A (10 Per Pack)
37
0623-257
Screw, Self Tap-hwh #8x1/2 Type A (10 Per Pack)
