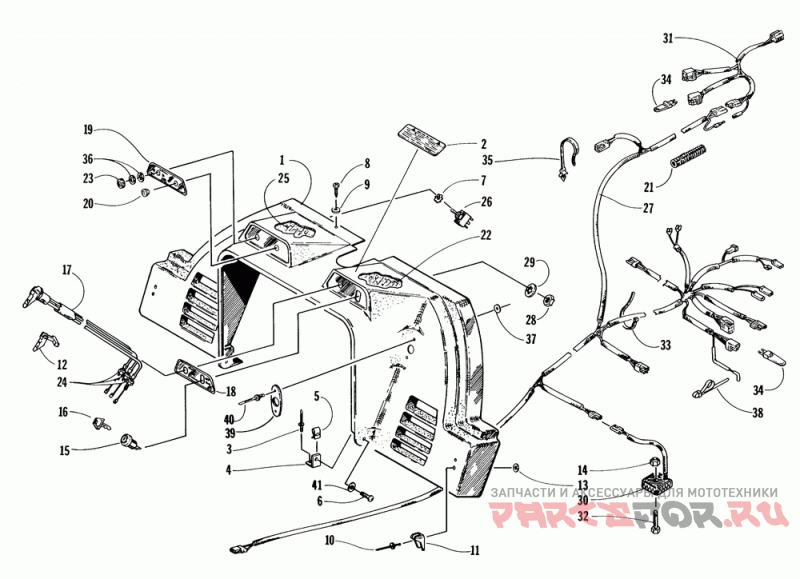

Консоли, переключатели, электропроводка в сборе

Arctic Cat THUNDERCAT

Arctic Cat
#oem кодцена
1
1606-018
Console-carb (zrt Hood)
2
1611-408
Decal, Warning-seating Cap.
2
1611-408
Decal, Warning-seating Cap.
3
8060-484
Rivet, Blind-dh Ss53 Zinc (10 Per Pack)
3
8060-484
Rivet, Blind-dh Ss53 Zinc (10 Per Pack)
4
0106-956
Bracket, Mounting Console
4
0106-956
Bracket, Mounting Console
5
0123-539
Nut, Speed 1/4-20 U-type (5 Per Pack)
5
0123-539
Nut, Speed 1/4-20 U-type (5 Per Pack)
6
8007-580
Screw, Mach-crth 1/4-20x.75 G2 Z&y (10 Per Pack)
6
8007-580
Screw, Mach-crth 1/4-20x.75 G2 Z&y (10 Per Pack)
7
0123-985
Washer, Int Lock .472 (5 Per Pack)
7
0123-985
Washer, Int Lock .472 (5 Per Pack)
8
0623-378
Screw, Self Tap-phtrh #8-32 X .50 Ab Z&y (5 Per Pack)
8
0623-378
Screw, Self Tap-phtrh #8-32 X .50 Ab Z&y (5 Per Pack)
9
8050-157
Washer, Flat- #10 X .500 X .049 Z&y (20 Per Pack)
9
8050-157
Washer, Flat- #10 X .500 X .049 Z&y (20 Per Pack)
10
8060-428
Rivet, Blind-dh Aa56 Blk (10 Per Pack)
10
8060-428
Rivet, Blind-dh Aa56 Blk (10 Per Pack)
11
0115-307
Latch Cup, Hood (2 Per Pack)
11
0115-307
Latch Cup, Hood (2 Per Pack)
12
0638-630
Lever Kit, Choke
12
0638-630
Lever Kit, Choke
13
0123-149
Шайба 11/64x3/8x.030 (4 шт в упаковке)
14
8040-366
Nut, Hex Lock-nyl 1/4-20 Z&y (20 Per Pack)
14
8040-366
Nut, Hex Lock-nyl 1/4-20 Z&y (20 Per Pack)
15
0609-081
Switch , Ign. (w/0 Key)
15
0609-081
Switch , Ign. (w/0 Key)
16
0609-412
Key, Ign. Switch
16
0609-412
Key, Ign. Switch
17
0687-115
Cable, Choke- Vm36/38 Triple
17
0687-115
Cable, Choke- Vm36/38 Triple
18
2611-722
Decal, Console Switch-rh (carb)
18
2611-722
Decal, Console Switch-rh (carb)
19
2611-723
Decal, Console Switch-lh
19
2611-723
Decal, Console Switch-lh
20
0623-593
Plug, Hole 1/2-steel
20
0623-593
Plug, Hole 1/2-steel
21
0706-994
Loom Ctl 20 , Harness Protector
21
0706-994
Loom Ctl 20 , Harness Protector
22
0617-202
Foam, Console-rh
22
0617-202
Foam, Console-rh
23
0609-220
Nut, Knurled-black (brass) (3 Per Pack)
23
0609-220
Nut, Knurled-black (brass) (3 Per Pack)
24
0623-464
Гайка
24
0623-464
Гайка
25
0617-203
Oam, Console-lh
25
0617-203
Oam, Console-lh
26
0609-187
Switch, Toggle-dpdt (thumb/hand Warmer)
26
0609-187
Switch, Toggle-dpdt (thumb/hand Warmer)
27
0686-337
Harness, Main Wiring
28
0123-900
Гайка
28
0123-900
Гайка
29
0123-899
Washer, Ignition (5 Per Pack)
29
0123-899
Washer, Ignition (5 Per Pack)
30
0630-001
Regulator, Voltage
30
0630-001
Regulator, Voltage
31
0686-332
Harness, Hood-hdlht & Instr
31
0686-332
Harness, Hood-hdlht & Instr
32
8002-045
Screw, Cap-hh 1/4-20 X 1.50 G5 Z&y (10 Per Pack)
32
8002-045
Screw, Cap-hh 1/4-20 X 1.50 G5 Z&y (10 Per Pack)
33
0123-788
Стяжка кабеля (отпуск.по 10 шт)
33
0123-788
Стяжка кабеля (отпуск.по 10 шт)
34
0609-069
Posistor, Wiring Optional
34
0609-069
Posistor, Wiring Optional
35
0623-164
Tie, Cable-push Mount (5 Per Pack)
35
0623-164
Tie, Cable-push Mount (5 Per Pack)
36
0623-153
Washer, Nylon 1/2x5/8-.030 (3 Per Pack)
36
0623-153
Washer, Nylon 1/2x5/8-.030 (3 Per Pack)
37
0123-802
Шайба (отпускается по 4 шт)
37
0123-802
Шайба (отпускается по 4 шт)
38
0623-285
Cable Tie, Double Loop (5 Per Pack)
38
0623-285
Cable Tie, Double Loop (5 Per Pack)
39
0606-211
Plate, Recoil
39
0606-211
Plate, Recoil
40
8060-708
Заклепка (10 шт в упаковке)
40
8060-708
Заклепка (10 шт в упаковке)
41
8050-222
Washer, Flat- 1/4 X .734 X .063 Z&y (20 Per Pack)
