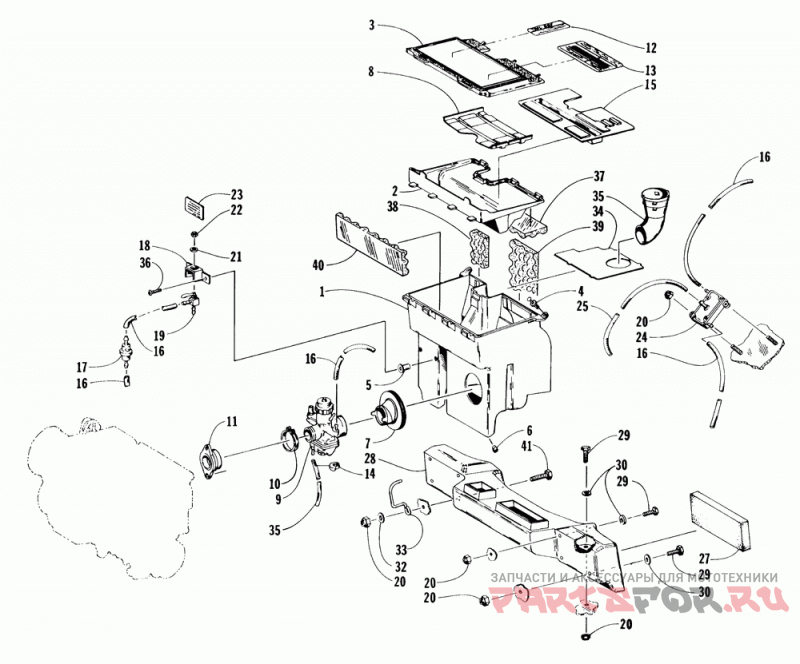

Carburetor, fuel pump and air silencer

Arctic Cat PUMA 2-UP

Arctic Cat
#oem кодцена
2
0616-972
Tool Box
3
0616-973
Cover, Tool Box
3
0616-973
Cover, Tool Box
4
0623-362
Клепка пластик (5 шт в упаковке)
4
0623-362
Клепка пластик (5 шт в упаковке)
5
0123-010
Nut, Expansion 10-32 (20 Per Pack)
5
0123-010
Nut, Expansion 10-32 (20 Per Pack)
6
1606-038
Bumper, Air Silencer (5 Per Pack)
6
1606-038
Bumper, Air Silencer (5 Per Pack)
7
1670-405
Boot, Air Silencer
7
1670-405
Boot, Air Silencer
8
0670-601
Tray, Manual-tool Box
8
0670-601
Tray, Manual-tool Box
9
0670-687
Carb, Vm32-294 (97 Puma)
9
0670-687
Carb, Vm32-294 (97 Puma)
10
0109-709
Хомут (32/34 Mm)
10
0109-709
Хомут (32/34 Mm)
11
0115-544
Flange, Carb Vm32-454
11
0115-544
Flange, Carb Vm32-454
12
2611-765
Decal, Toolbox
12
2611-765
Decal, Toolbox
13
2611-780
Decal, Jet Chart-97 Jag/jag Dlx
13
2611-780
Decal, Jet Chart-97 Jag/jag Dlx
14
0623-652
Зажим
15
0617-241
Foam, Tool Box-upper
15
0617-241
Foam, Tool Box-upper
16
0610-017
Hose, Gas 3/16 X100'
16
0610-017
Hose, Gas 3/16 X100'
16
0610-008
Hose, Gas Line-3/16x25'
16
0610-008
Hose, Gas Line-3/16x25'
17
0470-988
Filter, Fuel-inline (2 Per Pack)
17
0470-988
Filter, Fuel-inline (2 Per Pack)
18
0670-284
Bracket, Mounting-fuel Shut-off Valve
18
0670-284
Bracket, Mounting-fuel Shut-off Valve
19
0670-144
Valve, Shut Off-fuel
19
0670-144
Valve, Shut Off-fuel
20
8040-366
Nut, Hex Lock-nyl 1/4-20 Z&y (20 Per Pack)
20
8040-366
Nut, Hex Lock-nyl 1/4-20 Z&y (20 Per Pack)
21
0623-288
Washer, Flat-9/16 Id
21
0623-288
Washer, Flat-9/16 Id
22
0623-287
Nut, Jam-9/16-18 Unf
22
0623-287
Nut, Jam-9/16-18 Unf
23
0611-978
Decal, Fuel Shut-off Valve
23
0611-978
Decal, Fuel Shut-off Valve
24
0115-481
Fuel Pump (df44-227)
24
0115-481
Fuel Pump (df44-227)
25
0610-007
Шланг
26
0610-015
Hose, Gas 1/4 X100'
26
0610-015
Hose, Gas 1/4 X100'
26
0610-016
Hose, Gas 1/4 X25'
26
0610-016
Hose, Gas 1/4 X25'
27
0617-255
Air Intake-lh
27
0617-255
Air Intake-lh
27
0617-247
Поролон
27
0617-247
Поролон
28
0670-578
Plenum, Air Silencer
28
0670-578
Plenum, Air Silencer
29
8002-040
Screw, Cap-hh 1/4-20 X.75 G5 Z&y (5 Per Pack)
29
8002-040
Screw, Cap-hh 1/4-20 X.75 G5 Z&y (5 Per Pack)
30
8050-222
Washer, Flat- 1/4 X .734 X .063 Z&y (20 Per Pack)
30
8050-222
Washer, Flat- 1/4 X .734 X .063 Z&y (20 Per Pack)
31
8002-042
Screw, Cap-hh 1/4-20 X1.00 G5 Z&y (10 Per Pack)
31
8002-042
Screw, Cap-hh 1/4-20 X1.00 G5 Z&y (10 Per Pack)
32
8050-212
Шайба 1/4 X .500 X .063 (отпуск по 10 шт)
32
8050-212
Шайба 1/4 X .500 X .063 (отпуск по 10 шт)
33
0645-235
Brkt, Harness-efi
33
0645-235
Brkt, Harness-efi
34
0670-618
Baffle, Air Silencer
34
0670-618
Baffle, Air Silencer
35
0670-617
Funnel, Air Silencer
35
0670-617
Funnel, Air Silencer
36
0623-121
Винт (отпускается по 10шт)
36
0623-121
Винт (отпускается по 10шт)
37
0617-251
Паралон
38
0617-252
Foam, Air Silencer-back Mag
38
0617-252
Foam, Air Silencer-back Mag
39
0617-253
Foam, Air Silencer-back Pto
39
0617-253
Foam, Air Silencer-back Pto
40
0617-254
Foam, Air Silencer-front
40
0617-254
Foam, Air Silencer-front
