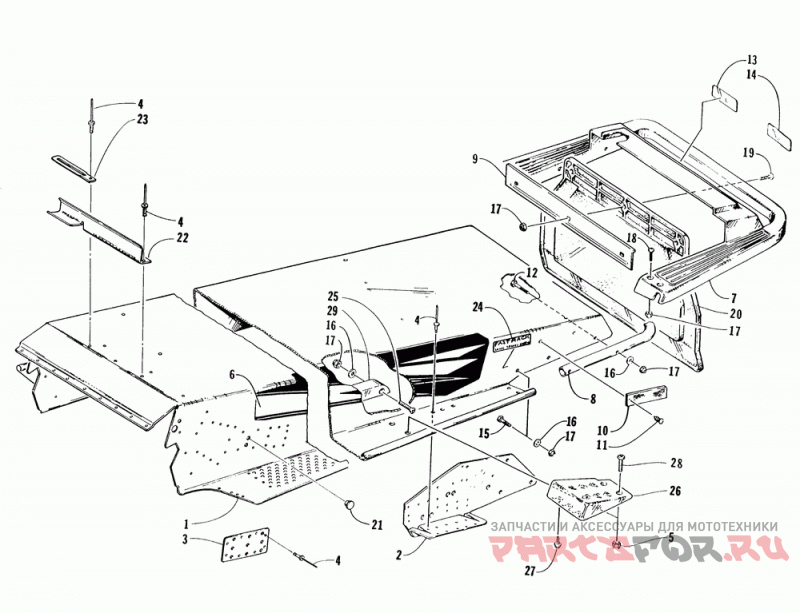

Шасси и задний бампер

Arctic Cat PUMA 2-UP

Arctic Cat
#oem кодцена
1
0718-545
Tunnel-assy 97 Pu/2-up
2
0716-564
Brkt, Suspension-weldmt-rh
2
0716-565
Brkt, Suspension-weldmt-lh
2
0716-565
Brkt, Suspension-weldmt-lh
3
2706-111
Plate, Body-reinforcement-ptd Blk
4
8060-504
Заклепка (цена за шт.(20шт в упаковке)
4
8060-504
Заклепка (цена за шт.(20шт в упаковке)
5
8041-366
Nut, Hex Thin Lock-nyl 1/4-20 Z&y (10 Per Pack)
5
8041-366
Nut, Hex Thin Lock-nyl 1/4-20 Z&y (10 Per Pack)
6
2611-690
Наклейка прав.
6
2611-690
Наклейка прав.
6
2611-691
Наклейка лев.
6
2611-691
Наклейка лев.
7
0716-223
Bumper W/steel Insert
7
0716-223
Bumper W/steel Insert
7
0616-731
Bumper, Rear
7
0616-731
Bumper, Rear
8
2706-600
Insert, Bumper-ptd Blk
8
2706-600
Insert, Bumper-ptd Blk
9
0106-914
Cap, Snowflap
9
0106-914
Cap, Snowflap
10
0606-029
Reflector, Red (4 Per Pack)
10
0606-029
Reflector, Red (4 Per Pack)
11
0623-269
Клипса - елочка (отпускается по 5 шт)
11
0623-269
Клипса - елочка (отпускается по 5 шт)
12
8002-045
Screw, Cap-hh 1/4-20 X 1.50 G5 Z&y (10 Per Pack)
12
8002-045
Screw, Cap-hh 1/4-20 X 1.50 G5 Z&y (10 Per Pack)
13
1611-567
Decal, Warning-towing(french)
13
1611-567
Decal, Warning-towing(french)
14
1611-566
Decal, Warning-towing(english)
15
8002-040
Screw, Cap-hh 1/4-20 X.75 G5 Z&y (5 Per Pack)
15
8002-040
Screw, Cap-hh 1/4-20 X.75 G5 Z&y (5 Per Pack)
16
8050-217
Шайба 1/4 X .625 X .065 (отпускается по 10 шт)
16
8050-217
Шайба 1/4 X .625 X .065 (отпускается по 10 шт)
17
8040-366
Nut, Hex Lock-nyl 1/4-20 Z&y (20 Per Pack)
17
8040-366
Nut, Hex Lock-nyl 1/4-20 Z&y (20 Per Pack)
18
8009-585
Screw, Mach-crph 1/4-20x1.50 G2 Z&y
18
8009-585
Screw, Mach-crph 1/4-20x1.50 G2 Z&y
19
8007-582
Screw, Mach-crth 1/4-20x1.0 G2 Z&y (5 Per Pack)
19
8007-582
Screw, Mach-crth 1/4-20x1.0 G2 Z&y (5 Per Pack)
20
0616-612
Snowflap, 30 Deg.flip Up White
20
0616-612
Snowflap, 30 Deg.flip Up White
20
1606-331
Snowflap, Reverse- Fastrack
20
1606-331
Snowflap, Reverse- Fastrack
21
0606-983
Plug, Body 3/8-black (2 Per Pack)
21
0606-983
Plug, Body 3/8-black (2 Per Pack)
22
0607-488
Brckt, Main Harness Protector
22
0607-488
Brckt, Main Harness Protector
23
1623-984
Зажим (2 шт в упаковке)
23
1623-984
Зажим (2 шт в упаковке)
24
2611-741
Decal, "fastrack" - Tunnel
24
2611-741
Decal, "fastrack" - Tunnel
25
0623-268
Screw, Flat Head-1/4-20 X 1.50 (5 Per Pack)
25
0623-268
Screw, Flat Head-1/4-20 X 1.50 (5 Per Pack)
26
0606-698
Footrest, Rear-r.h.
26
0606-698
Footrest, Rear-r.h.
26
0606-699
Footrest, Rear-l.h.
27
0623-057
Screw, Self Tap-hwh #10 X 3/4 (5 Per Pack)
27
0623-057
Screw, Self Tap-hwh #10 X 3/4 (5 Per Pack)
28
8007-577
Screw, Mach-crth 1/4-20x.50 G2 Z&y (10 Per Pack)
28
8007-577
Screw, Mach-crth 1/4-20x.50 G2 Z&y (10 Per Pack)
29
0604-497
Guide, Track
29
0604-497
Guide, Track
