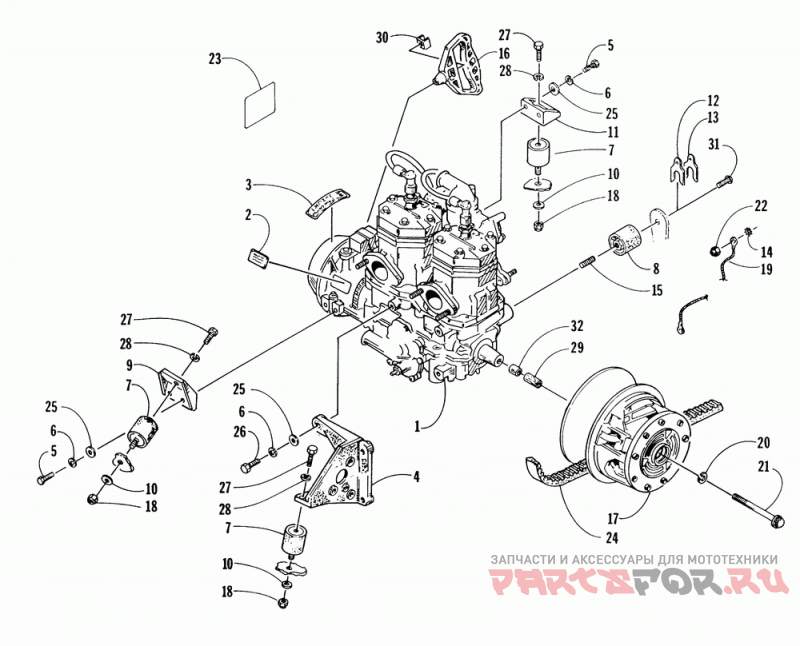

Опора двигателя и вариатор

Arctic Cat POWDER SPECIAL EFI

Arctic Cat
#oem кодцена
1
0662-122
Engine, 580 W/o Efi Cp(ad58l2)(from-211)
1
0662-122
Engine, 580 W/o Efi Cp(ad58l2)(from-211)
2
2611-607
Decal, Engine P/n 0662-183
2
2611-607
Decal, Engine P/n 0662-183
3
1611-588
Decal, Engine-suzuki
3
1611-588
Decal, Engine-suzuki
4
0745-057
Bracket, Offset Starter-mach'd/prod
5
8012-131
Screw, Cap-hhnlp 5/16-18x.875 G5 Z&y (4 Per Pack)
5
8012-131
Screw, Cap-hhnlp 5/16-18x.875 G5 Z&y (4 Per Pack)
6
8051-242
Washer, Spr Lock-5/16 .314x.583x.078 Z&y (5 Per Pack)
6
8051-242
Washer, Spr Lock-5/16 .314x.583x.078 Z&y (5 Per Pack)
7
0608-061
Крепление двигателя
7
0608-061
Крепление двигателя
8
0608-075
Mount, Engine-rear (90duro)
8
0608-075
Mount, Engine-rear (90duro)
9
0608-045
Brkt, Eng Mtg-rh Front
9
0608-045
Brkt, Eng Mtg-rh Front
10
8050-277
Washer, Flat- 3/8 X 1.000 X .063 Z&y (25 Per Pack)
10
8050-277
Washer, Flat- 3/8 X 1.000 X .063 Z&y (25 Per Pack)
11
0608-096
Brkt, Eng Mtg-rh Rear
11
0608-096
Brkt, Eng Mtg-rh Rear
12
0608-055
Shim, Eng Mtg-.030 Thk Ct132
12
0608-055
Shim, Eng Mtg-.030 Thk Ct132
13
0608-056
Shim, Eng Mtg-.060 Thk Ct116
13
0608-056
Shim, Eng Mtg-.060 Thk Ct116
14
8053-212
Шайба (отпуск.по 5 шт)
14
8053-212
Шайба (отпуск.по 5 шт)
15
0623-281
Stud, Motor Mount 1/2-13 X 1.12
15
0623-281
Stud, Motor Mount 1/2-13 X 1.12
16
0636-363
Рукоятка
16
0636-363
Рукоятка
17
0746-839
Kit, Drive Clutch-uncal-8.25 30mm/d
17
0746-839
Kit, Drive Clutch-uncal-8.25 30mm/d
18
8040-486
Nut, Hex Lock-nyl 3/8-16 Z&y (5 Per Pack)
18
8040-486
Nut, Hex Lock-nyl 3/8-16 Z&y (5 Per Pack)
19
0686-099
Harness, Engine Ground
19
0686-099
Harness, Engine Ground
20
0623-210
Шайба
20
0623-210
Шайба
21
0623-206
Bolt, Counterbore-1/2-20x5.5
21
0623-206
Bolt, Counterbore-1/2-20x5.5
22
8040-366
Nut, Hex Lock-nyl 1/4-20 Z&y (20 Per Pack)
22
8040-366
Nut, Hex Lock-nyl 1/4-20 Z&y (20 Per Pack)
23
2611-641
Decal, Info.-normally Open Circuts
23
2611-641
Decal, Info.-normally Open Circuts
24
0627-010
Drive Belt, Cvt-12.2
24
0627-010
Drive Belt, Cvt-12.2
25
8050-242
Шайба - 5/16 X .625 X .063 (10 шт в упаковке)
25
8050-242
Шайба - 5/16 X .625 X .063 (10 шт в упаковке)
26
8012-132
Screw, Cap-hhnlp 5/16-18x1.0 G5 Z&y (5 Per Pack)
27
8002-222
Screw, Cap-hh 3/8-16 X1.00 G5 Z&y (10 Per Pack)
27
8002-222
Screw, Cap-hh 3/8-16 X1.00 G5 Z&y (10 Per Pack)
28
8051-277
Washer, Spr Lock-3/8 .377x.688x.115 Z&y (30 Per Pack)
28
8051-277
Washer, Spr Lock-3/8 .377x.688x.115 Z&y (30 Per Pack)
29
0646-106
Spacer, Urethane-clutch
29
0646-106
Spacer, Urethane-clutch
30
0606-885
Колпачек
30
0606-885
Колпачек
31
0623-295
Screw, Cap-hsbh 1/2-13x3/4 Z&y
31
0623-295
Screw, Cap-hsbh 1/2-13x3/4 Z&y
32
0646-107
Spacer, Aluminum-clutch
32
0646-107
Spacer, Aluminum-clutch
