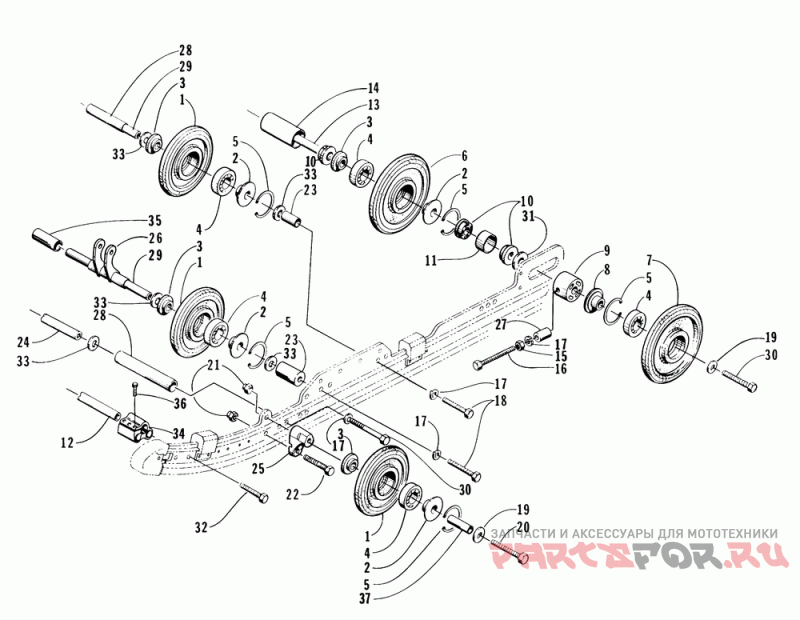

Вспомогательные колеса

Arctic Cat ZR 440

Arctic Cat
#oem кодцена
1
0604-459
Колесо
2
1604-773
Insert, 5/8 Bore X 1.580 Od (2 Per Pack)
3
1604-772
Insert, 5/8 Bore X 2 Od (short) (2 Per Pack)
3
1604-772
Insert, 5/8 Bore X 2 Od (short) (2 Per Pack)
4
0107-598
Подшипник
4
0107-598
Подшипник
5
0123-798
Ring Internal Retaining (5 Per Pack)
5
0123-798
Ring Internal Retaining (5 Per Pack)
6
0604-210
Wheel, Idler-center
6
0604-210
Wheel, Idler-center
7
0604-969
Wheel, Idler-outer
7
0604-969
Wheel, Idler-outer
8
1604-774
Insert, 5/8 Bore X 2" (long) (2 Per Pack)
8
1604-774
Insert, 5/8 Bore X 2" (long) (2 Per Pack)
9
0604-936
Изолирующая втулка
9
0604-936
Изолирующая втулка
10
0604-968
Изолирующая втулка,распорки задн.колес
10
0604-968
Изолирующая втулка,распорки задн.колес
11
0604-937
Spacer, Rear Wheel -outer
11
0604-937
Spacer, Rear Wheel -outer
12
0604-426
Ось
12
0604-426
Ось
13
0604-208
Axle, Rear Wheel
13
0604-208
Axle, Rear Wheel
14
1704-466
Spacer, Rear Wheel-ptd Blk
14
1704-466
Spacer, Rear Wheel-ptd Blk
15
8042-486
Гайка 3/8-16 (20 шт в упаковк.)
15
8042-486
Гайка 3/8-16 (20 шт в упаковк.)
16
0623-123
Винт 3/8-16x5 (5 шт в упаковке)
17
8051-277
Washer, Spr Lock-3/8 .377x.688x.115 Z&y (30 Per Pack)
17
8051-277
Washer, Spr Lock-3/8 .377x.688x.115 Z&y (30 Per Pack)
18
8002-223
Screw, Cap-hh 3/8-16 X1.125 G5 Z&y (5 Per Pack)
18
8002-223
Screw, Cap-hh 3/8-16 X1.125 G5 Z&y (5 Per Pack)
19
0123-570
Washer, Flat .390x1.38x.134 (10 Per Pack)
19
0123-570
Washer, Flat .390x1.38x.134 (10 Per Pack)
20
8002-233
Screw, Cap-hh 3/8-16 X3.50 G5 Z&y (5 Per Pack)
20
8002-233
Screw, Cap-hh 3/8-16 X3.50 G5 Z&y (5 Per Pack)
21
8040-486
Nut, Hex Lock-nyl 3/8-16 Z&y (5 Per Pack)
21
8040-486
Nut, Hex Lock-nyl 3/8-16 Z&y (5 Per Pack)
22
8002-224
Screw, Cap-hh 3/8-16 X1.25 G5 Z&y (5 Per Pack)
22
8002-224
Screw, Cap-hh 3/8-16 X1.25 G5 Z&y (5 Per Pack)
23
0604-916
Spacer, Alum -aux Wheel -1.45"
23
0604-916
Spacer, Alum -aux Wheel -1.45"
24
0604-914
Axle, Xbrc (stl) -.625x8.750 (3/8-16)
24
0604-914
Axle, Xbrc (stl) -.625x8.750 (3/8-16)
25
0604-911
Block, Mtg-idler Wheel
25
0604-911
Block, Mtg-idler Wheel
26
0704-589
Опора заднего амортизатора
26
0704-589
Опора заднего амортизатора
27
0604-298
Втулка распорная
27
0604-298
Втулка распорная
28
0604-922
Spacer, Alum-aux.wheel-3.78"
30
8012-224
Screw, Cap-hhnlp 3/8-16x1.25 G5 Z&y (4 Per Pack)
30
8012-224
Screw, Cap-hhnlp 3/8-16x1.25 G5 Z&y (4 Per Pack)
31
0623-220
Washer, Flat .625idx1.50odx.109 (5 Per Pack)
31
0623-220
Washer, Flat .625idx1.50odx.109 (5 Per Pack)
32
8012-132
Screw, Cap-hhnlp 5/16-18x1.0 G5 Z&y (5 Per Pack)
32
8012-132
Screw, Cap-hhnlp 5/16-18x1.0 G5 Z&y (5 Per Pack)
33
0123-439
Wshr, Flat 21/32x1-1/8x.048 Z&y (10 Per Pack)
33
0123-439
Wshr, Flat 21/32x1-1/8x.048 Z&y (10 Per Pack)
34
0704-302
Clamp, Shock Reservoir
34
0704-302
Clamp, Shock Reservoir
35
0603-105
Втулка
35
0603-105
Втулка
36
8005-401
Screw, Cap-hsh 10-24x.875 Z&y (4 Per Pack)
36
8005-401
Screw, Cap-hsh 10-24x.875 Z&y (4 Per Pack)
37
0603-030
Axle, Serrated (2 Per Pack)
37
0603-030
Axle, Serrated (2 Per Pack)
